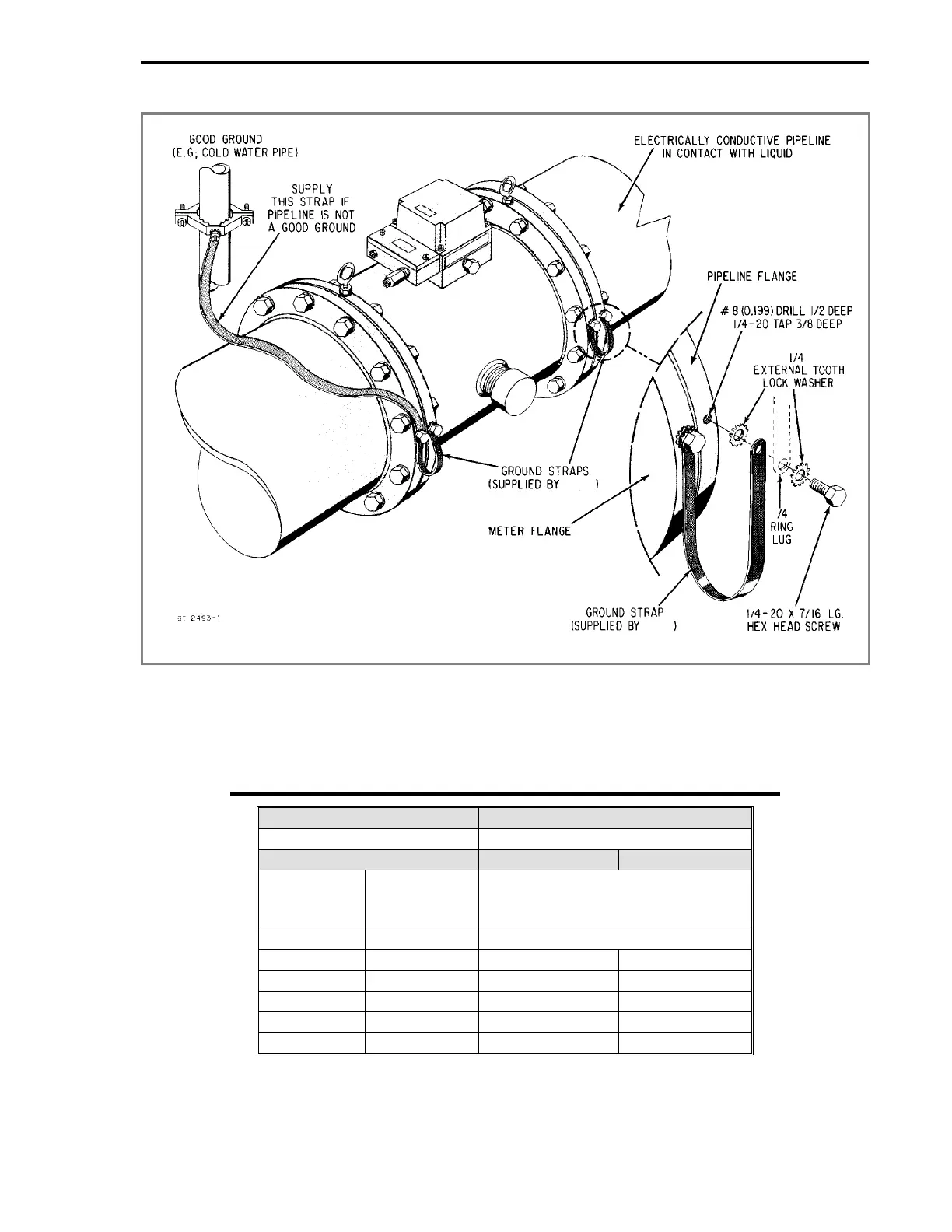

FIGURE 2-5. GROUNDING PROCEDURE; NON-INSULATED PIPELINE
(Note that the illustration is for references purposes only and that the meter shown may not repre-
sent the actual model described in this instruction manual)
TABLE 2-2. PROTECTOR PLATE AND GROUNDING RING PART NUMBERS
FLANGE RATING (ANSI) ANSI CLASS 150
RING MATERIAL 304 SS
GASKET MATERIAL NEOPRENE TEFLON

FLANGE
SIZE
(Inches)
BASIC PART
NUMBER
PART NUMBER SUFFIX*
GROUNDING RING
14 644B009 U09 U10
16 644B009 U11 U12
18 644B009 U13 U14
20 644B009 U15 U16
24 644B009 U17 U18
* Add suffix to basic part number to complete the part number, e.g., 644B009U11 for a 16" 304
stainless steel grounding ring with a NEOPRENE gasket.
