10 PCS100 AVC-40-1B Roof Kit Assembly Instruction
1.2 Roof Kit assembly
The roof kit is shipped separately, and it must be assembled on site. Roof kit includes:
Item
Quantity
Top Hat 800Wx800D
1
Top Hat support brackets
4
Bolt M16x45
4
Screw M8x16 Hex Torx
4
Washer Schnor M16
4
Washer Flat HDG M16xDia 34mm 3mm thick
4
Table 1-1: PCS100 AVC-40 1B Roof kit parts

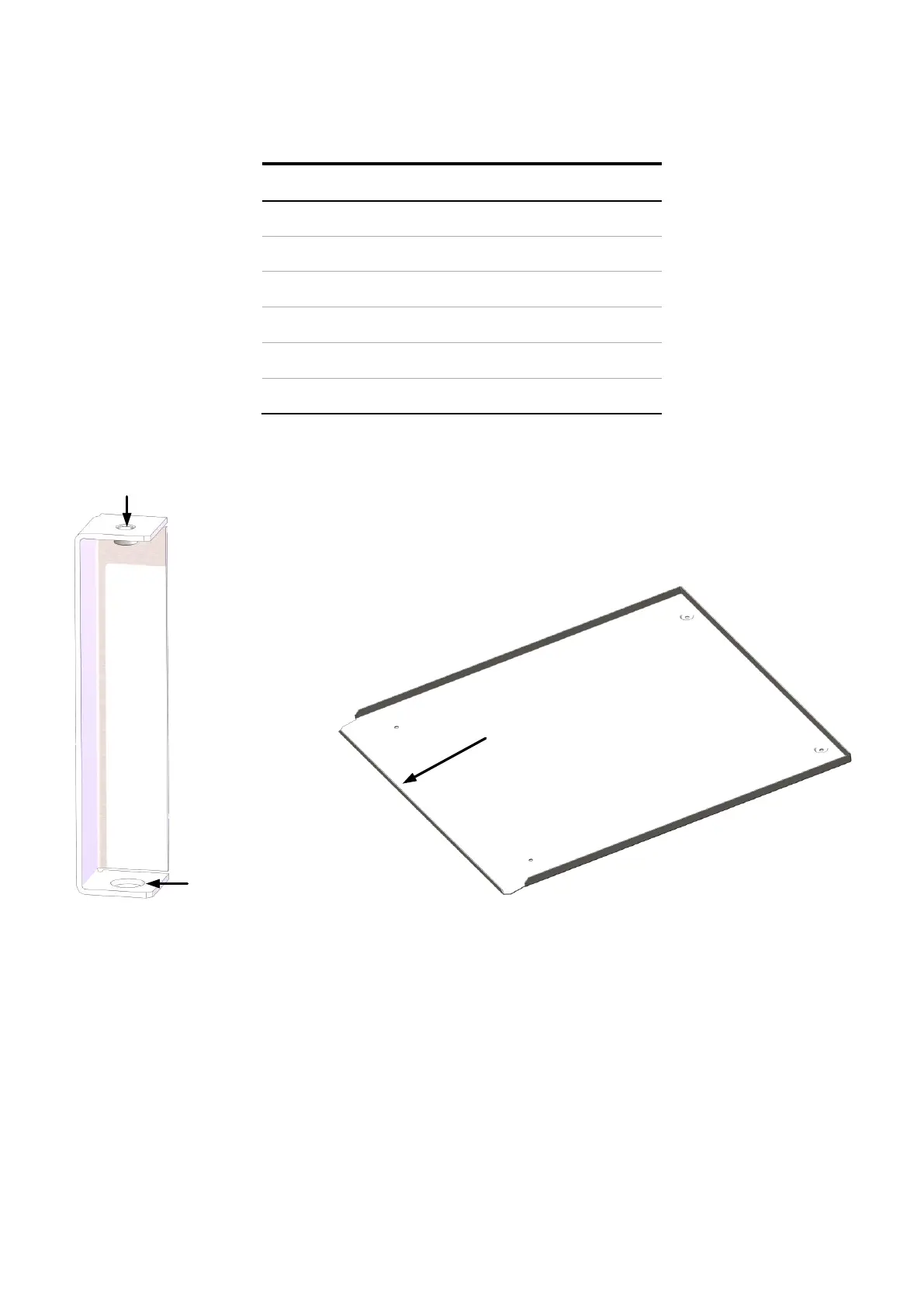

To The Top Hat(Screw M8x 16 Hex Torx )
To The Front of PCS100 AVC-40-1B
To The PCS100 AVC-40-1B (Bolt M16x45 )
(a) Hat Support Bracket (b) Top Hat
Figure 1-2: PCS100 AVC-40 UL Roof Kit (a): Hat support brackets; (b) Top hat.
