… 4 Design and function
Principle of operation
The PositionMaster EDP300 is an electronically configurable positioner with communication capabilities designed for mounting on
pneumatic linear or rotary actuators.
Fully automatic determination of the control parameters and adaptation to the positioner allow for considerable time savings as well
as optimum control behavior.
5 Product identification
Name plate
Supply press: 0,14 ... 1 MP a
Input: analog 4 - 20 mA
Ambient temperature: -40°C ... 85°C
Output: double acting
Loss of electr. Supply: fall safe
IP65 HART
Options:
Analog feedback output
Digital feedback output
Universal analog input
Safety shut down
Pressure sensors
Electr. limit switch
Mech. limit switch, low
Mech. limit switch, high
Contactless pos. Sensor
H
Slot1 Slot2
XX
X
1
9
j
k
3
4
5
6
7
l
m
n
o
p
8
2
ABB Automation
Schillerstrasse 72
D - 32425 Minden
Made in Germany
1 Full type designation
2 Order code
3 Serial number
4 Special version
5 Hardware revision / Software revision
6 Date of manufacture
7 Explosion protection
8 Manufacturer
9 Supply air pressure
j Input signal
k Ambient temperature range
l Output
m Safety function de-energized
n Communication protocol
o IP rating
p Options

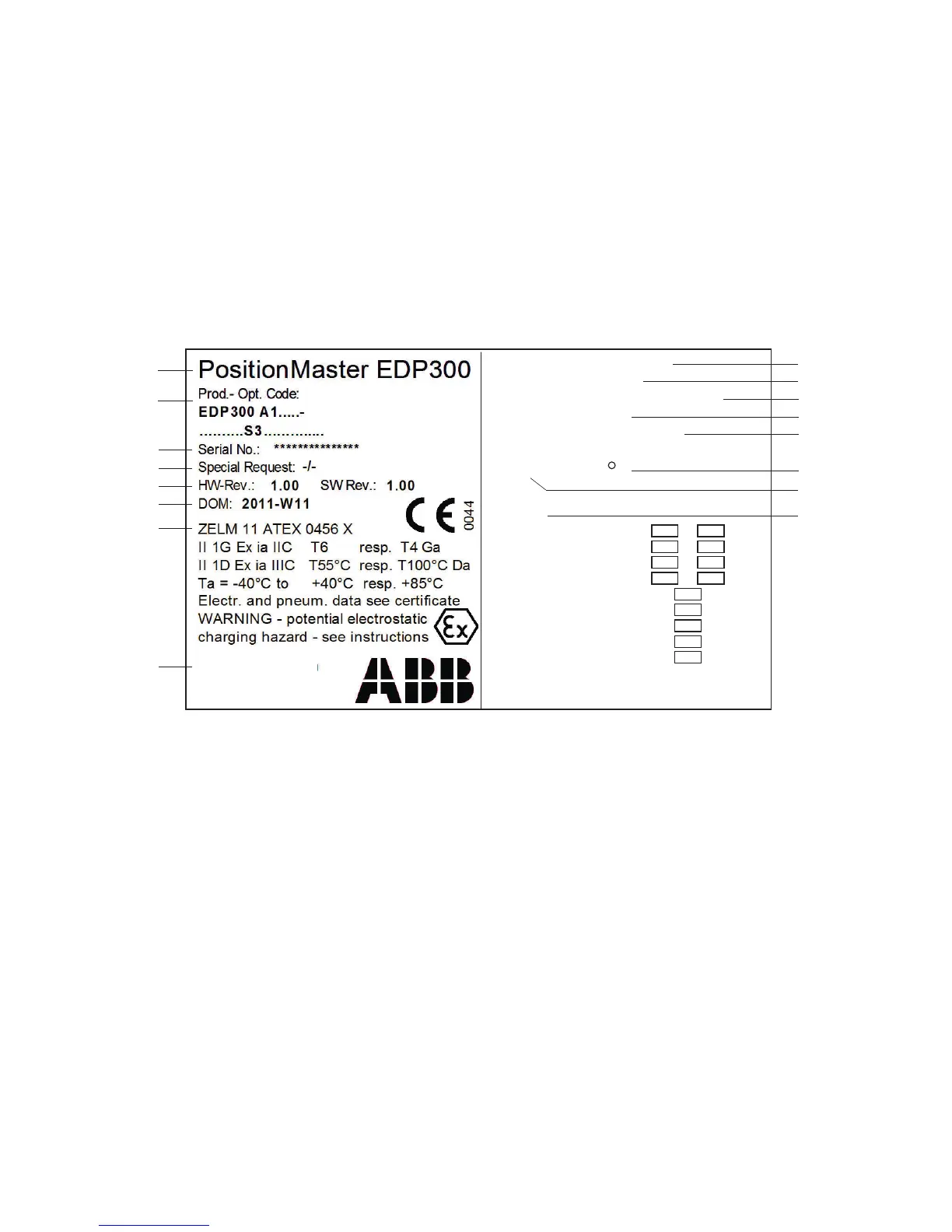

Figure 2: Name plate (example)
Note
The name plates displayed are examples. The device identification plates affixed to the device can differ from this representation.
