ABB PSR User Manual

10 Softstarters | 1SFC132005C0201, rev.F

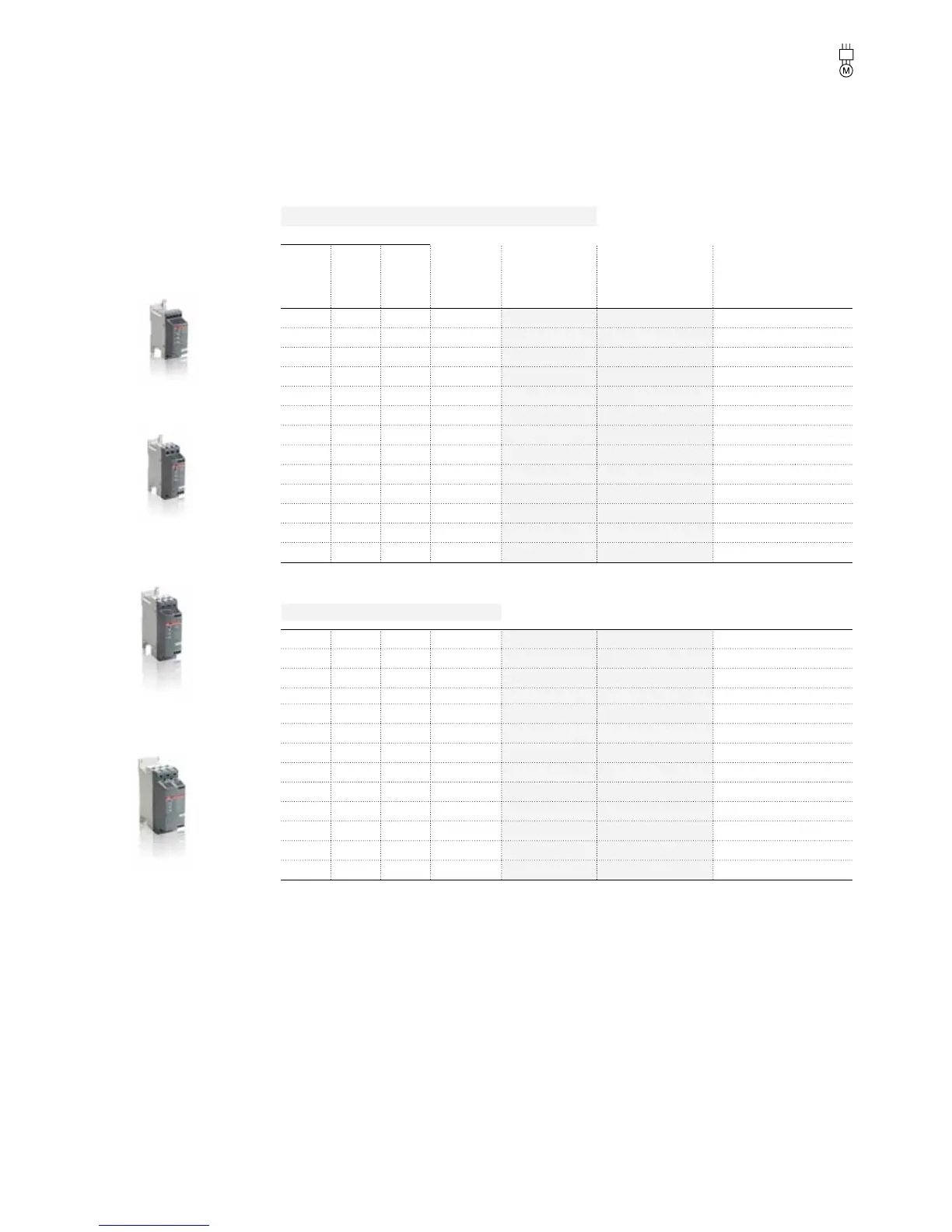

PSR – The compact range
Ordering details
PSR3 ... PSR105
Rated operational voltage U
e
, 208-600 V AC
Rated control supply voltage, U
s
, 100 - 240 V AC
Motor power
230 V
P
e
kW
400 V
P
e
kW
500 V
P
e
kW
IEC
Max rated
operational
current I
e
A
Type Order code
Weight
kg
1 piece
0.75 1.5 2.2 3.9 PSR3-600-70 1SFA896 103 R7000 0.450
1.5 3 4 6.8 PSR6-600-70 1SFA896 104 R7000 0.450
2.2 4 4 9 PSR9-600-70 1SFA896 105 R7000 0.450
3 5.5 5.5 12 PSR12-600-70 1SFA896 106 R7000 0.450
4 7.5 7.5 16 PSR16-600-70 1SFA896 107 R7000 0.450
5.5 11 15 25 PSR25-600-70 1SFA896 108 R7000 0.650
7.5 15 18.5 30 PSR30-600-70 1SFA896 109 R7000 0.650
7.5 18.5 22 37 PSR37-600-70 1SFA896 110 R7000 1.000
11 22 30 45 PSR45-600-70 1SFA896 111 R7000 1.000
15 30 37 60 PSR60-600-70 1SFA896 112 R7000 2.200
22 37 45 72 PSR72-600-70 1SFA896 113 R7000 2.270
22 45 55 85 PSR85-600-70 1SFA896 114 R7000 2.270
30 55 55 105 PSR105-600-70 1SFA896 115 R7000 2.270
Rated operational voltage U
e
, 208-600 V AC
Rated control supply voltage, U
s
, 24 V DC
0.75 1.5 2.2 3.9 PSR3-600-81 1SFA896 103 R8100 0.450
1.5 3 4 6.8 PSR6-600-81 1SFA896 104 R8100 0.450
2.2 4 4 9 PSR9-600-81 1SFA896 105 R8100 0.450
3 5.5 5.5 12 PSR12-600-81 1SFA896 106 R8100 0.450
4 7.5 7.5 16 PSR16-600-81 1SFA896 107 R8100 0.450
5.5 11 15 25 PSR25-600-81 1SFA896 108 R8100 0.650
7.5 15 18.5 30 PSR30-600-81 1SFA896 109 R8100 0.650
7.5 18.5 22 37 PSR37-600-81 1SFA896 110 R8100 1.000
11 22 30 45 PSR45-600-81 1SFA896 111 R8100 1.000
15 30 37 60 PSR60-600-81 1SFA896 112 R8100 2.200
22 37 45 72 PSR72-600-81 1SFA896 113 R8100 2.270
22 45 55 85 PSR85-600-81 1SFA896 114 R8100 2.270
30 55 55 105 PSR105-600-81 1SFA896 115 R8100 2.270
PSR3 ... PSR16
1SFC132137F0001
PSR25 ... PSR30
1SFC132136F0001
PSR37 ... PSR45
1SFC132135F0001
PSR60 ... PSR105
1SFC132207F0001

ABB PSR Specifications

General

Type	PSR
Protection Class	IP20
Category	Controller
Rated control supply voltage	24 V DC
Certifications	CE
Operating Temperature	-25°C to +55°C
