4.1 Navigation
This chapter describes how to set-up the PSTX
softstarter according to the recommendation for a waste
water pump.
For a complete list of settings and more details about
how to set up the softstarter, please see The Installation
and commissioning manual (1SFC132081M0201)
available on http://new.abb.com/low-voltage/
products/softstarters.
All parameters are available under Complete list in the
Parameters menu.
The set-up of a waste water pump is done in three steps.
1. The basic set-up to set rated current. language
and time, see chapter 4.2 Basic Set-up and
application Set-up
2. Application set-up to set up the softstarter for a
centrifugal pump, see chapter 4.3 Application
set-up
3. Recommende change of parameter values
for a waste water pump, see chapter 4.4
Recommended change of parameter values

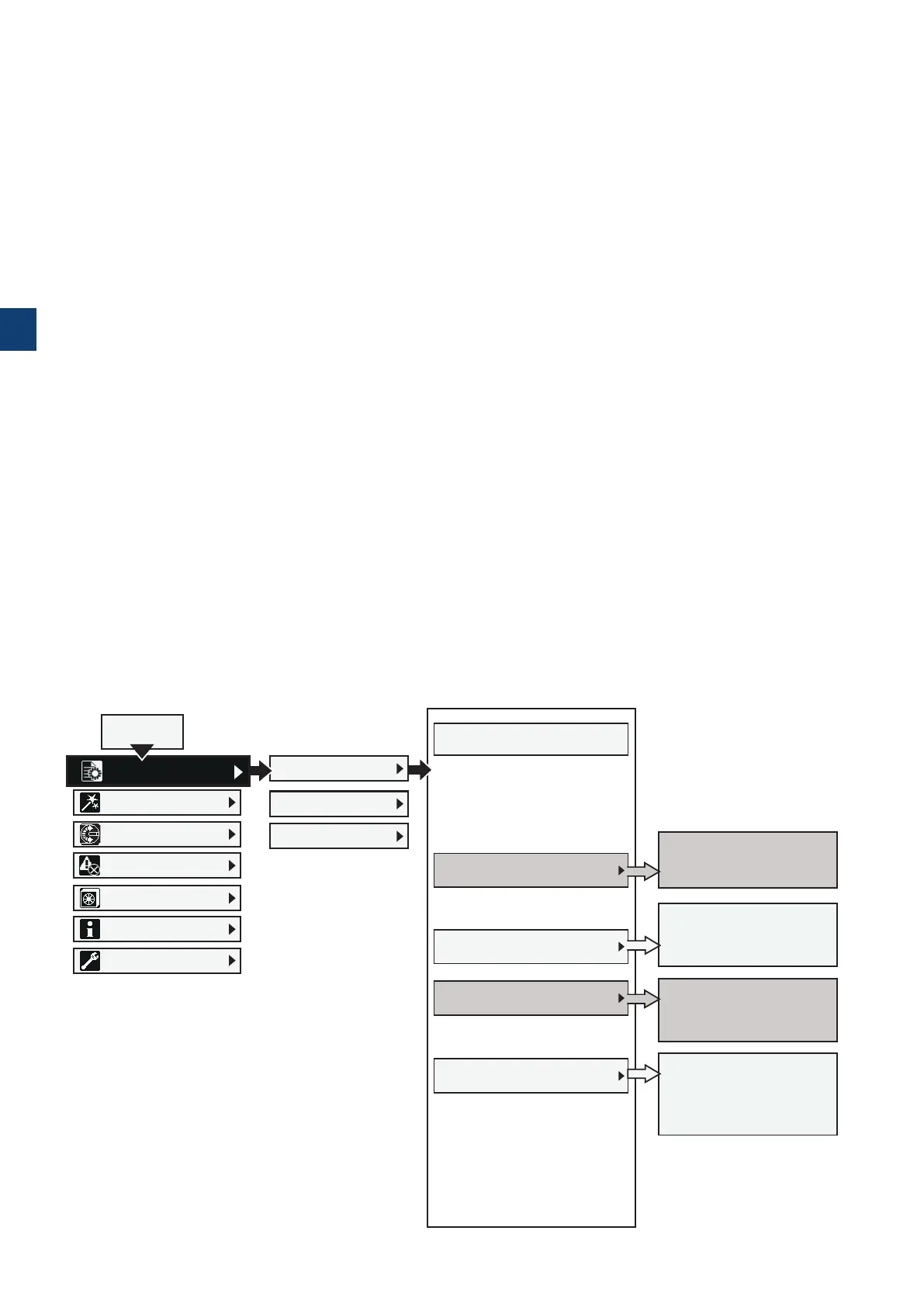

Figure 15: Complete list navigation
08 Sequence start
08.01 Sequence mode
08.02 Ie seq 1
08.03 Start mode seq 1
05 Slow speed
05.03 Slow speed reverse
05.04 Slow speed rev strength
13 Protections
13.10 Locked rotor op
14 Protections
14.02 Curr underload trip time
14.05 Curr underload op
10 Internal
10.02 In1 function
10.03 In2 function
10.06 K6 function
Complete list
Favorites
Modified
MENU
Parameters
Assistants
Motor jog
Event log
Backup handling
System info
Settings
Complete list
01 Motor rated current Ie
02 Start and stop
03 Limit
04 Kick start
05 Slow speed
06 Motor heating
07 Motor braking
08 Sequence start
09 Automatic restart
10 Internal IO
11 External IO
12 Communication
13-19 Protections list 1-7
20-24 Warnings list 1-5
25 Internal faults
26 External faults
27 Presentation
28 Service
3
4 Set-up
