5.1.2.12 Analog output
The Softstarter has one output for a configurable analog
output signal (terminals 29 and 30). The load resistance is
maximum 500 ohm for current output, and minimum 500
ohm for voltage output.
The output signal ranges available are 0-10 V, 0 – 20mA
or 4-20mA. The default setting is 4-20mA.
You can select the analog output to show:
I (A), U (V), P (kW), P (Hp), Q (kVAr), S (kVA),
cos Phi, Motor temp, SCR temp and Energy (kWh).
If you use the analog output, connect the cables to
terminals 29 and 30. See Figure 5.25.
See chapter 7.14 Inputs/outputs for programming.
Tightening torques and cable dimensions.
0,2 .. 2,5 mm
2
2x0,2 .. 1,5 mm
2
0,2 .. 2,5 mm
2
2x0,2 .. 1,5 mm
2
AWG 12 ... 24
0,5 Nm
4,3 lb.in
3,5 x 0,6 mm
(0.138 x 0.024 in)
M3
23 24 25 26 27
T1 T2 T3
28 29 30
+(B) -(A) +24V + GND
Analog outTemp InCom 3
1SFC132081M0201
5.1.3 Extension I/O
If more inputs and outputs are necessary, you can
connect components:
• ABB Stotz DX1xx-FBP extension module
This will give additional:
• 8 digital input
• 4 output relay
• 1 analog output
Connect the cables to terminals 23,24, 28 and 30. See
Figure 5.26.
See
chapter 8 Communication for communication
components.
Tightening torques and cable dimensions.
0,2 .. 2,5 mm
2
2x0,2 .. 1,5 mm
2
0,2 .. 2,5 mm
2
2x0,2 .. 1,5 mm
2
AWG 12 ... 24
0,5 Nm
4,3 lb.in
3,5 x 0,6 mm
(0.138 x 0.024 in)
M3
23 24 25 26 27
T1 T2 T3
28 29 30
+(B) -(A) +24V + GND
Analog outTemp InCom 3
1SFC132081M0201

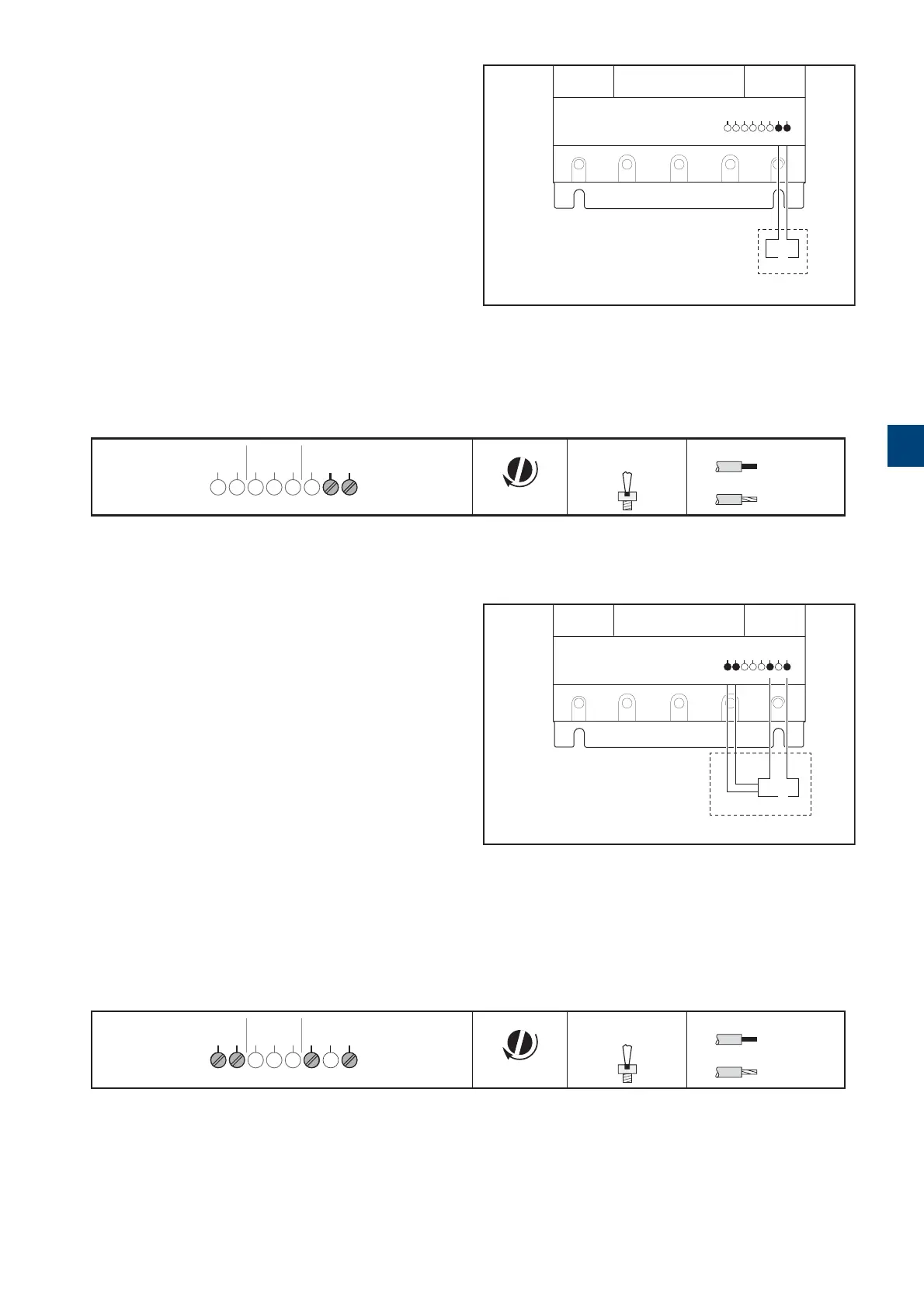

Figure 5.25
