ABB PSTX720 - 6.2 Local control from keypad

1SFC132081M0201 | Installation and commissioning manual | Human machine interface (HMI) 57
6.2 Local control from keypad
WARNING
When you change from local control to remote
control, the setting applies immediately. If the
remote setting has direct motor start it can start
the motor automatically and can cause personal
injury.
WARNING
After a power loss, software upgrade or cycling of
the PSTX Control supply, the PSTX automatically
is set in remote control. Remote control is the
default control of the PSTX.
INFORMATION
Keypad control has the highest priority and
overrides all othe control methods
This chapter gives a description of how the local control
interface works. Use the local control to start and
stop the motor from the keypad. When local control is
selected, you can only control the Softstarter with the
keypad.
Table 3 Local control from keypad
Function Description
Start/stop Start and stop the motor with the
keypad.
R\L Change between local and remote
control
Motor Jog * Run the motor as long as Jog is
pushed.
* For information about Motor jog see chapter 6.2.4 Motor jog.
To go to the Motor Jog, follow this path in menu:
Menu XMotor jog
6.2.1 Start key
The start key is the start switch for the Softstarter. Push
this key to start the motor and operate with the set
parameters. See
1
in Figure 6.15.
6.2.2 Stop key
The stop key is the stop switch for the Softstarter.
Push this key to stop the motor with the set parameters.
You can push stop command during the start ramp if
necessary. See
2
in Figure 6.15.
6.2.3 R\L-key
R\L-key stands for Remote or local control.
Use this key to control the Softstarter remote from digital
input, fieldbus or local from the HMI.
See
3
in Figure 6.15.

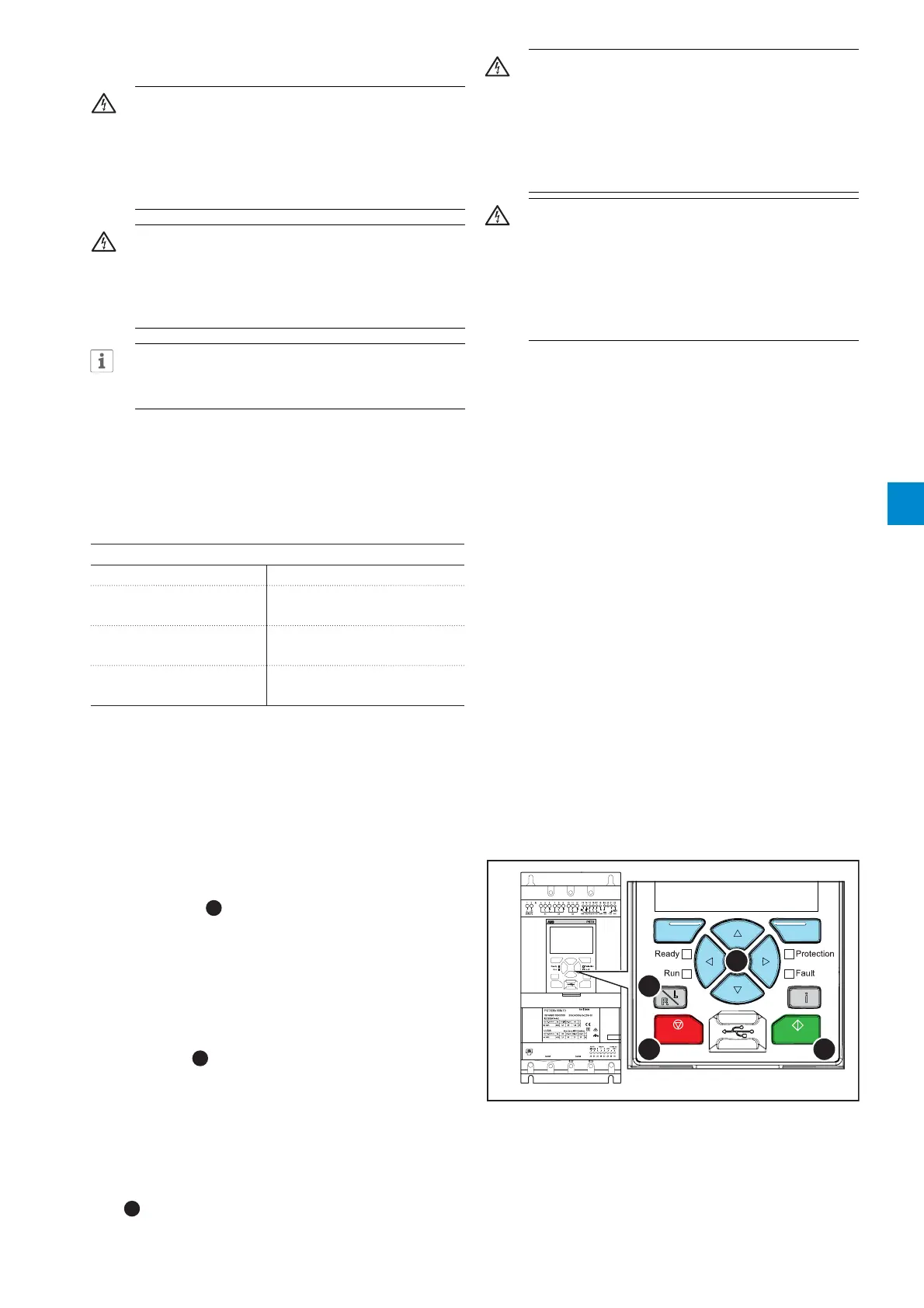

Figure 6.15
Local control
PSTX
L
100-250V
50/60 Hz K4 K4 K4
Start Stop Reset In1 In2 DGND DND +24V GND
N
Options Menu
1SFC132081M0201
3
2
1
4
1
Start
Options Menu
3
2
1
4
1
4
Stop
WARNING
When changing from remote control to local
control, the softstarter stays in present state. That
means, if the the softstarter is running the motor
when switching between the remote control and
local control, the softstarter will continue to run
the motor.
WARNING
Since the keypad has highest priority, when in
local control, neither the digital inputs nor the
fieldbus communication can stop the motor if it
is running. When in local control the only stop
command that can stop the motor is the stop key
on the keypad.
6
