6.4.3 Event log
Path in menu:
Menu XEvent log
For navigation, see Figure 6.28.
The Event log menu shows the event log in the
Softstarter. The log shows the 100 latest events in
chronological order, with “type of event” and date.
For details about all events push details.
Use navigation keys to view all entries in the event log.
The types of event logs are:
• Faults
• Protections
• Warnings
• Parameter changed
• Run
See Figure 6.29.
Faults
Use the Navigation keys to select a Fault and push
“Details” to read details about the Fault (Name, On time
and Event count). Then push the i-key to see information
about the Fault. Push
“Back” to go back to Faults log
menu.
Protections
Use the Navigation keys to select a Protection and
push “Details” to read details about the Protection
(Name, On time and Event count). Push the i-key to see
information about the Protection. Push
“Back” to go
back to Protections log menu.
Warnings
Use the Navigation keys to select a Warning and push
“Details” to read details about the Warning (Name,
On time and Event count). Then push the i-key to see
further information about the Warning. Push
“Back”
to go back to Warning log menu.
Parameter changed
Use the Navigation keys to select a parameter and
push “Details” to read details about the changed
parameter (Name, On time and Event count). Push
“Back” to go back to Warning log menu.
Run
Use the Navigation keys to select a run event and push
“Details” to read details about the run event (Name,
On time and Event count). Push
“Back” to go back to
Warning log menu.
Event logs
Faults
Protections
Warnings
Parameter changed
Run
MENU
Parameters
Assistants
Motor jog
Pump cleaning
Event log
Backup handling
System info
Settings

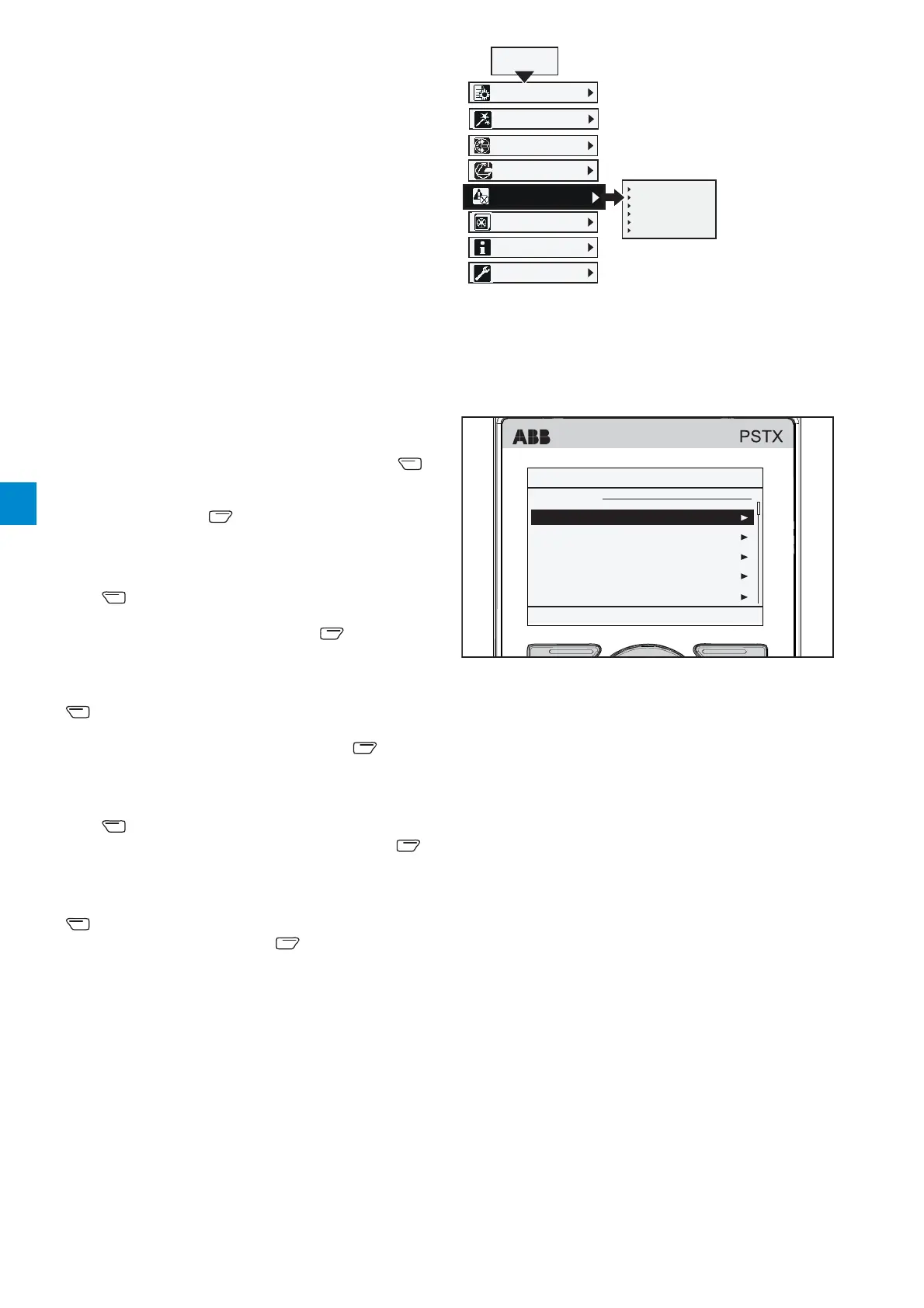

Figure 6.28
Event log navigation
Figure 6.29
Event log
