ABB RE 610 Series Installation Manual

17
A040167

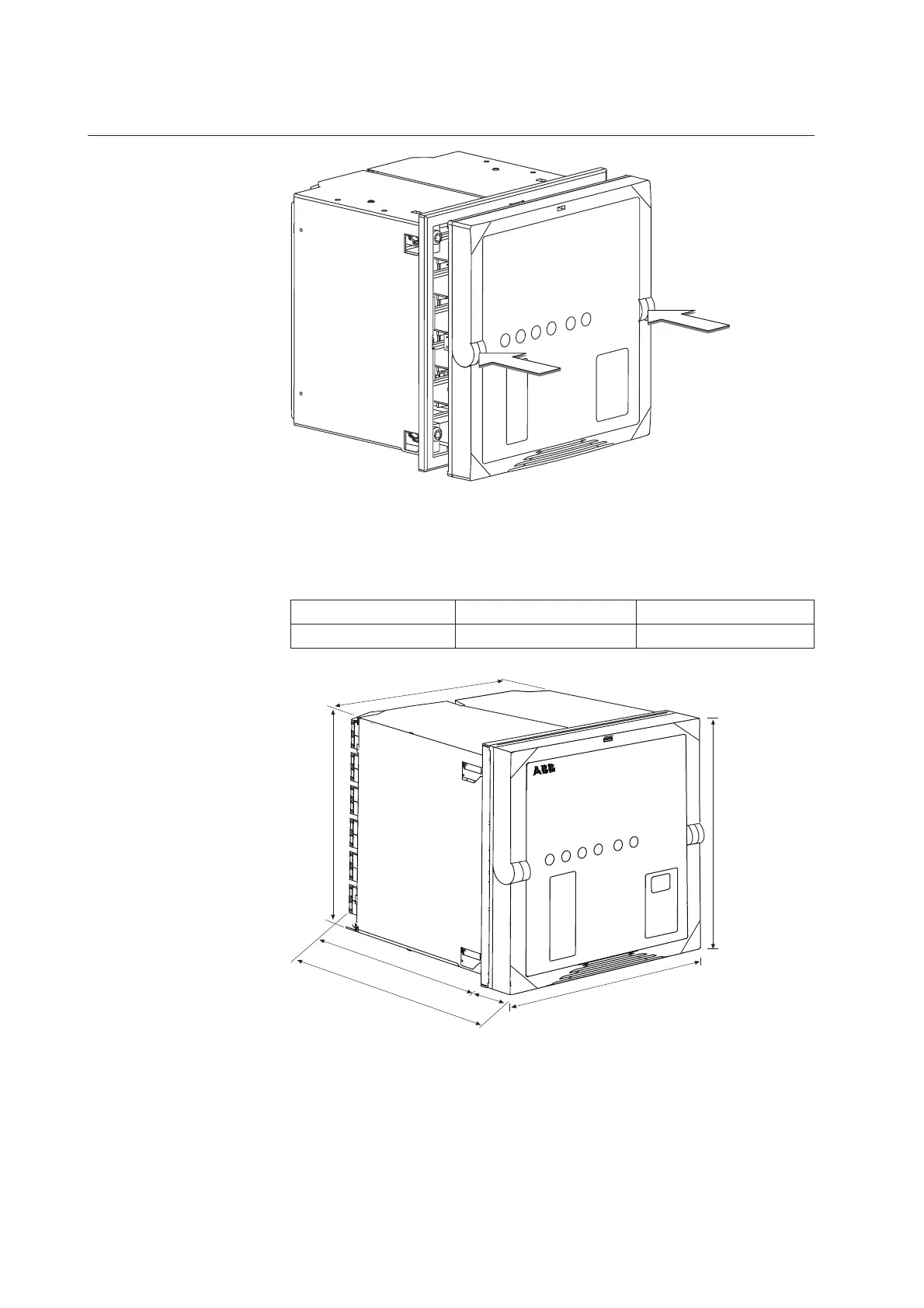

Fig. 4.1.-2 Installing a plug-in unit into the case
4.2. Mounting dimensions
Frame width mm Frame height mm Frame depth mm
177 177 149.3
177
177 (4U)
30.8
149.3
180.1
160
164
A040168
Fig. 4.2.-1 Main dimensions of RE_ 610
4.3. Flush mounting
All the mounting accessories for flush mounting are included in the case.
1MRS752265-MUM
Protection Relay
Installation Manual
RE_ 610
