A070134

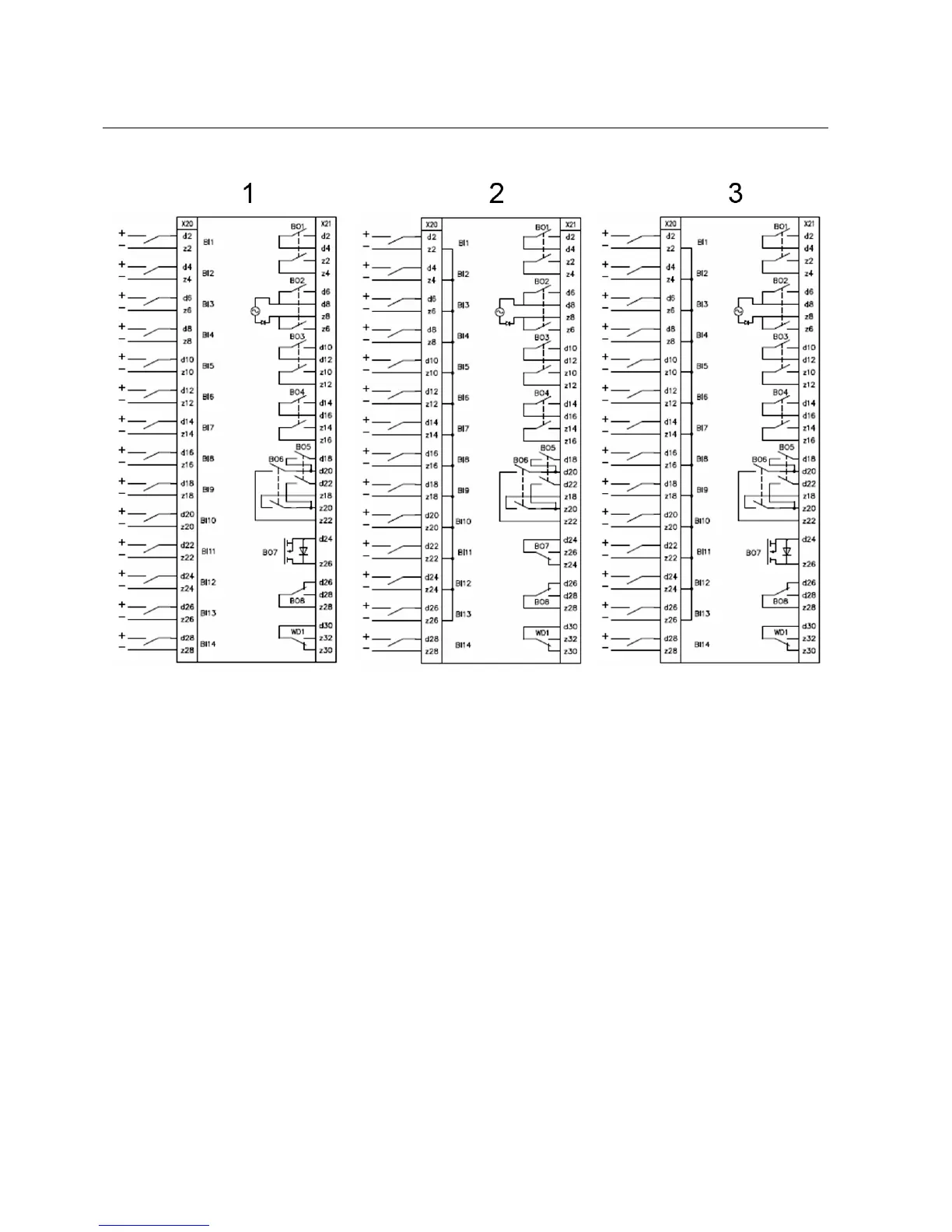

Fig. 8.2.-1 Binary inputs and outputs module BIO3
1: BIO3 standard
2: BIO3 with 1 static channel
3: BIO3 with interconnected inputs
The following Fig. 8.2.-2 shows the binary inputs and outputs module called Static
I/O.
