16
1MRS 752179-MUM
Earth-Fault Relay
Operator’s Manual
REJ 521

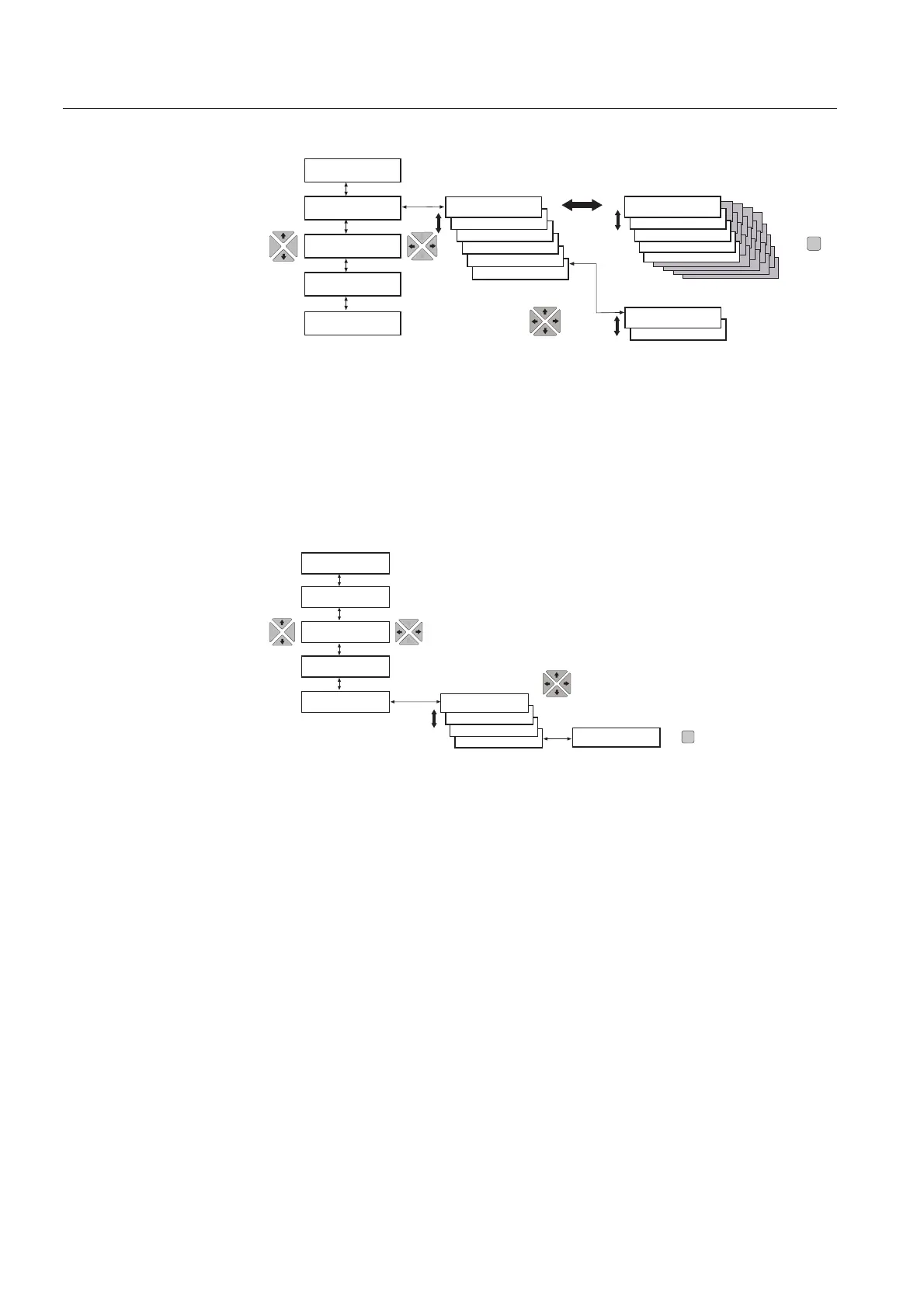

)LJ 5HFRUGHGGDWD
3.2.2.4. INFO
The main menu group “INFO” contains information about the relay, such as type,
software, article and serial numbers. Use this data when you need to order service,
for instance. The submenu found under the software number displays the additional
build number.
)LJ ,1)2
3.2.3. Technical level
3.2.3.1. Menu system of parameters
The interactive communication between the operator and the HMI is based on
menus. Press an arrow button to activate the main menu. If the default password is
in use, no password will be required to change the parameters. If the password
protection is in use, “***” will be shown on the display until the valid HMI password
has been given.
The views are used for reading setting parameters, measured values, etc. The
parameters are divided into two main groups:
• SETTINGS
• CONFIGURATION
Recd_521
INFO
C
1. I0 In:x.xx
1. t0> %:xxx
1. t0>> %:xxx
Main Menu
Group Menu
Parameter Menu
SETTINGS
CONFIGURATION
MEASUREMENTS
RECORDED DATA
NUMBER OF STARTS
5. EVENT
4. EVENT
3. EVENT
RECORDED DATA
1. EVENT
2. EVENT
Cancel
1. xx.xx;xx.xx
1. xx-xx-xx
RECORDED DATA
START I0>> :xxx
RECORDED DATA
START I0> :xxx
Info_521
C
INFO
INFO
INFO
1MRS090413-BAA
ERxxxxxxxxxxxx
1MRS118013 B
REJ 521
2xx
Main Menu
Parameter Menus
Cancel
SETTINGS
CONFIGURATION
MEASUREMENTS
RECORDED DATA
