ABB RELION Series Product Guide

IEC04000452-3-en.vsd
1b
1a
2
3
IEC04000452 V3 EN-US

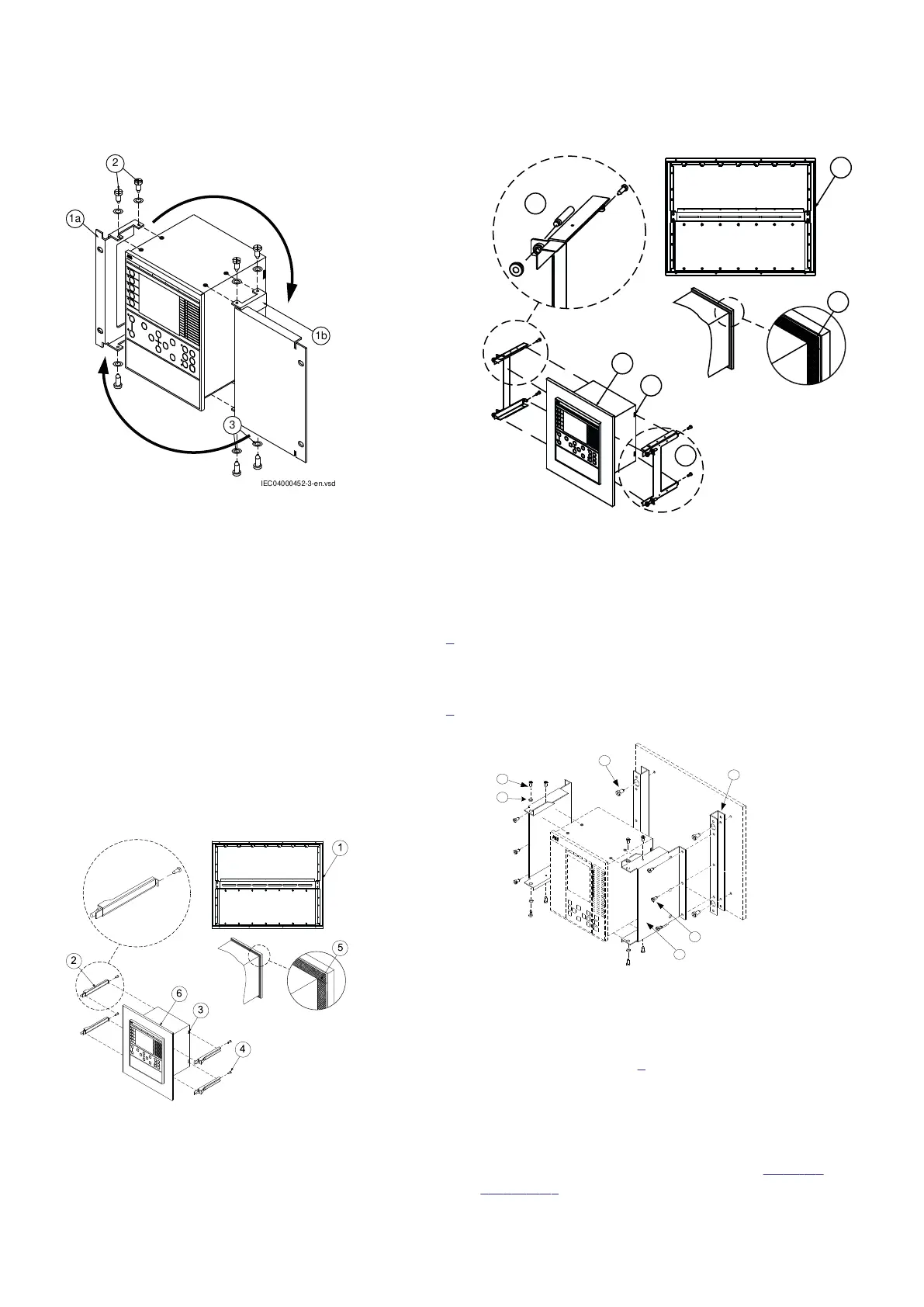

Figure 1. The rack mounting kit
Flush mounting for 670 and 650 series
IP652-1 v2M1929-3 v2
Use the flush mount kit for installation in a panel cut-out.
M1938-3 v2
The flush mounting kit for release 2.1 and earlier consists of
four fasteners (2) with appropriate mounting details (4) and
a sealing strip (5) for fastening to the IED (3). See Figure
2.
From release 2.2 onwards, the flush mounting kit consists of
two fasteners (2) with appropriate mounting details (4) and
a sealing strip (5) for fastening to the IED (3). See Figure 3.
The two fasteners are pre-assembled to the box.
To receive IP54 class protection, an additional sealing (1)
must be ordered with the IED. This sealing is factory
mounted.
IEC04000451-2-en.vsd
IEC04000451 V2 EN-US
Figure 2. The flush mounting kit (release 2.1 and earlier)
1
5
6
3
IEC16000080 =1=en .vsd
2
4
IEC16000080 V1 EN-US
Figure 3. The flush mounting kit (release 2.2 onwards)
Wall mounting for 670 and 650 series
IP651-1 v2M1974-3 v1
Use the wall mounting kit to projection mount the IED on a
wall.
M1973-3 v1
The wall mounting kit consists of a mounting bar pair (4)
and a IED bracket pair (6). Screws (2) and (5) and washers
(1) for fastening of the terminal are included, but not wall
fasteners (3).
xx04000 4 5 3.vs d
1
2
3
4
5
6
IEC04000453 V1 EN-US
Figure 4. The wall mounting kit
Wall mounting for SAM600-IO
GUID-2C7B44A9-6E63-4859-B20C-6EB36A9E0170 v1
Use the wall mounting kit to projection mount the SAM600-
IO on a wall, see figure 5.
The wall mounting kit consists of 8 washers (1), 8 screws
(2), 2 mounting profiles (3), 6 nuts (4), 4 spacers (5) and 2
mounting angles (6).
To order wall mounting kit, refer to section Mounting
accessories.
670/650 series and SAM600-IO IEC
1MRK 514 012-BEN K
Hitachi Power Grids 7
© 2017 - 2021 Hitachi Power Grids. All rights reserved.
