ABB SACE Emax E1.2 - Tripping Curves for G Protection (T = K)

ABB | SACE Emax 2
144 | © 2017 ABB | 1SDH001330R0002 - ECN000058721 Rev. A Protection curves | 3 - Touch protections

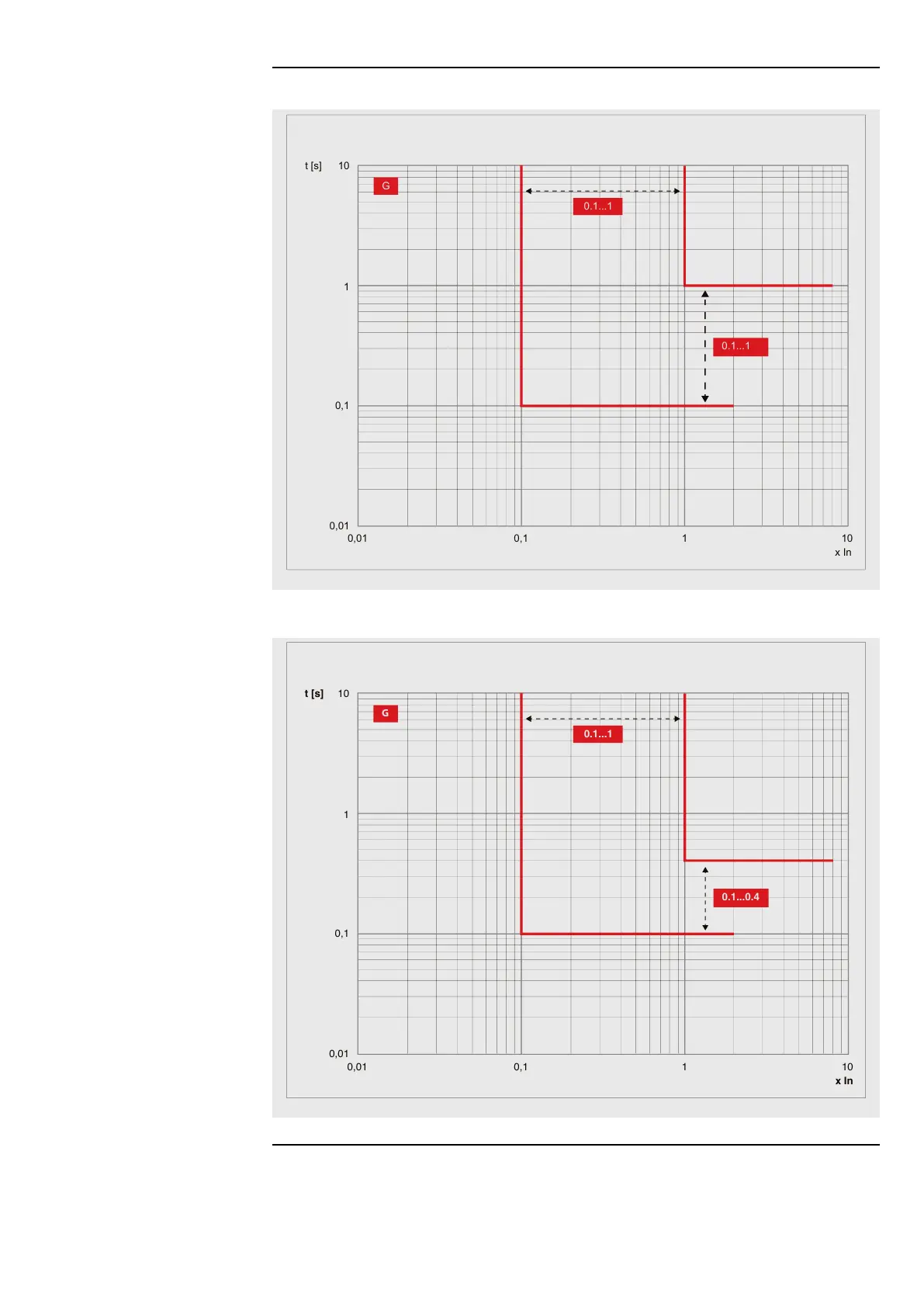

Tripping curves for G protection
(t = k)
Version IEC
0.1...1
0.1...1
10
1
0,1
0,01
1010,1
x In
t [s]
0,01
G
Version UL
0.1...1
0.1...0.4
10
1
0,1
0,01
1010,1
x In
t [s]
0,01
G
