ABB | SACE Emax 2

Continued from the previous page

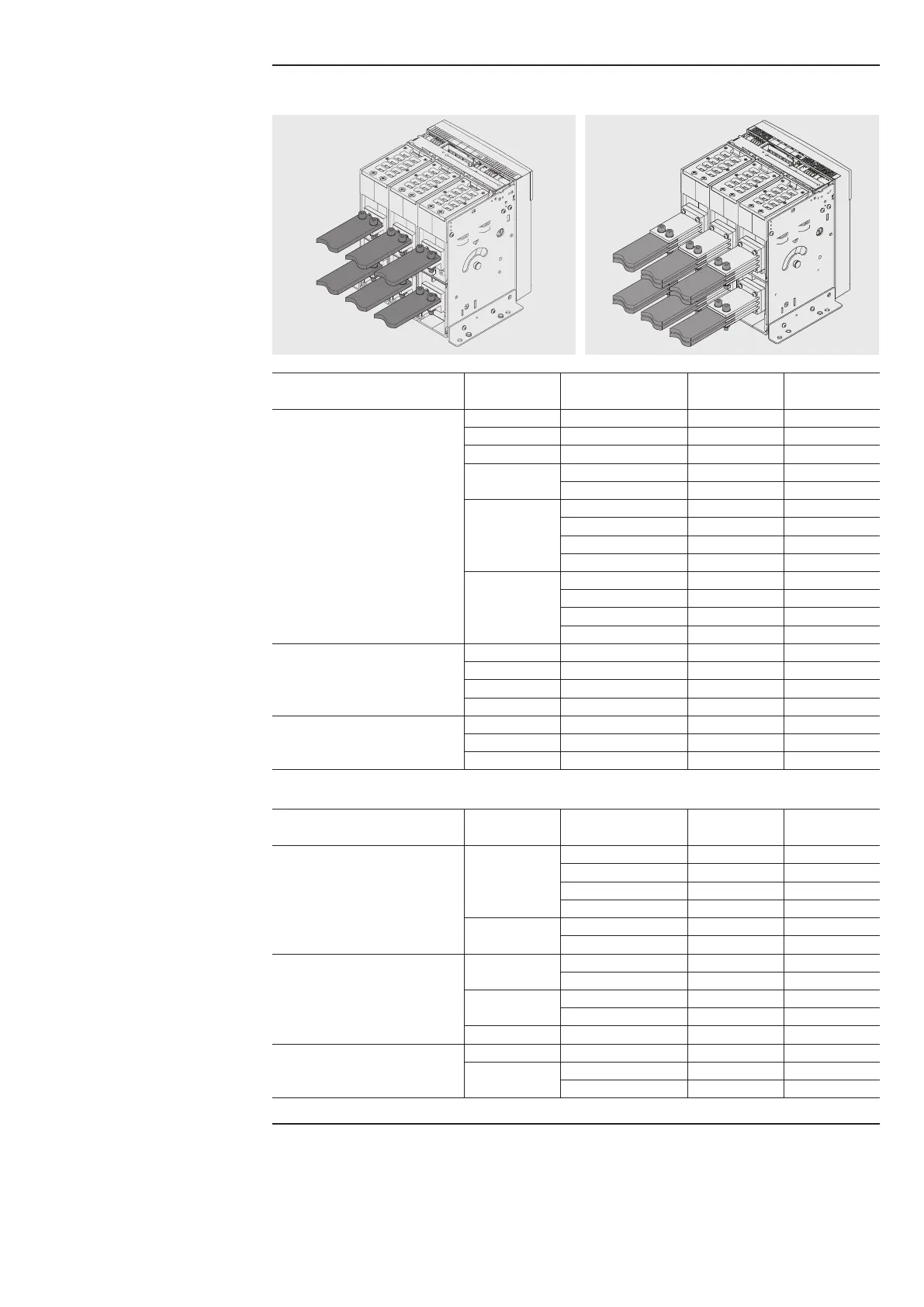

The connection for the E2.2-E4.2-E6.2 circuit-breakers is shown below as swell as the tables with some

examples of the amount and sizes of the connections that can be used for each type of circuit-breaker:

Figure 98 IEC

Figure 99 UL

circuit-breaker IEC 60947 Iu (A)

Dimension of

busbars

Horizontal

terminals

Vertical

terminals

E2.2

800 1x50x10 yes yes

1000 2x50x5 yes yes

1250 2x50x10 yes yes

1600

2x60x10 yes -

1x100x10 - yes

2000

3x60x10 yes -

2x80x10 - yes

3x60x10

(1)

yes -

2x80x10

(1)

- yes

2500

3x60x10 yes -

4x100x5 - yes

3x60x10

(1)

yes -

4x100x5

(1)

- yes

E4.2

2000 2x80x10 yes yes

2500 2x100x10 yes yes

3200 3x100x10 yes yes

4000 4x100x10 yes yes

E6.2

4000 4x100x10 yes yes

5000 5x100x10 yes yes

6300 6x100x10 yes yes

(1)

values for spread terminals

circuit-breaker UL 1066 Iu (A)

Dimension of

busbars

Horizontal

terminals

Vertical

terminals

E2.2-A

1600

3x1/4x2 - yes

4x1/4x2 yes -

3x1/4x2.5 yes -

2x1/4x3 - yes

2000

4x1/4x2 - yes

4x1/4x2.5 yes -

E4.2-A

2000

4x1/4x2 - yes

4x1/4x2.5 yes -

2500

3x1/4x4 - yes

4x1/4x4 yes -

3200 4x1/4x4 - yes

E6.2-A

4000 4x1/4x5 yes yes

5000

6x1/4x5 - yes

8x1/4x5 yes -

Continued on the next page
