ABB SACE Emax E2.2 Installation, Operation And Maintenance Instructions

ABB | SACE Emax 2
Accessories | 1 - Preliminary considerations
155 | © 2013 ABB | 1SDH001000R0002 - L7804
Circuit-breaker dismantling
operations
To dismantle the accessories, the following parts must be removed from the circuit-breaker:
• Transparent flange (A) of the release, by turning the screws (B).
• Escutcheon plate of the circuit-breaker (C), by removing the mounting screws (D).
A
D
B
C
2
1
90°
1
2

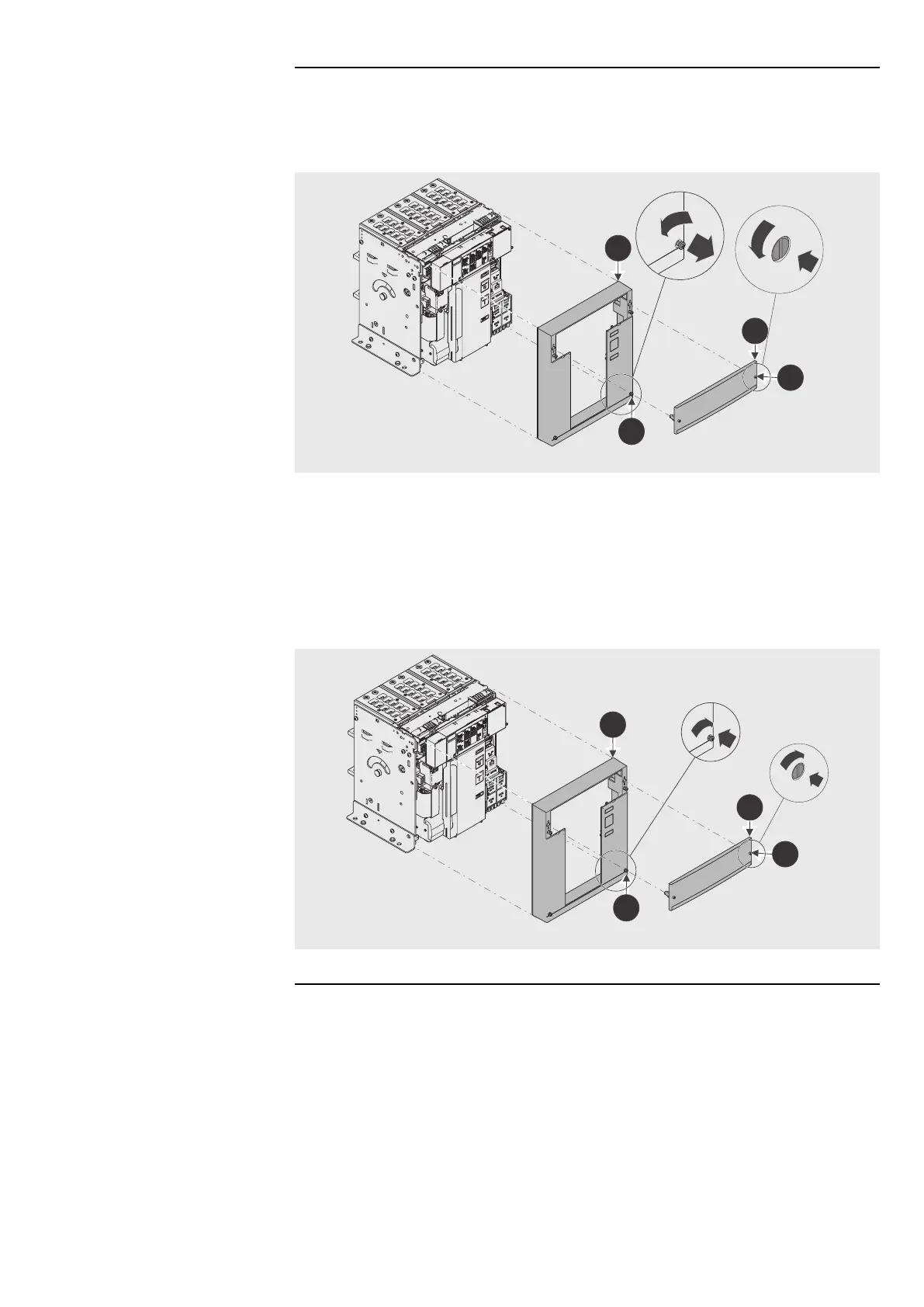

Figure 85 - Removing the flange and escutcheon plate
After reassembling the accessories, the parts previously disassembled must be reassembled
as indicated:
• Escutcheon plate of the circuit-breaker (C), by screwing in the mounting screws (D). Tighten
with tightening torque 1.1 Nm.
• Transparent flange (A) of the release, by turning the screws (B).
A
D
B
C
1
90°
2
1
2
Figure 86 - Assembly of flange and escutcheon plate

ABB SACE Emax E2.2 Specifications

General

Rated Voltage (Ue)	Up to 690V AC
Standards	IEC 60947-2
Poles	3, 4
Type	Air Circuit Breaker
Protection Functions	Overload, Short-circuit
Mounting	Fixed
Dimensions	Various, depending on frame size and configuration. Consult ABB documentation.
Weight	Various, depending on frame size and configuration. Consult ABB documentation.
