ABB SACE Emax E2.2 Installation, Operation And Maintenance Instructions

ABB | SACE Emax 2
Ekip Touch protection release | 8 - Setting the parameters
83 | © 2013 ABB | 1SDH001000R0002 - L7804

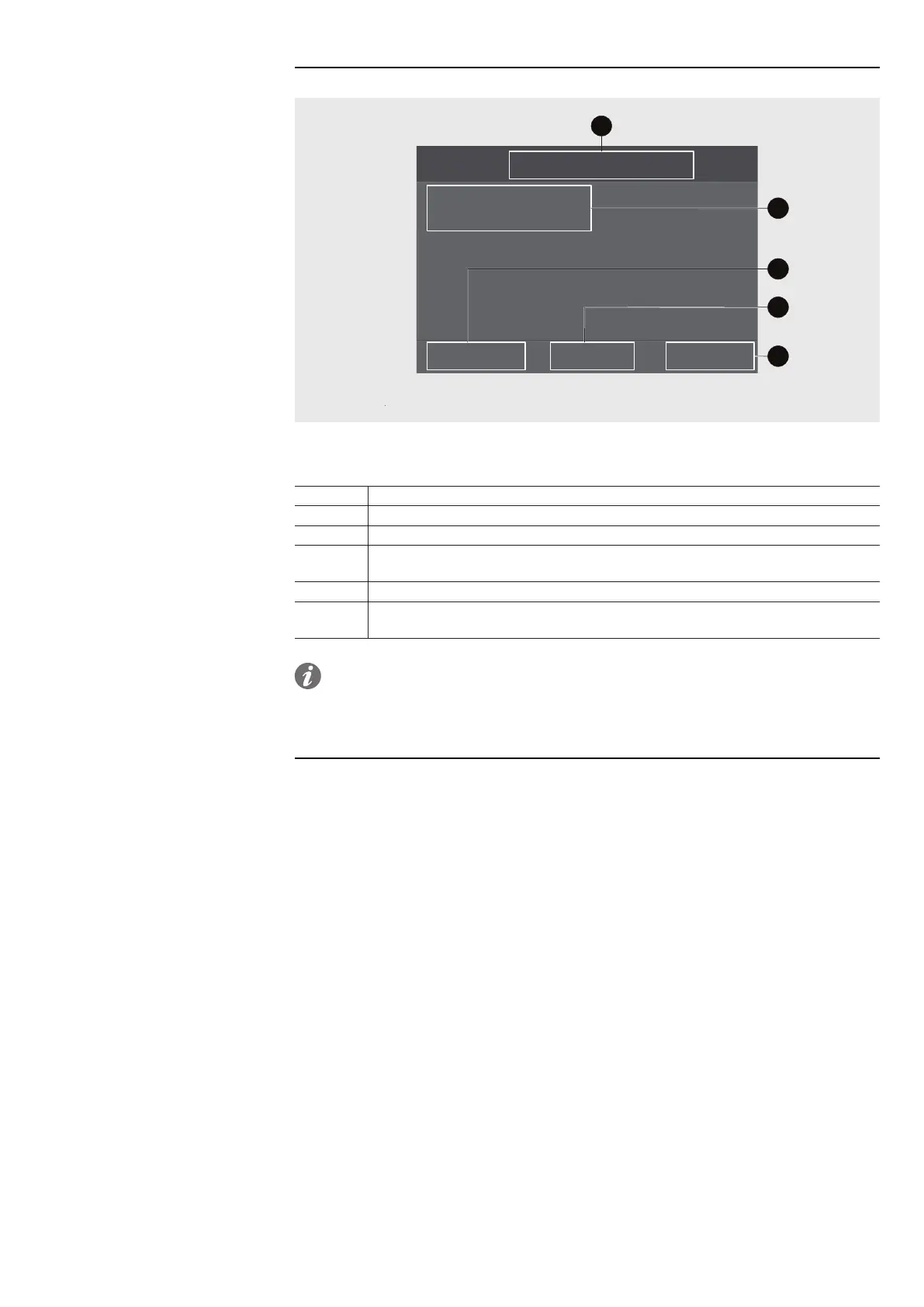

Programming Page
The page appears as follows:
A
B
E
D
C
Programming
S(V) Protection
S2(V) Protection
Confirm Abort Modify
Figure 82
The following table provides a description of the various areas of the page:
Pos. Description
A Name of the page.
B List of changes made.
C
Confirm key: confirms the changes (programs the release), and opens the
Menus page.
D Cancel key: cancels the changes, and opens the Menus page.
E
Modify key: it keeps the changes and opens the menu with tick symbols, for
correction of the changes or to make other changes.
NOTE: if the changes are confirmed:
• The Menu page is opened.
• For approximately 3 seconds, the message “Parameters updated” appears.

ABB SACE Emax E2.2 Specifications

General

Rated Voltage (Ue)	Up to 690V AC
Standards	IEC 60947-2
Poles	3, 4
Type	Air Circuit Breaker
Protection Functions	Overload, Short-circuit
Mounting	Fixed
Dimensions	Various, depending on frame size and configuration. Consult ABB documentation.
Weight	Various, depending on frame size and configuration. Consult ABB documentation.
