3 Weight and transportation of the
turbocharger
Lifting gear with a sufficient load limit must be used for installing the turbocharger. The fol-
lowing weight specification applies to the heaviest variant possible. Depending on the spe-
cification, the weight specified on the rating plate may be lower than the standard value
specified here.
u Remove insulation jacket from bearing casing.

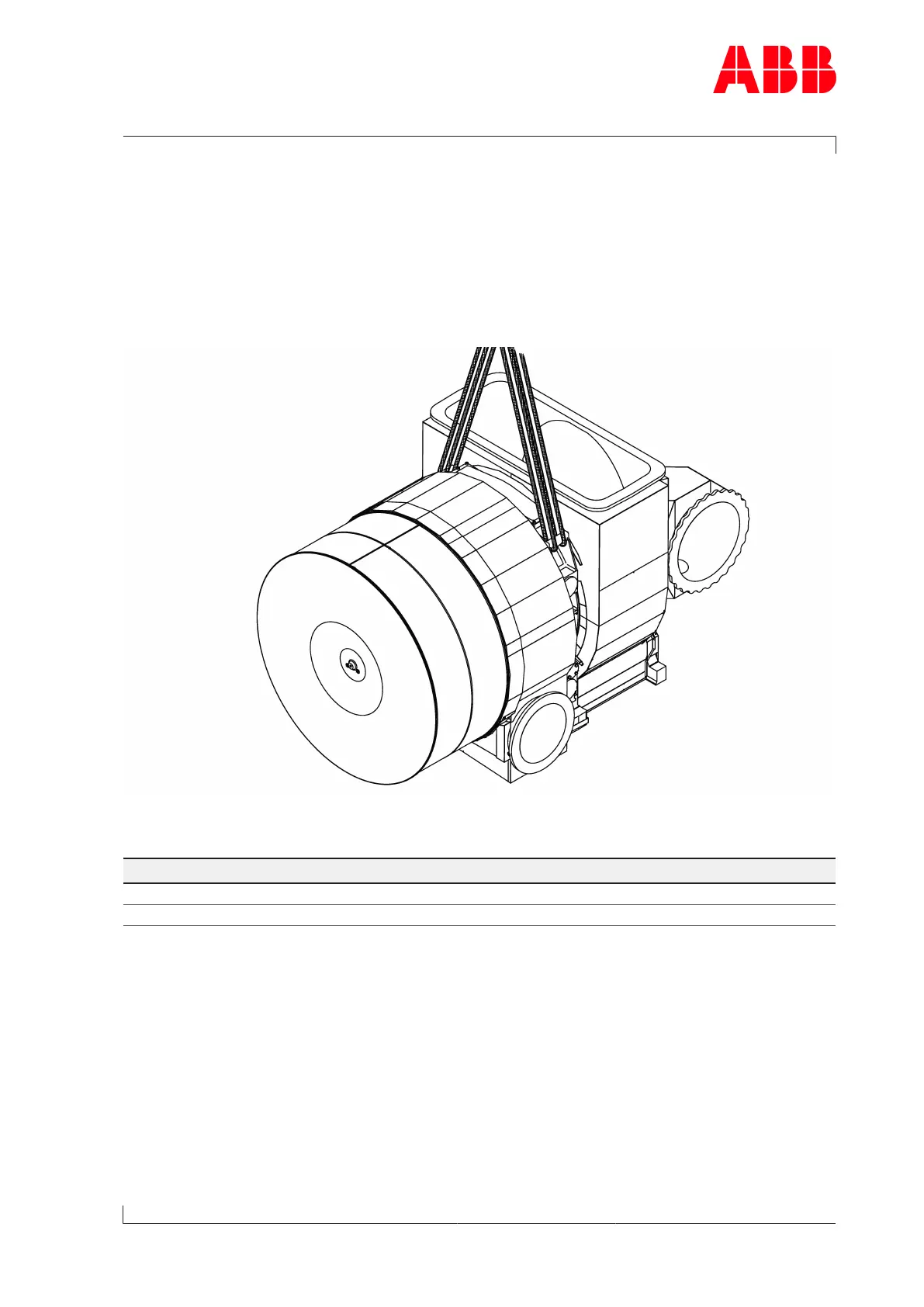

u Fit lifting gear to turbocharger
Product Weight [kg]
TPL85-B14/15/16 12000
TPL91-B 16000
Table4
Page 9 / 17
