Assembly Instructions / TPL85-B14/B15/B16, TPL91-B
4 Installing the turbocharger /
© Copyright 2020 ABB. All rights reserved. HZTL455311P0020_EN Rev.A July 2020
4 Installing the turbocharger
u On engines with three or four turbochargers, the turbocharger intended for flexible cut-
out must be installed in the centre.
u Remove the cover from the oil connection.

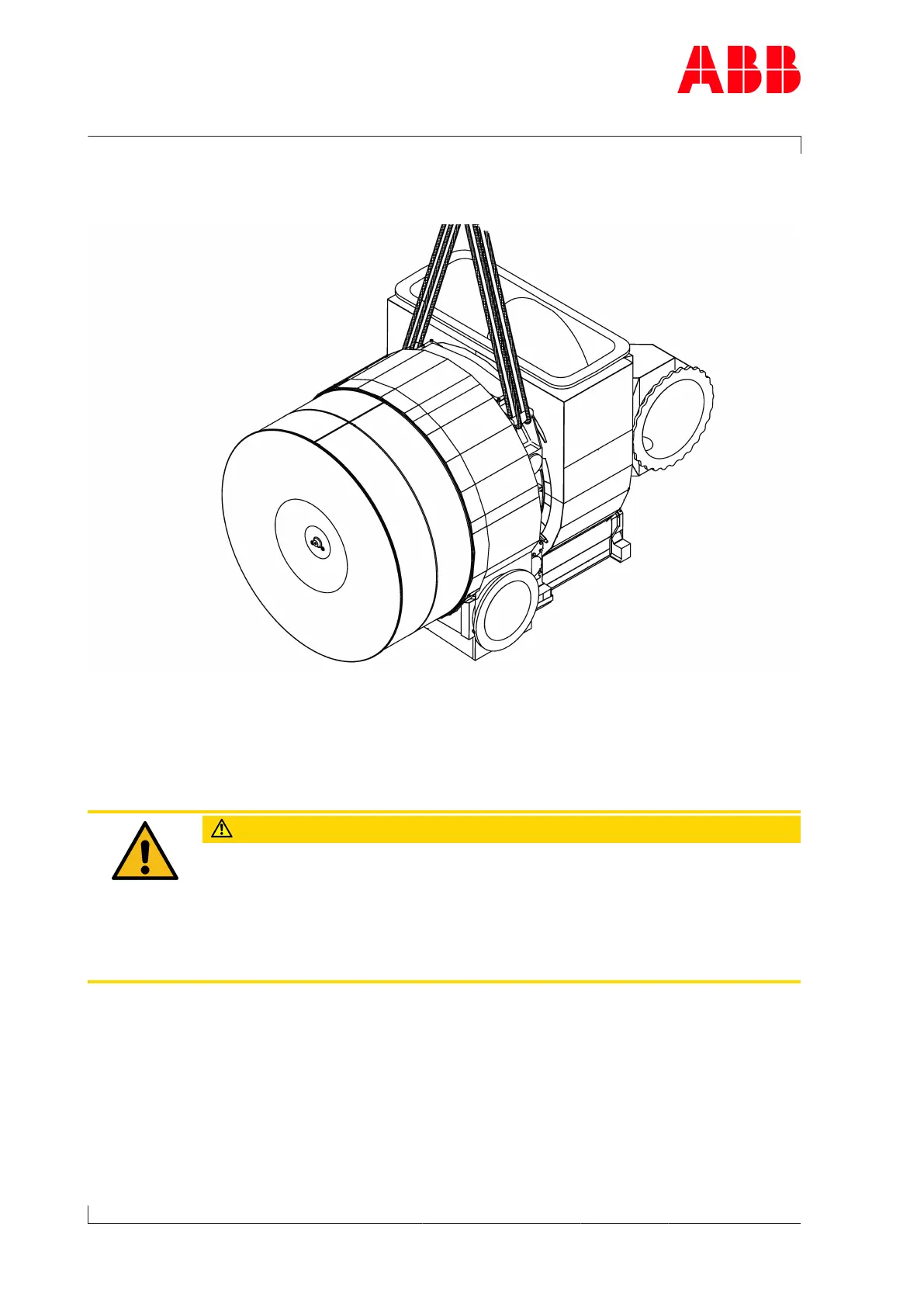

u Attach one lifting gear each to the two fins of the bearing casing provided for this pur-
pose. Ensure that the transport ropes are not touching the emergency oil tank
CAUTION
Oil orifices
There is an orifice for adjusting the oil pressure in each of the two oil supply
pipes of the bearing casing. When the cartridge group, the bearing casing or
the turbocharger-is being fitted to the engine, it must be ensured that the
orifices specified for the turbocharger are installed in both oil supply pipes.
u Check that the oil orifices have been correctly installed.
u Adjust the turbocharger on the engine.
u Tighten fixing screws (Steps for fastening the turbocharger →11).
