ABB TPL-B Series Assembly Instructions

Assembly Instructions / TPL85-B14/B15/B16, TPL91-B
4 Installing the turbocharger / 4.2 Completion work, if required
© Copyright 2020 ABB. All rights reserved. HZTL455311P0020_EN Rev.A July 2020

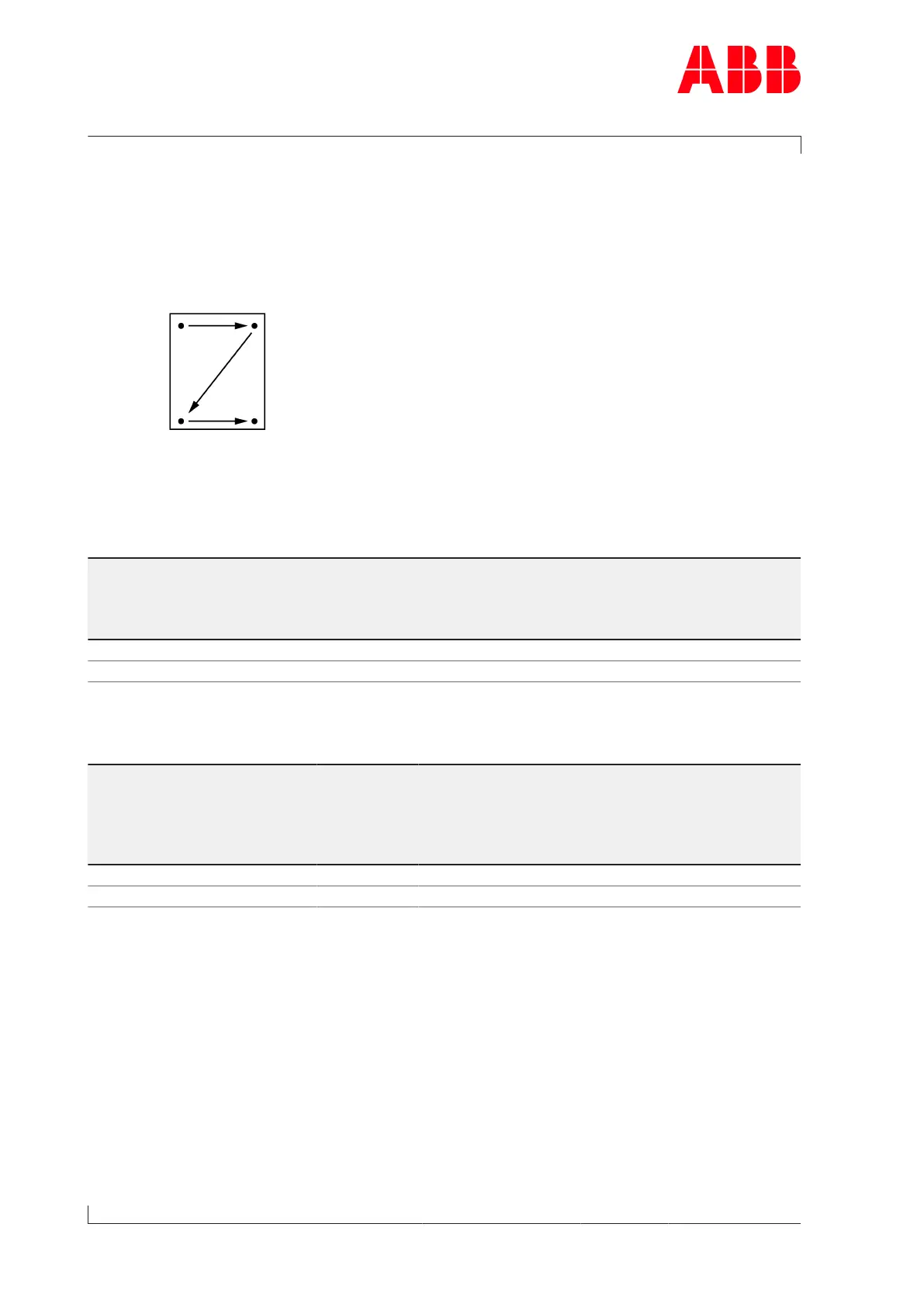

u Tighten screws or nuts first by hand, then with 50%, and subsequently 100% of the pre-
tightening torque, as per the selected tightening procedure in a Z configuration.
u Use a feeler gauge (0.05 mm blade) to check whether 25% of the surface of the screw
contact points is in contact with the bracket. If not, tighten until 25% of the surface is in
contact with the bracket.
u Tighten the screws with the specified tightening angle in a Z configuration
TPL-B: Table of tightening torques for feet →12
TPL-B: Table of tightening angles →12
Torque-controlled tightening
Product Thread size Tightening
torque
[Nm]
Pre-tightening
torque
[Nm]
Height a of the ten-
sioned turbocharger
foot
[mm]
TPL85-B14/15/16 M42 3100 850 148
TPL91-B M42 3100 850 145
Table6
Angle-controlled tightening
Product Thread
size
Tightening
angle for
tensioned
height a
[DEG]
Additional tighten-
ing angle for every
10mm of additional
screw length b
[DEG]
Pre-tight-
ening
torque
[Nm]
Height a of the
tensioned tur-
bocharger foot
[mm]
TPL85-B14/15/16 M42 29 1.7 850 148
TPL91-B M42 29 1.7 850 145
Table7
4.2 Completion work, if required
u Attach all gas, air, water and oil pipes in accordance with the enginebuilder's instructions.
u Fit insulation components.
u Fit speed sensor and plug in cable connector.
Page 12 / 17
