Operation Manual / TPL67-C.. - TPL71-C..
Di
sassembly and assembly
8
Module weights
8.2
Page 81
© Copyright 2016 ABB. All rights reserved.
April 2016 HZTL2488_EN Revision C
Module weights
8.2

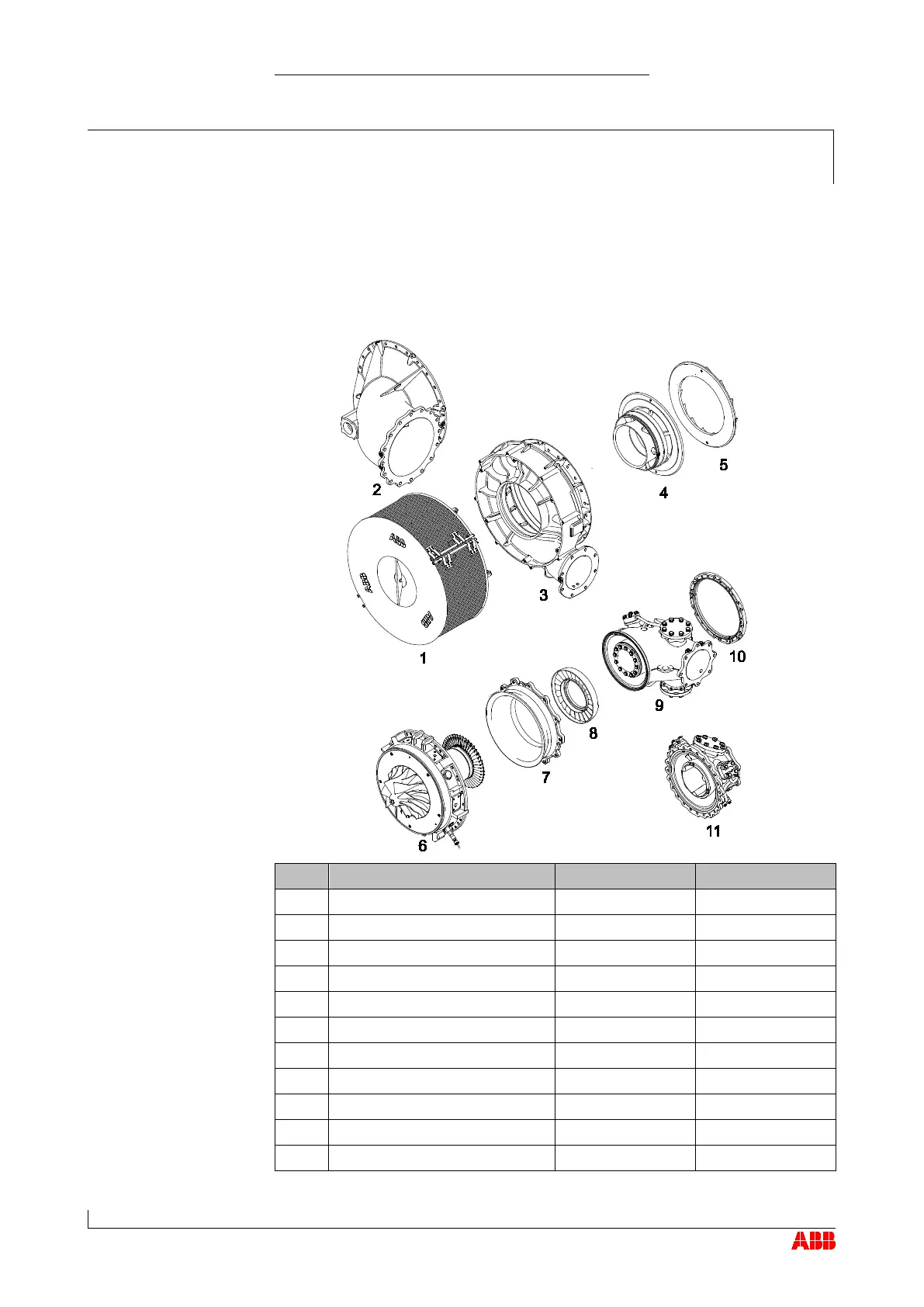

The specified weights of individual parts or assemblies are guides round-
ed off to the next highest value.
Description
TPL67-C
TPL71-C
1
Filter silencer 130 180
2
Radial air suction branch 50 70
3
Compressor casing 180 260
4
Wall insert 40 65
5
Diffuser 19 35
6
Cartridge group 290 460
7
Turbine diffuser 40 60
8
Nozzle ring 10 13
9
Radial gas inlet casing 110 150
10
Segment 7 12
11
Axial gas inlet casing 65 80
8.2
Assemblies
Weights [kg]
