ABB TPL-C Series User Manual

Operation Manual / TPL67-C.. - TPL71-C..
Disassembly and assembly
8
Removing and fitting filter silencer or air
suction branch
8.3
Page 84
© Copyright 2016 ABB. All rights reserved.
April 2016 HZTL2488_EN Revision C
 Remove insulation where necessary.
 Pass lifting gear through rib on filter silencer.
 Pass lifting gear through lugs on back.
 Unscrew nuts (72027) and remove them together with washers
(72018).
 Remove filter silencer and it set down to one side.
 Install filter silencer in reverse order.

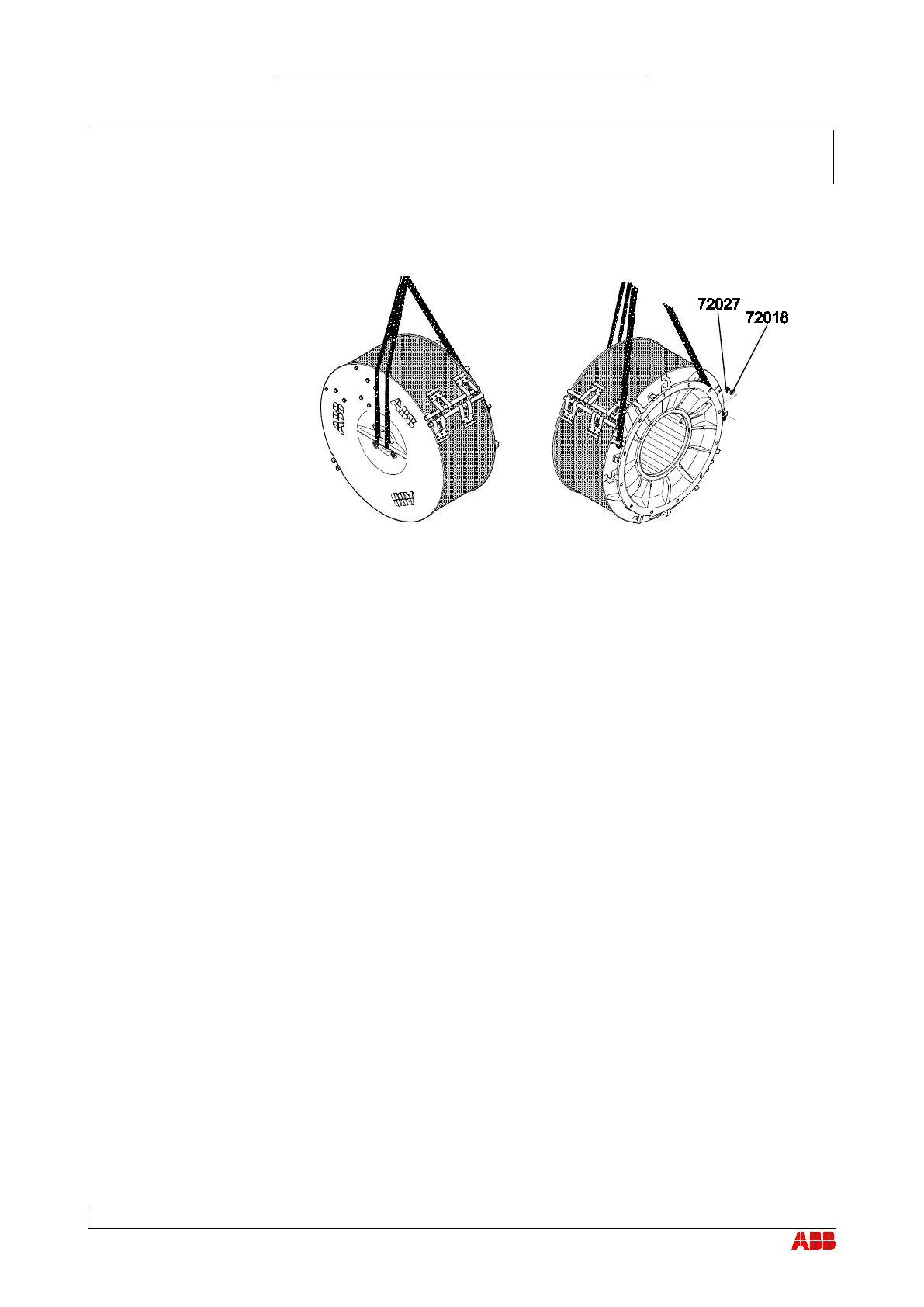

Removing filter silencer
Installing the filter silencer
