Disassembly and assembly
8
Installing cartridge group
8.7
Page 96
© Copyright 2016 ABB. All rights reserved.
April 2016 HZTL2488_EN Revision C


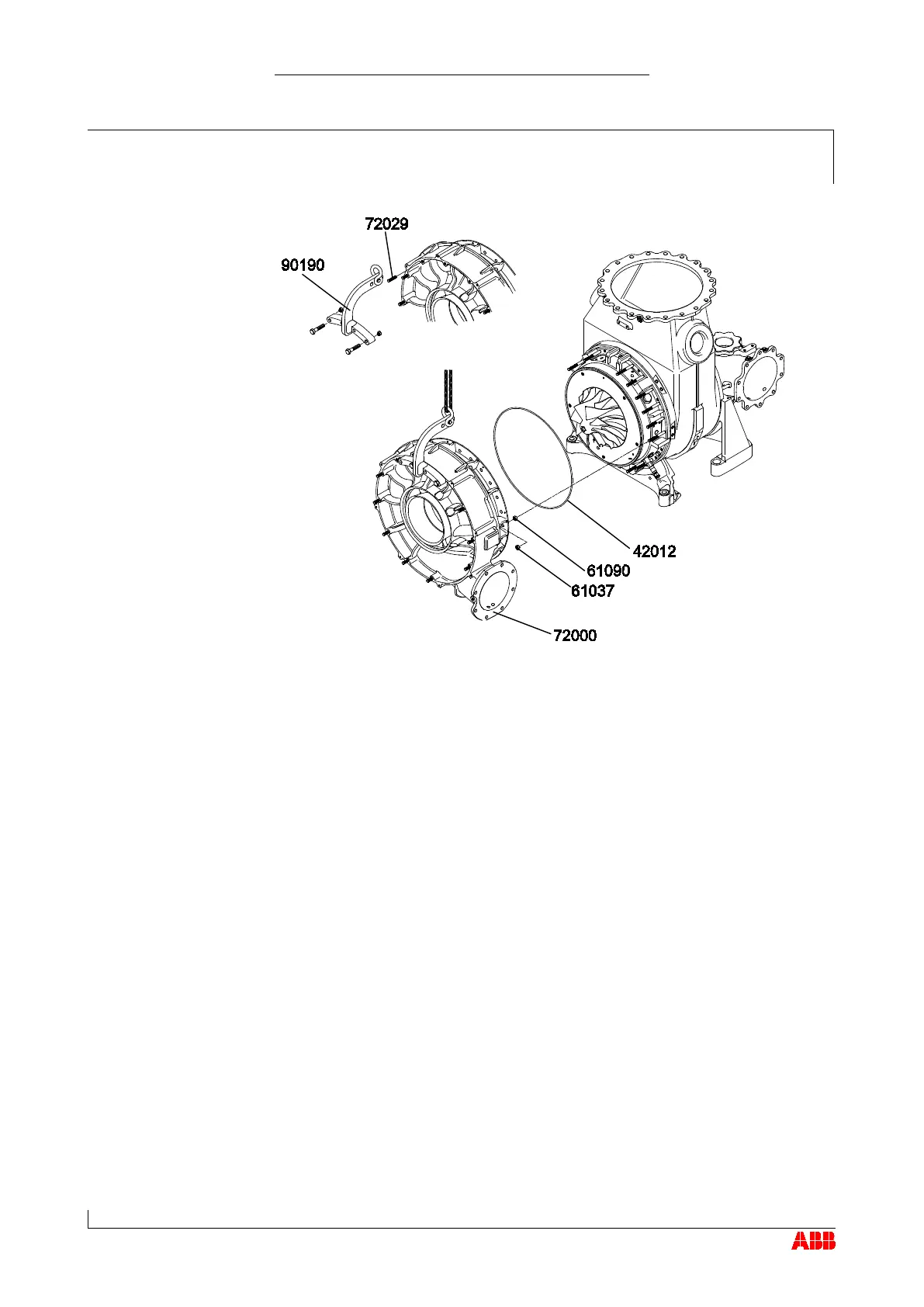

Fit the O-ring (42012).
 Attach lifting gear to shackle of lifting device (90190) and turn com-
pressor casing (72000).
 By hand, screw three press-off nuts (61090) onto bearing casing
studs, equally spaced around circumference, and up to end of thread.
 Push compressor casing (72000) fully onto cartridge group and fasten
it using nuts (61037).
 Secure three press-off nuts (61090) against compressor casing
(72000) by tightening them to specified torque. (See chapter Table of
tightening torques.)
 Remove lifting device (90190).
