Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
8 Disassembly and assembly / 8.7 Installing cartridge group
© Copyright 2018 . All rights reserved. HZTL2481_EN Revision C May 2018

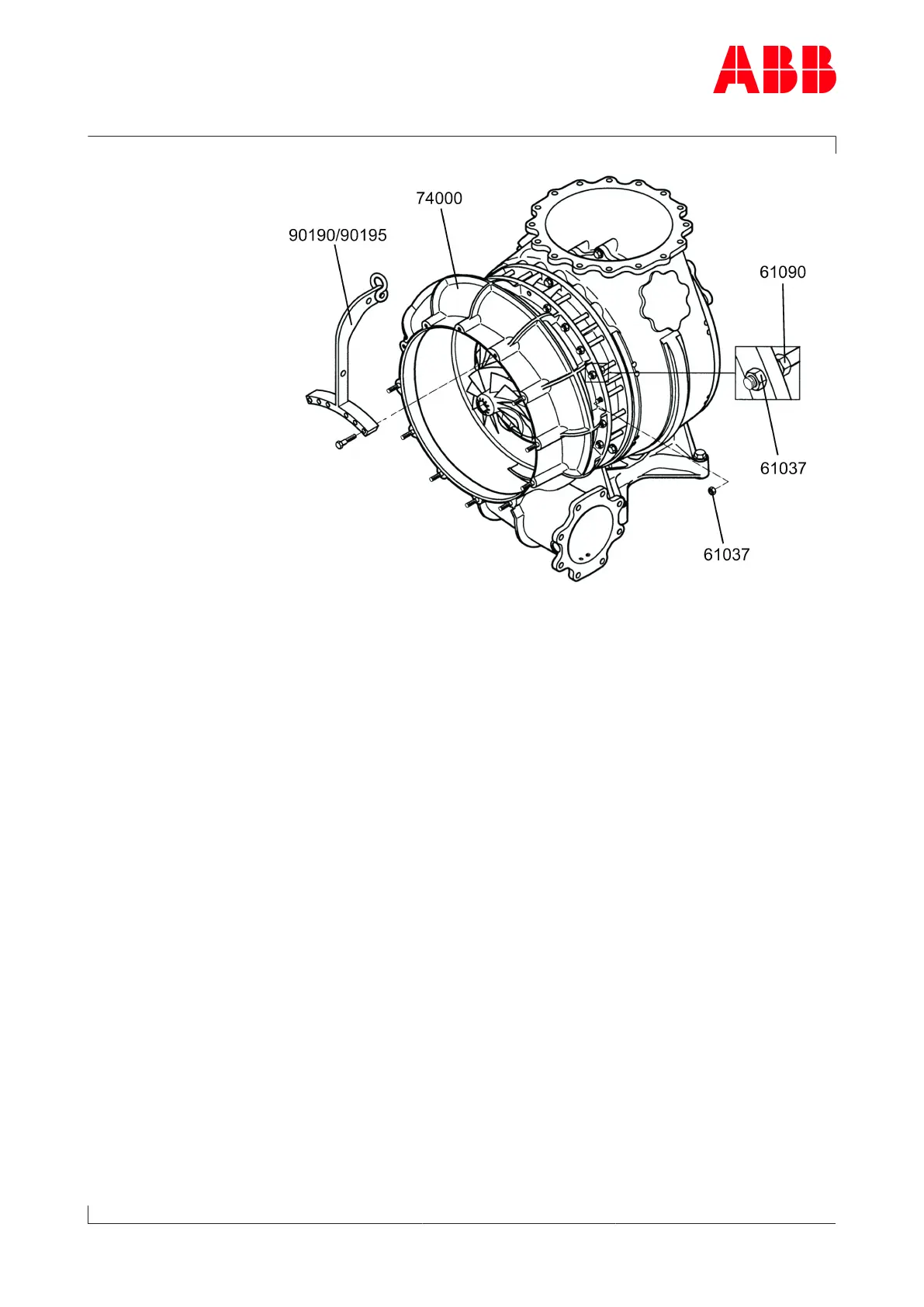

u Fasten set-down compressor casing external part (74000) to crane
using lifting device (90190) and shackle (90195).
u Screw three press-off nuts (61090) onto bearing casing studs, equally
distributed around circumference, and screw up to end of thread by
hand.
u Fit the compressor casing external part (74000) and secure with nuts
(61037).
u Secure three press-off nuts (61090) against compressor casing
(74000) by tightening them to specified torque (see chapter Table of
tightening torques).
