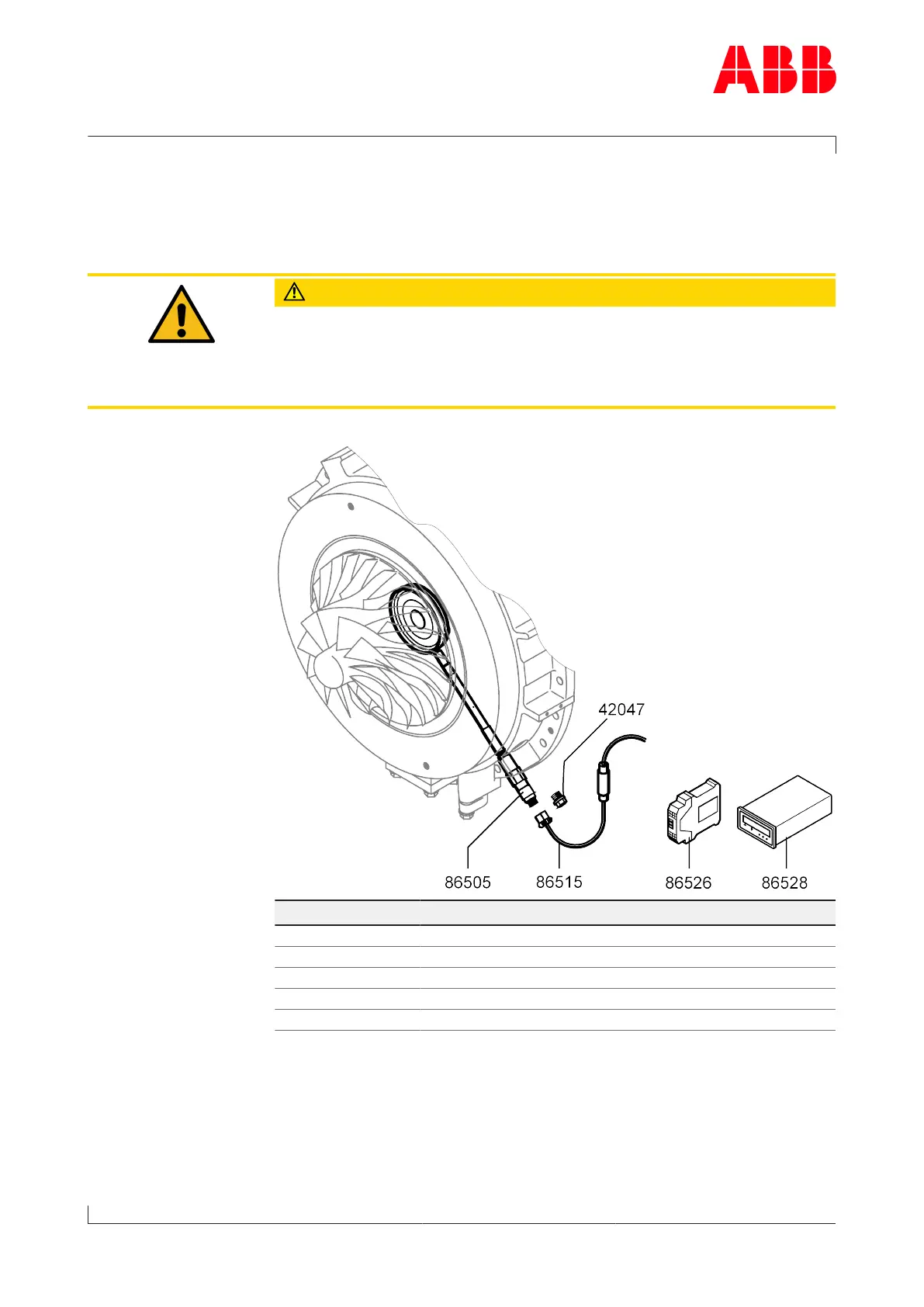

4.4 Speed measurement
A speed measuring system permits continuous monitoring of the tur-
bocharger speed.
CAUTION
Do not use cables as a climbing aid
If you pull the speed measurement cables too hard, contacts can be
pulled out.
u Do not tension the speed measurement cables.
Part number Description
42047 Screw plug
86505 Speed sensor
86515 Cable connector for 86505
86526 F/I converter
86528 Tachometer
4.4.1 Speed differences with multiple turbochargers per
engine
The speeds of all turbochargers on one engine differ only slightly from
each other in normal operation.
