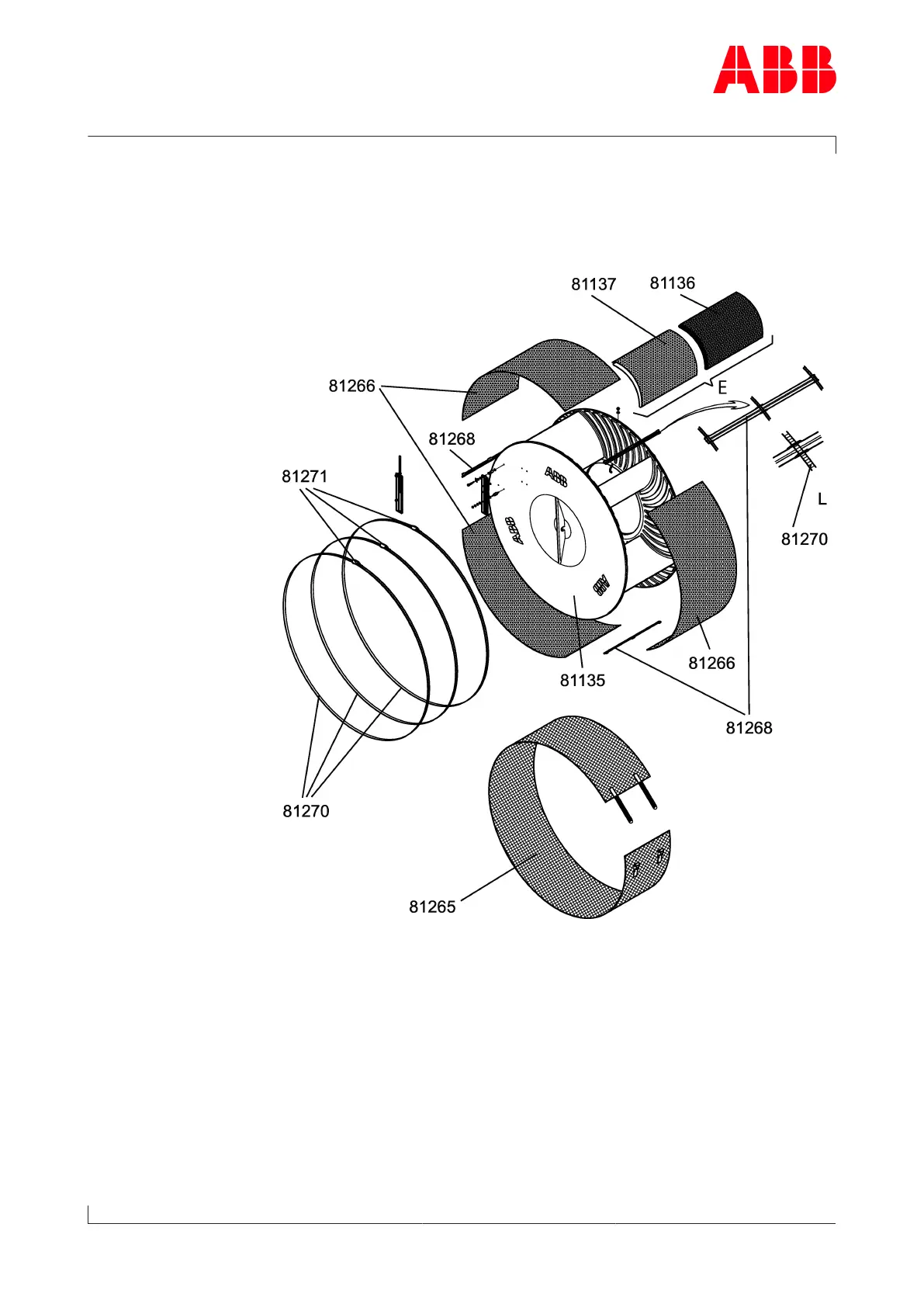

5.2 Cleaning the filter silencer
5.2.1 Filter silencer with tension band
81265Filter ring (if provided) 81266Cover grid
81270Tension band 81136Absorption segment
81271Lock 81137Sheet-metal covering
81268Connecting strip 81135Filter silencer body
EInsert unit = absorption segment + sheet-metal covering fitted
