ABB TPL69-A30 - Fit Cover Plate

Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
9 Taking out of operation at short notice / 9.3 Fit cover plate
© Copyright 2018 . All rights reserved. HZTL2481_EN Revision C May 2018
9.3 Fit cover plate
NOTICE
The cover plate (material: General structural steel, in accordance with
DIN EN 10025-2) must be manufactured in-house according to the
drawing.

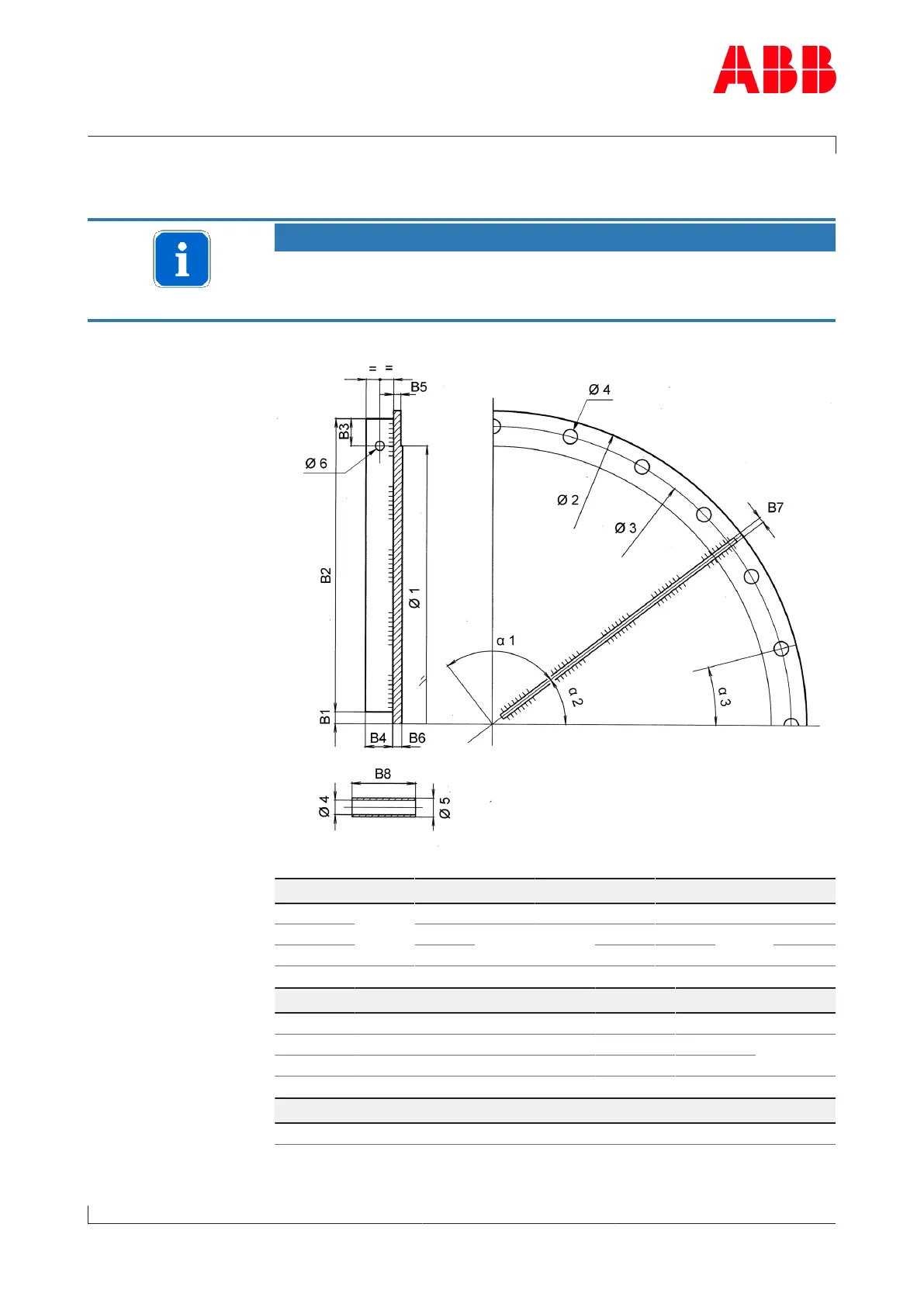

Cover plate dimensions
[mm]
Product B1 B2 B3 B4 B5 B6 B7 B8
TPL69-A 13 385 30 30 8 10 6 84
TPL73-A 450 50 50 9 12 8 94
TPL77-A 535 9 12 107
Product Ø 1 Ø 2 Ø 3 Ø 4 Ø 5 Ø 6
TPL69-A 726 818 779 18 25 15
TPL73-A 844 948 905 20 28 20
TPL77-A 1003 1124 1075 22 30
Product
α
1
α
2
α
3
TPL69-A…TPL77-A 4 x 90° 37.5° 24 x 15°
Page 122 / 136
