Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
8 Disassembly and assembly / 8.5 Removing cartridge group
© Copyright 2018 . All rights reserved. HZTL2481_EN Revision C May 2018
8.5 Removing cartridge group
CAUTION
Locked safety segments (76080) during disassembly
Observe the maximum tightening torque for the nuts (90458) so as not
to shear off the threaded studs of the safety segments (76080).
u Fit four nuts (74027) complete with washers (74018), equally spaced
around circumference, and tighten.
u Remove insulation.
If provided

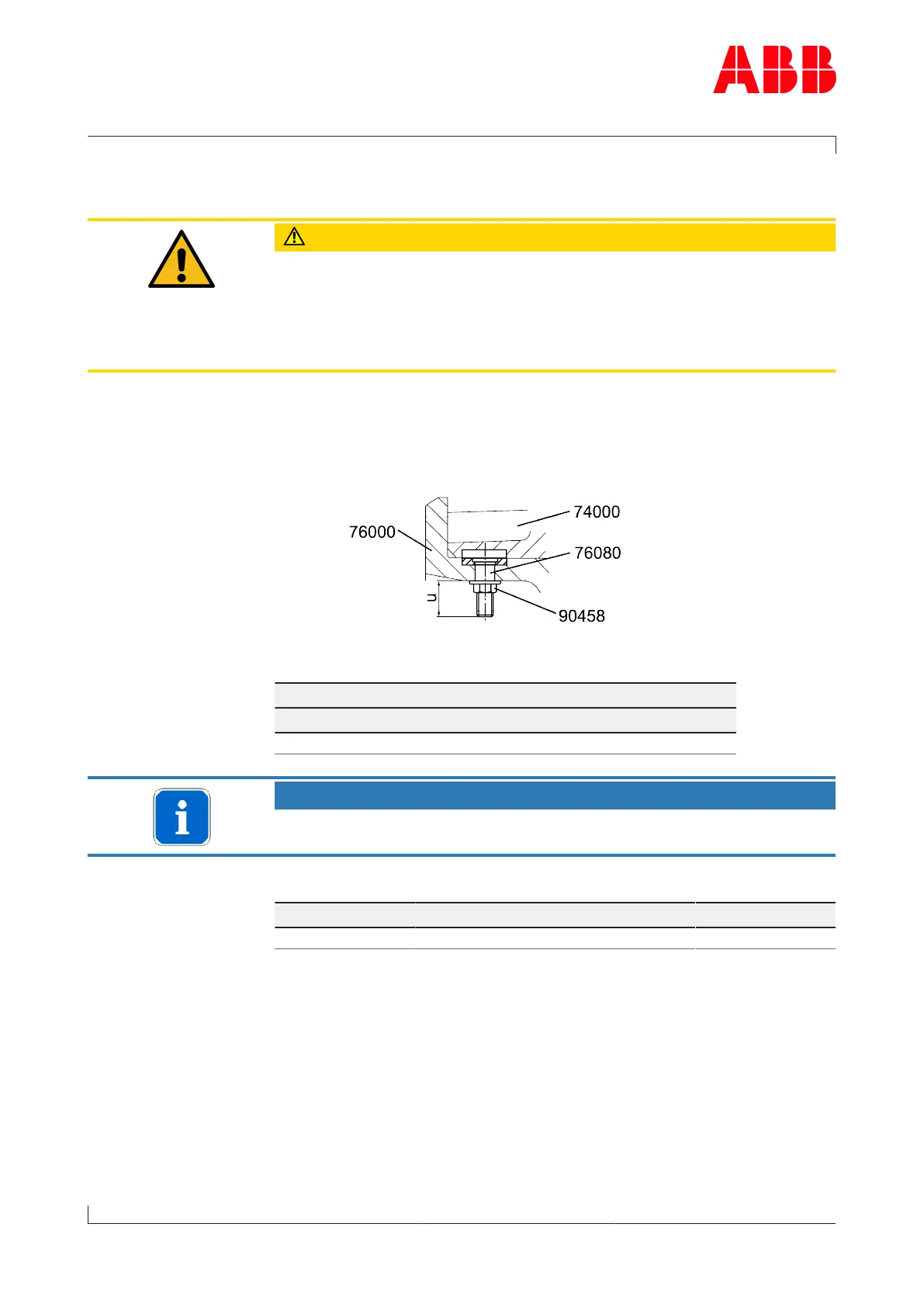

u Take nuts (90458) out of toolbox and screw onto threaded studs of
safety segments (76080) on compressor casing internal part (76000).
u Tighten nuts (90458) to specified torque (see Table of tightening
torques).
Tightening torque for nut (90458)
TPL69-A TPL73-A TPL77-A
20Nm 30 Nm
NOTICE
Note the control dimension (u).
Control dimension u [mm]
Dimension [mm] TPL69-A TPL73-A TPL77-A
u 17.8 18.6 19.0
The compressor casing internal part has now been detached from the
compressor casing external part (74000) and can be removed.
Page 89 / 136
