Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
8 Disassembly and assembly / 8.5 Removing cartridge group
© Copyright 2018 . All rights reserved. HZTL2481_EN Revision C May 2018

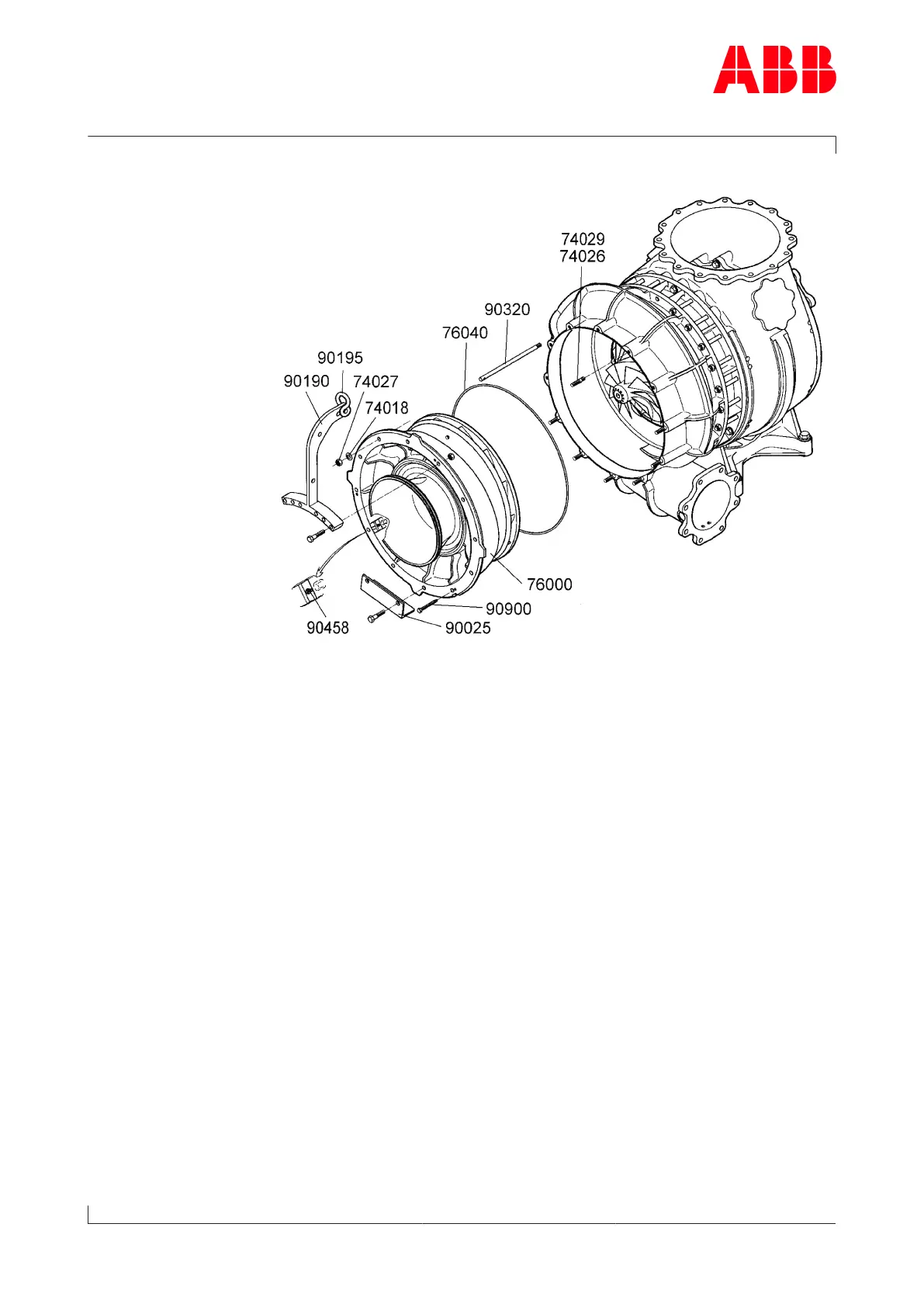

u Unscrew and remove nuts (74027) together with washers (74018).
u Remove six studs (74026/74029) in the upper section and fit four
guide studs (90320).
u Leave two holes free for lifting device (90190).
u Using press-off screws (90900), press off the compressor casing in-
ternal part (76000) until the lifting device (90190) with shackle
(90195) can be attached and secured to the crane.
u Slightly lift compressor casing internal part complete with wall insert
and diffuser, remove guide studs (90320) and then withdraw.
u Fit support angle (90025).
u Set down compressor casing internal part complete with wall insert
and diffuser onto support angle and underlay.
u Remove the O-ring (76040).
