Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
8 Disassembly and assembly / 8.5 Removing cartridge group
© Copyright 2018 . All rights reserved. HZTL2481_EN Revision C May 2018

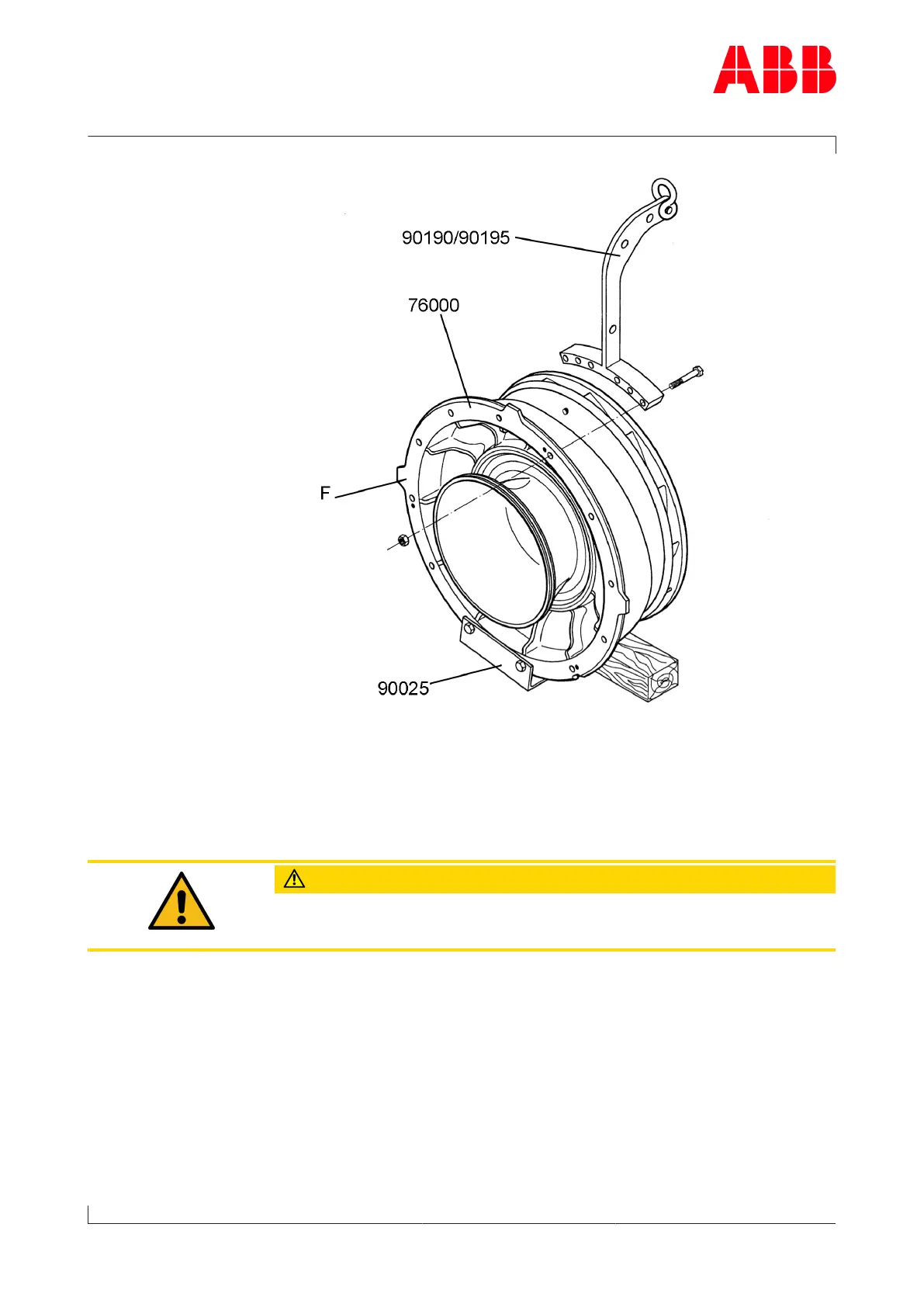

u Loop the lifting device around the rear of the flange (F).
u Carefully rotate the compressor casing internal part with wall insert
and diffuser over the support bracket (90025) and set it down with
the front side of the flange (F) on the underlay.
CAUTION
Make sure that underlay does not shift.
u Check underlay and adjust if necessary.
Page 91 / 136
