Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
2 Safety / 2.9 Lifting loads
© Copyright 2018 . All rights reserved. HZTL2481_EN Revision C May 2018

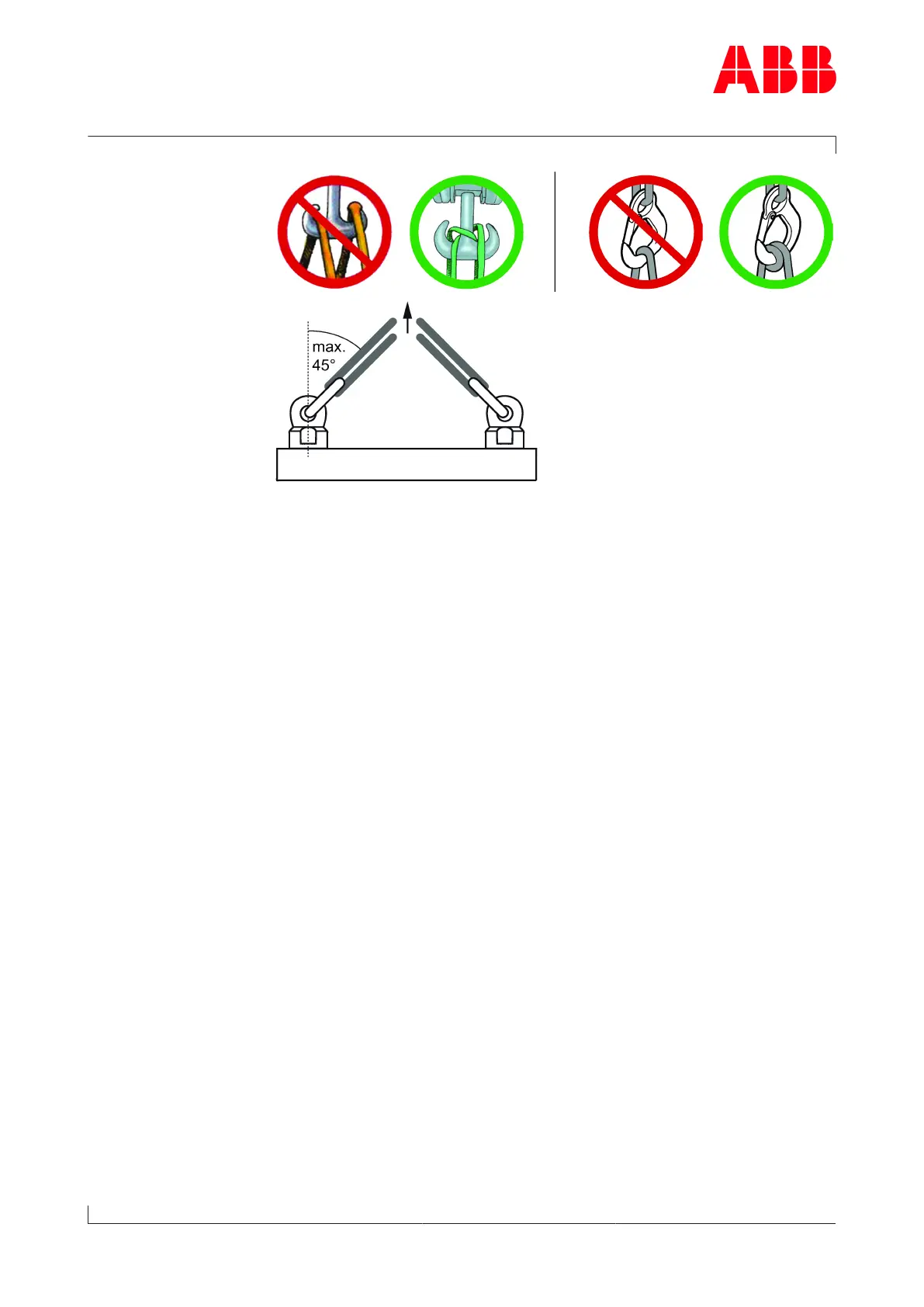

In the case of two or more suspension points, the slinging angle must
not exceed 45°. This avoids excessive loading due to inclined tensile
loading.
u Fasten turbocharger assemblies / components as described in re-
spective handling steps.
u Before attaching slings, allow turbocharger components to cool down
(maximum 80°C).
u Use suitable protection at sharp edges.
u Completely screw in assembly / fitting devices without fail so that
they cannot work loose during use.
u Use assembly / fitting devices only for applications described.
u Make sure removed turbocharger components stand safely and se-
curely.
Page 26 / 136
