Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
7 Removal and installation / 7.2 Removing the turbocharger
© Copyright 2018 . All rights reserved. HZTL2481_EN Revision C May 2018

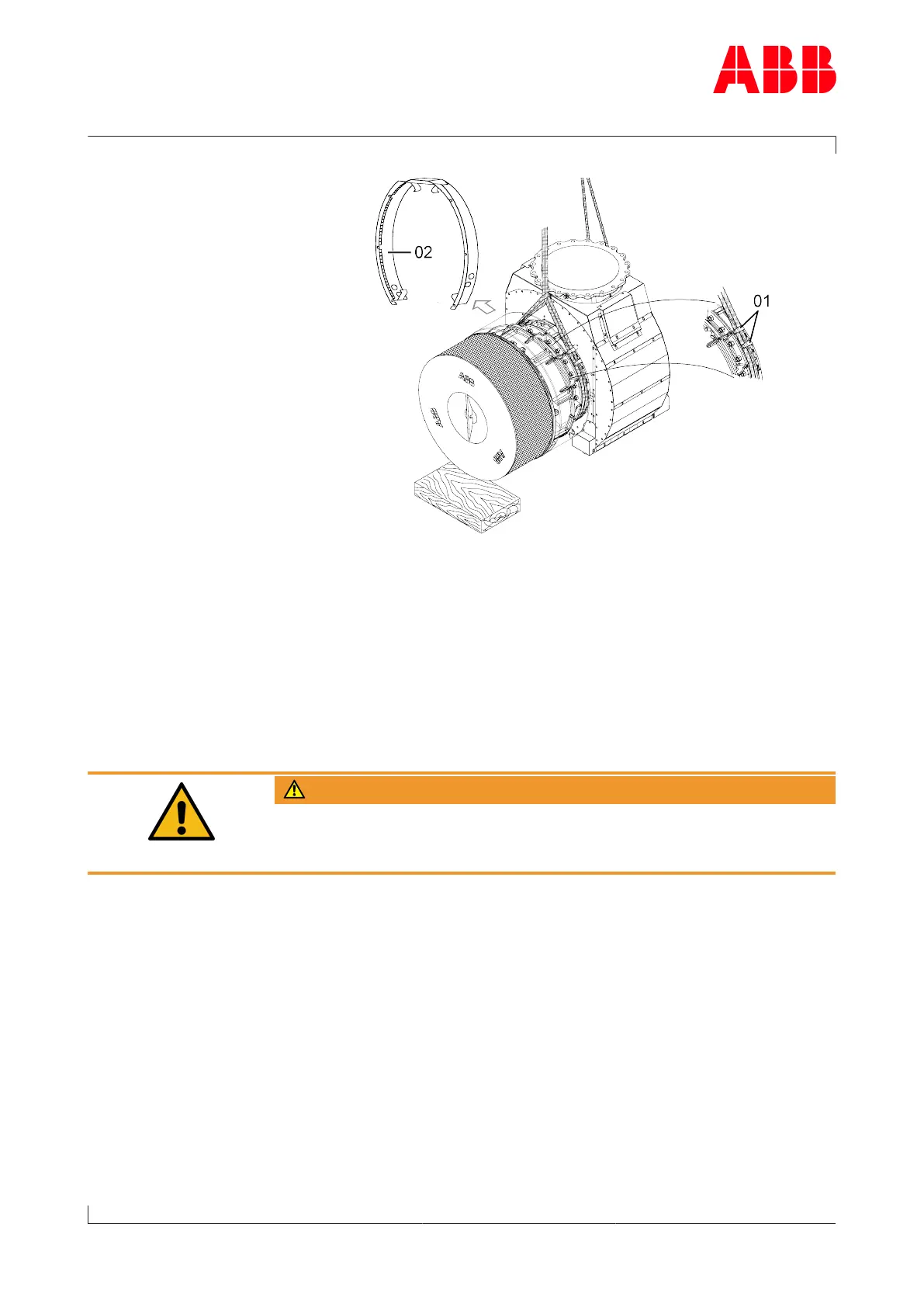

w Ribs (01) not in the middle at the top:
u Completely remove the bearing casing insulation (02) and place a
sling around the bearing casing.
u Attach one lifting gear each to the two fins of the bearing casing
provided for this purpose.
u Loosen the fixing screws at the foot.
u Lift the turbocharger off the engine and set it down to one side.
WARNING
If support for the turbocharger is missing or defective, the turbochar-
ger can tip over during installation and removal and cause serious injur-
ies or even fatal accidents.
u Support the turbocharger at a suitable point.
u Cover the oil connection.
