Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
8 Disassembly and assembly / 8.3 Removing and fitting filter silencer
or air suction branch
© Copyright 2018 . All rights reserved. HZTL2481_EN Revision C May 2018

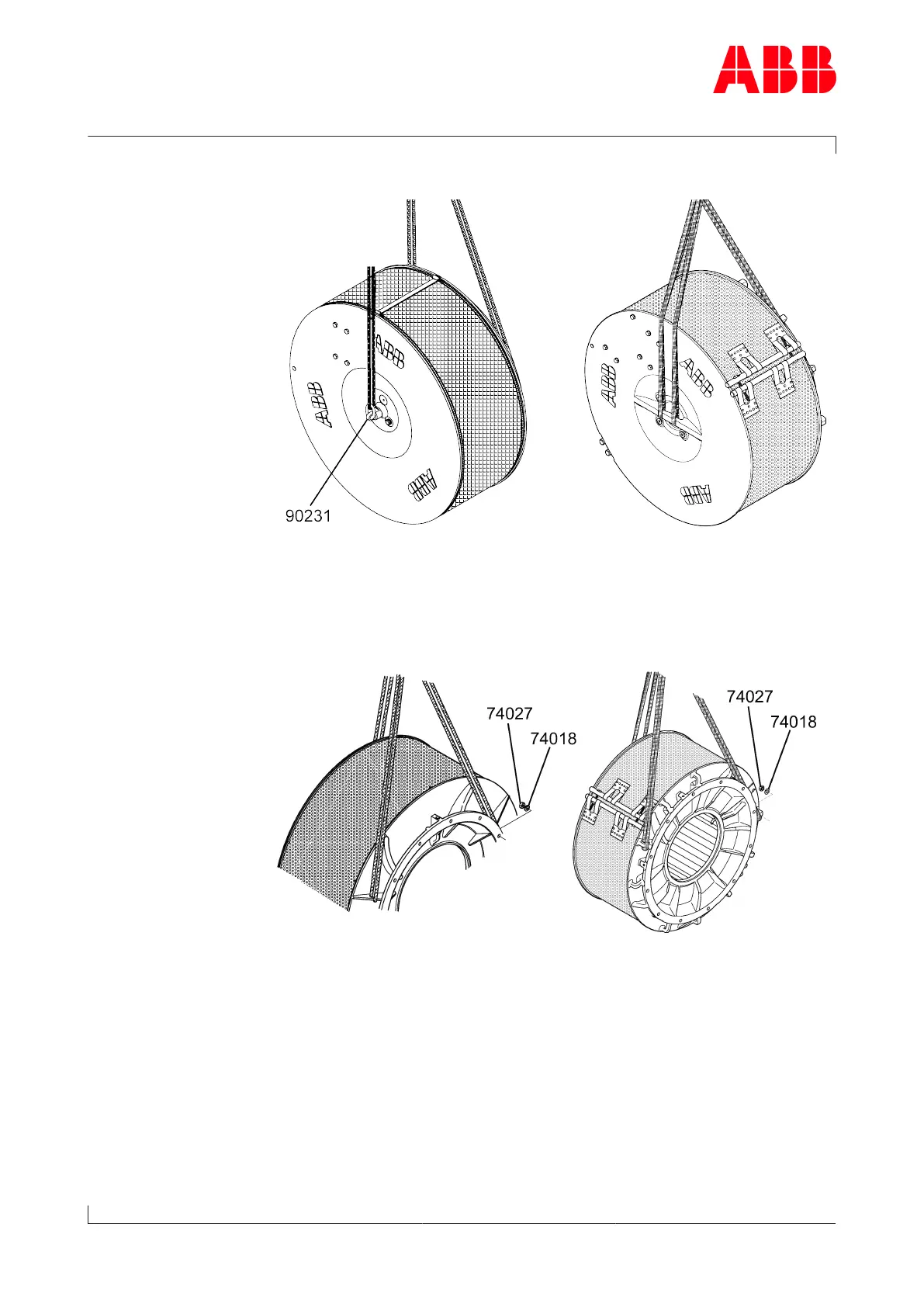

Removing filter silencer
u Remove insulation where necessary.
u Fit swivel lifting eye (90231) to filter silencer.
Or
u Pass lifting gear through rib on filter silencer.
u Pass lifting gear through lugs at back.
u Unscrew nuts (74027) and remove them together with their washers
(74018).
u Remove filter silencer and set down to one side.
Fitting filter silencer
u Fit filter silencer in reverse order.
