Operation Manual / TPS44-F.. - TPS61-F..
8 Disassembly and assembly / 8.3 Disassembling and assembling tur-
bocharger
© Copyright 2020 . All rights reserved. HZTL2412_EN Rev.G March 2020

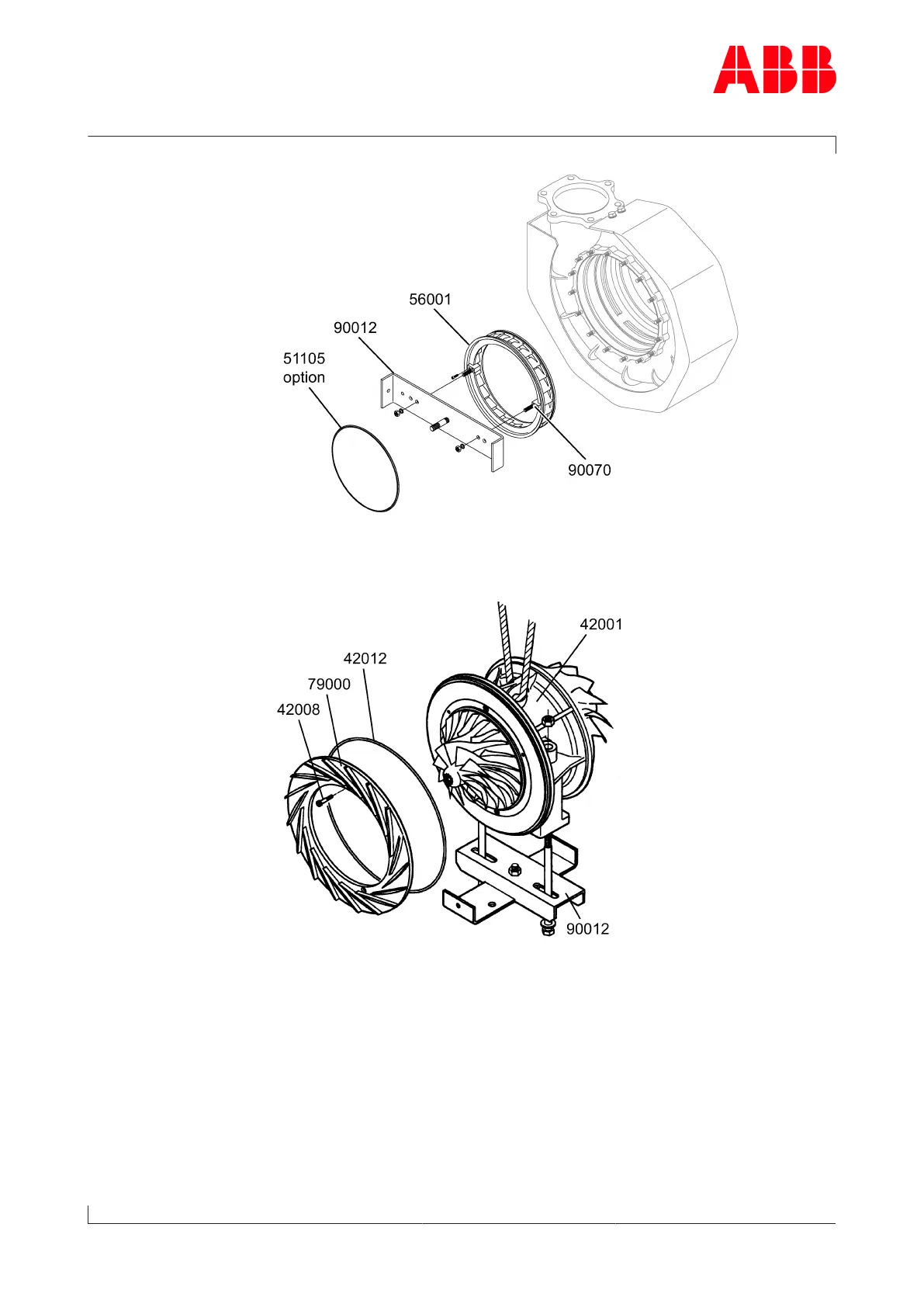

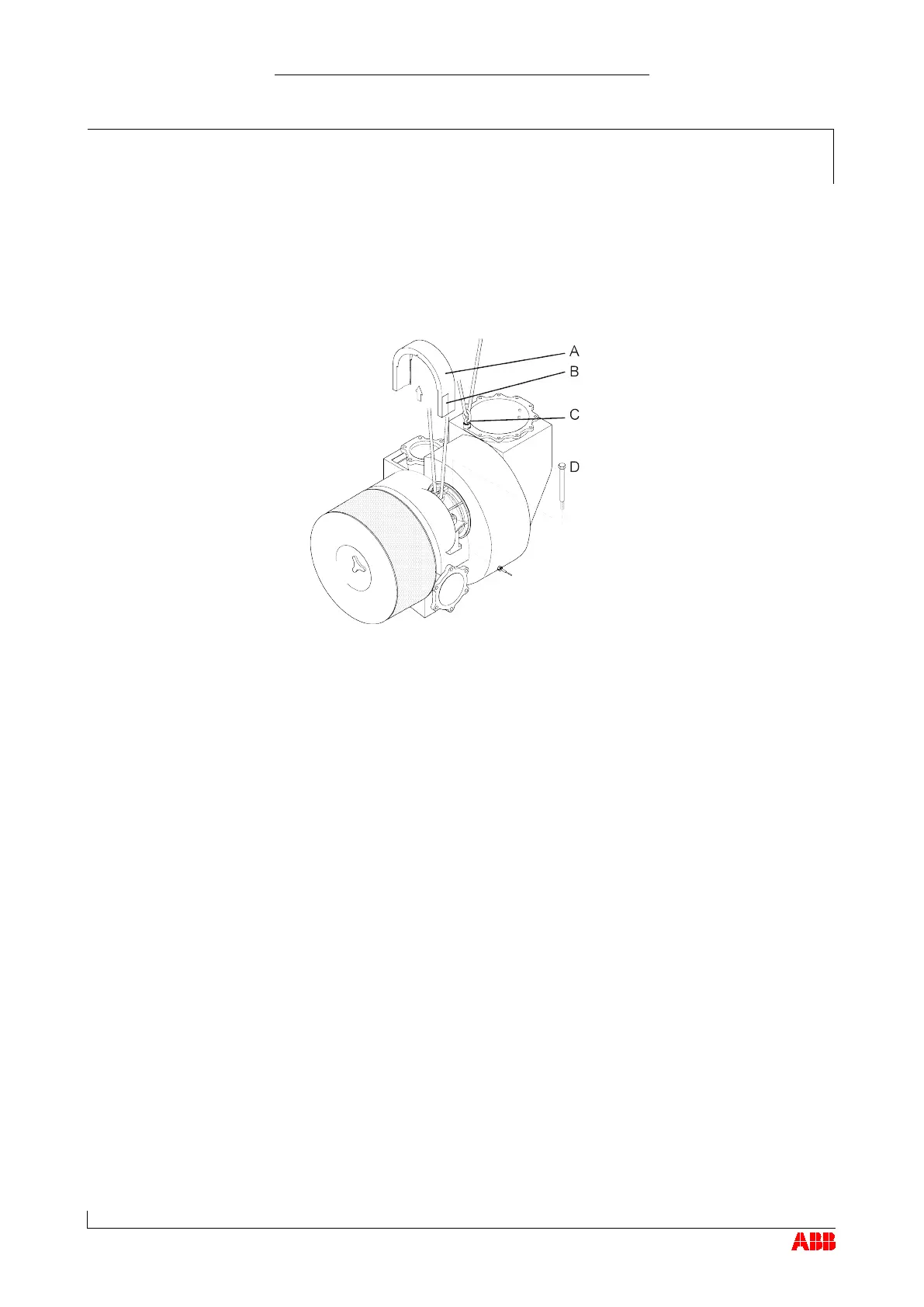

u Withdraw nozzle ring (56001) using two extraction devices (90070)
and withdraw bottom part of service support (90012).
If provided
u Remove C-ring (51105).
Disassembly of diffuser
TPS..-F33
u Mount the cartridge group on the service support (90012) and bolt it
down firmly.
u Loosen screw (42008) and remove diffuser (79000) complete with O-
ring (42012).
u Measure the axial and radial clearances (see the section Axial and ra-
dial clearances).
