Operation Manual / TPS44-F.. - TPS61-F..

Operation

Noise emissions

4.1

Page 44

April 2015 HZTL2412_EN Revision E

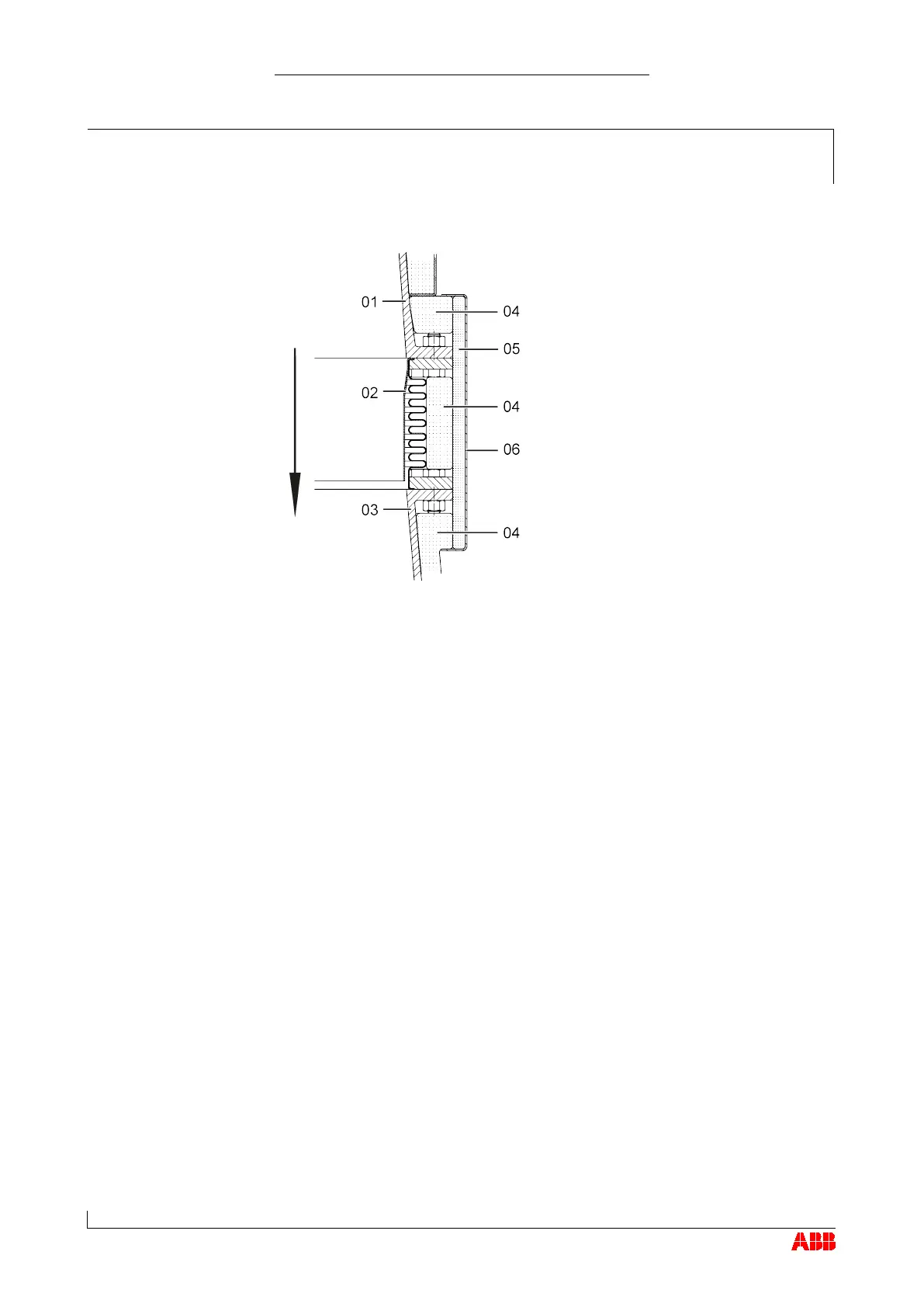

Suggestion for noise insulation of the bellows

01 Compressor casing

Bellows

03 Charge air duct / scavenging air line

04 Insulation pads

05 Insulation mat (at least 15 mm)

06 Sheet metal cover

Table of Contents3
Preliminary Remarks5
Purpose of this Manual5
Layout and Function6
Intended Use of the Turbocharger8
Storage of New Turbochargers and Spare Parts9
Essential Information12
Symbols and Definitions15
Turbocharger Rating Plate16
Contact Address and After-Sales Service18
Safety19
Introduction19
CE Conformity20
Definition of Mandatory Signs21
Definition of Safety Instructions22
Warning Plates on the Turbocharger23
Safe Operation and Maintenance24
Hazards During Operation and Maintenance27
Use of ABB Turbochargers on Gas Engines33
Periodic Checking of the Pressure Vessel34
Lifting Loads35
Start-Up37
Oil Supply37
Inspection Work41
Commissioning after Taking out of Operation43
Operation45
Noise Emissions45
Servicing Work47
Expected Exchange Intervals50
Speed Measurement52
Stopping the Engine56
Maintenance57
Foreword to Maintenance57
Cleaning the Compressor During Operation58
Turbine Cleaning During Operation62
Cleaning Components Mechanically68
Troubleshooting79
Malfunctions When Starting79
Surging of the Turbocharger80
Malfunctions During Operation81
Malfunctions When Stopping85
Speed Measurement System86
Removal and Installation87
Transport87
Turbocharger Weights88
Remove the Turbocharger89
Installing the Turbocharger90
Disassembly and Assembly91
Introduction91
Module Weights94
Disassembling and Assembling Turbocharger95
Axial Clearance a and Radial Clearance B109
Radial Clearances N and R111
Table of Tightening Torques113
Taking out of Operation115
Shutting down the Turbocharger115
Mothballing the Turbocharger119
Taking the Engine out of Operation for up to 12 Months120
Taking the Engine out of Operation for more than 12 Months121
Disposing of Turbocharger Components123
Spare Parts125
Ordering Spare Parts125
View of Turbocharger Showing Part Numbers126
View of Cartridge Group Showing Part Numbers128
