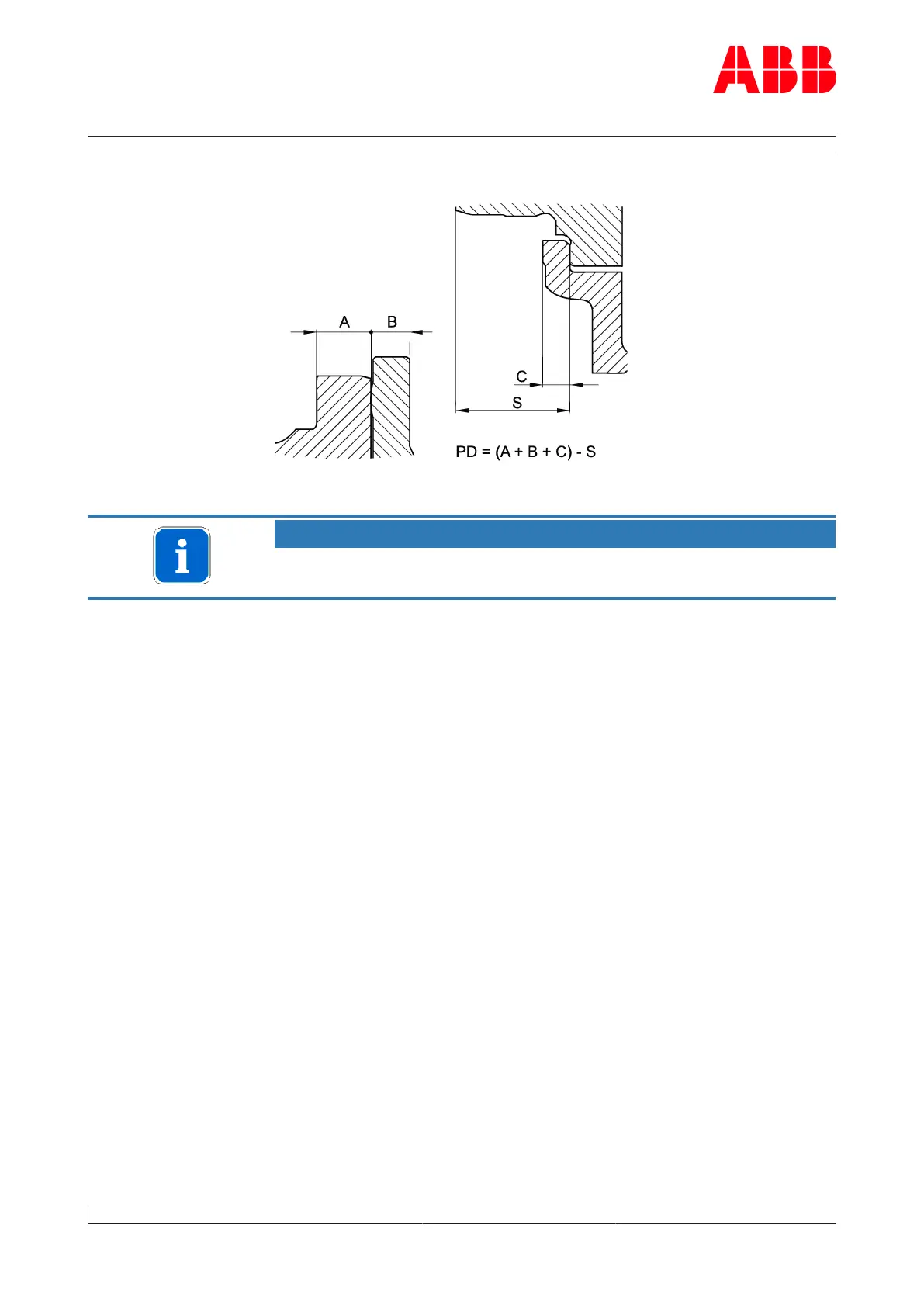

defined application. They are not commercially available products. Use
assembly / fitting devices only for the applications described.

Lifting gear
Equipment for lifting and transporting loads (ropes, chain hoists,
cranes). Lifting gear is not supplied by ABB Turbo Systems.

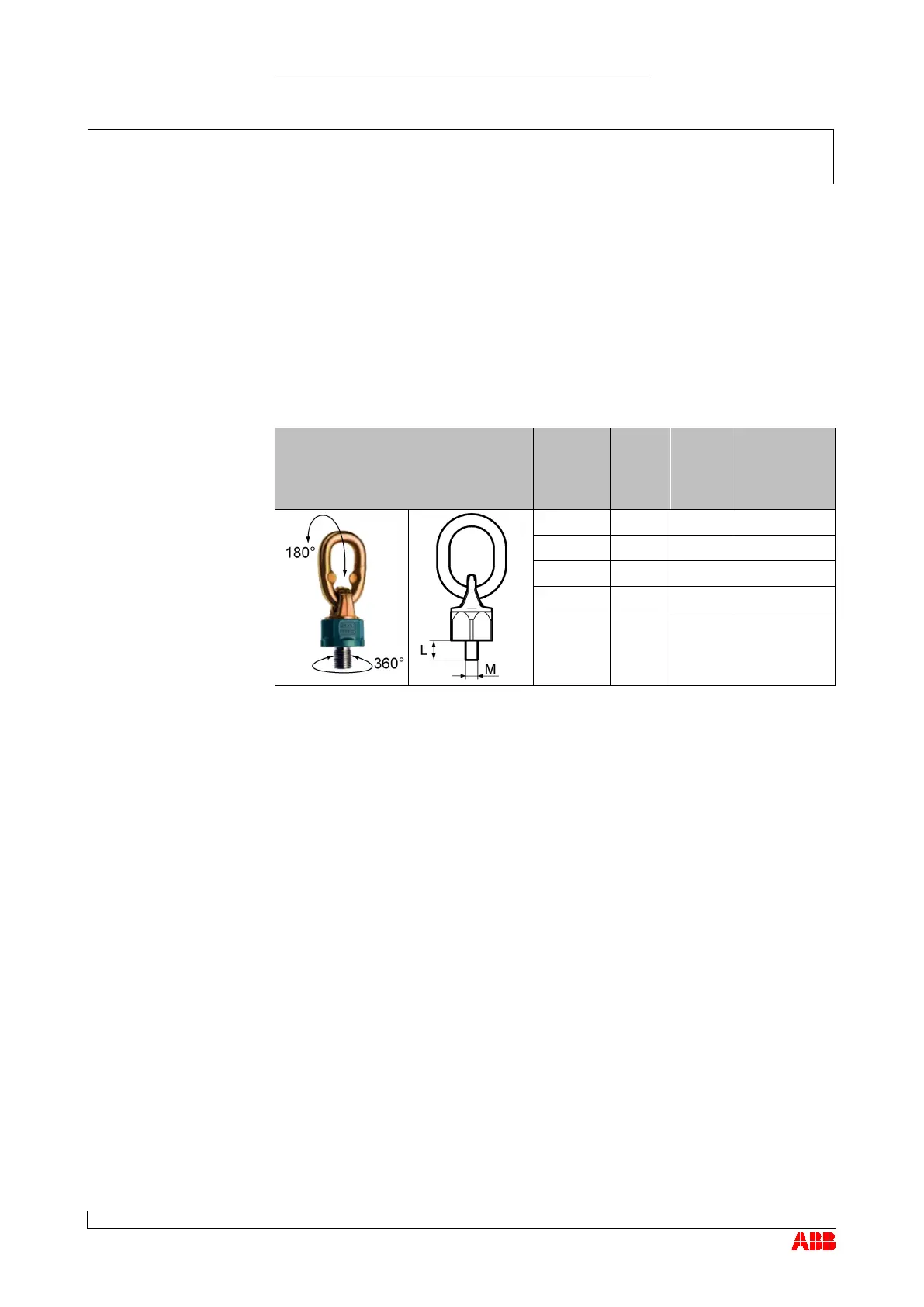

Swivel lifting eye to be used
A swivel lifting eye is required to lift loads safely (not supplied by ABB).
Swivel lifting eye
Product
Thread
M
Length
L
Minimum
load limit
(loading
capacity)
TPS44
M8
13 mm
150 kg
TPS48 M10 17 mm 250 kg
TPS52 M10 17 mm 250 kg
TPS57 M12 21 mm 350 kg
TPS61 M12 21 mm 500 kg
