Operation Manual / TPS48-D/E.. - TPS61-D/E..
Disassembly and assembly
8
Disassembling and assembling
turbocharger
8.3
Page 97
April 2015 HZTL2410_EN Revision D

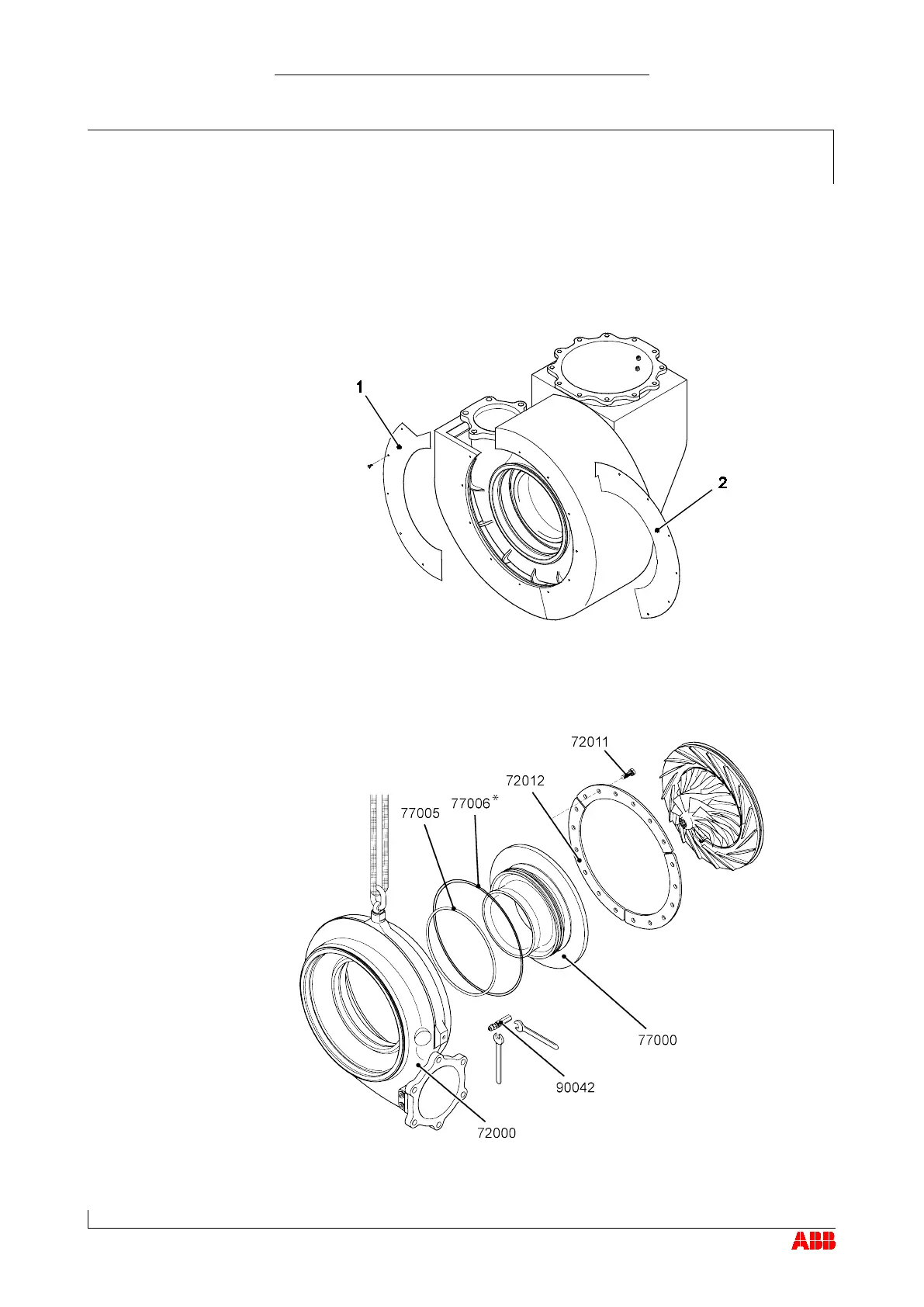

Removing the insulation
 Loosen and remove the screws for the insulation plates (1, 2).
 Remove the insulation plates (1, 2).
 Slightly loosen the screws (72011) and turn the compressor casing
(72000) until the swivel lifting eye can be fastened to the lifting gear.
(77006* only provided with the wall insert with acceleration aid.)
If provided
