42/18-54 EN Electro-pneumatic positioner TZID 13
3.1.3 Mounting to linear actuators
A mounting kit is available for mounting the positioner to a linear actuator in accordance
with DIN/IEC 534. Fig. 3 gives you an overview.
The lever (4, standard version), the screw (5), the spring washer (6) and the spring (14)
are included in the positioner’s delivery. All other items are part of the mounting kit which
has to be ordered separately.
The TZID positioner comes with the lever (4) already installed. All other items are deliv-
ered in a separate package. The lever is available in two lengths: for 10 to 85 mm strokes
(standard version) and for strokes 10 to 150 mm (special version, to be ordered sepa-
rately).
Fasten the angular slide rod (8) to the actuator stem using the screws M6 (10) and spring
washers (9).
1 Angle bracket
2 Spring washer B8
3Screw M8x20
4Lever
5Screw M4x8
6 Spring washer B4
7Plain washer A8, 4
8 Angular slide rod
9 Spring washer B6
10 Screw M6x10
11 Bolt
13 Nut M6
14 Spring
15 Spring washer B6
16 Plain washer A6, 4
17 U-bolt
18 Nut M8
18
2
3
3
2
1
17
8
9
10
20 30 40 50 60 70 80
6
5
7
7
11 14
13
15
16
14
4
4

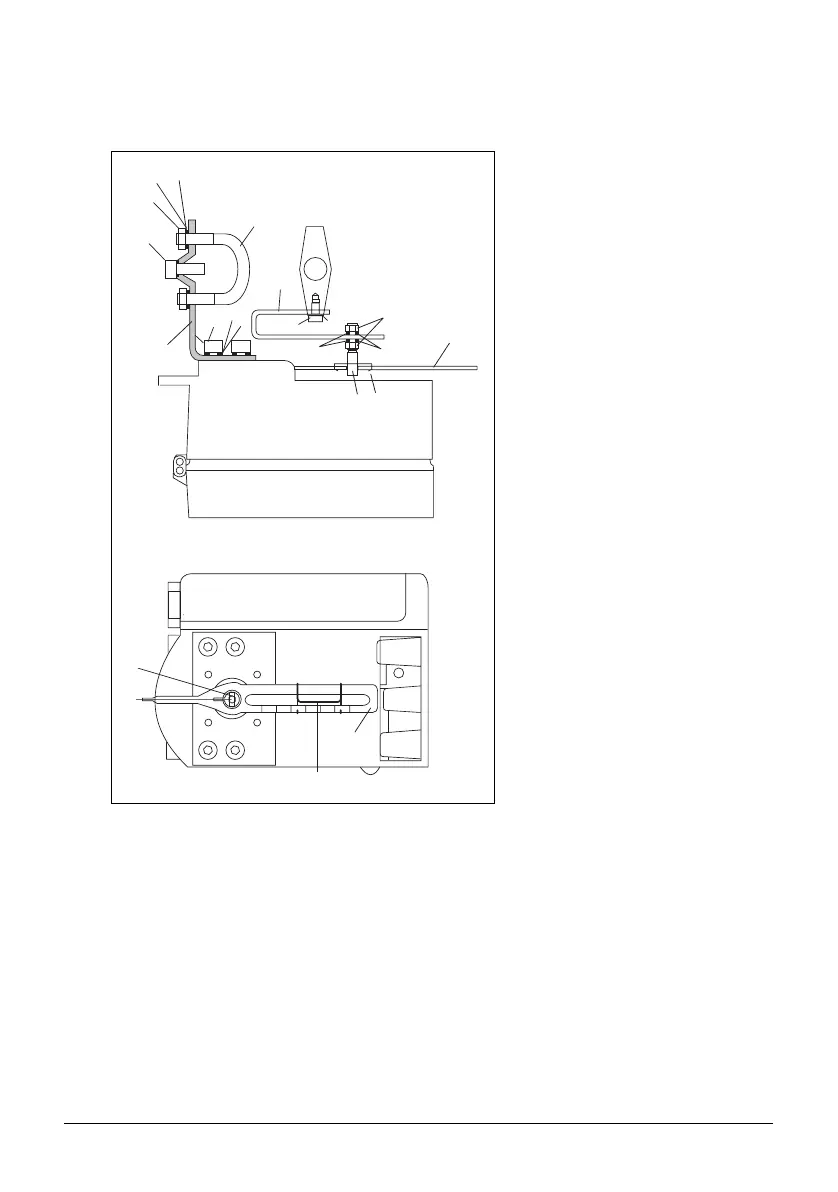

Fig. 3 Mounting kit for linear actuators
