3.3.3 Overview
Two threaded bore holes 1/2 - 14 NPT or M20 x 1.5 are available on the right-hand side
as the cable entry into the case. One is equipped with a cable gland and in the other a
pipe plug is mounted. In its standard version the TZID positioner is delivered with the
cable gland already installed.
The terminals have the following assignment:
Cable entries
1 / 2 - 14 NPT
or M20 x 1,5

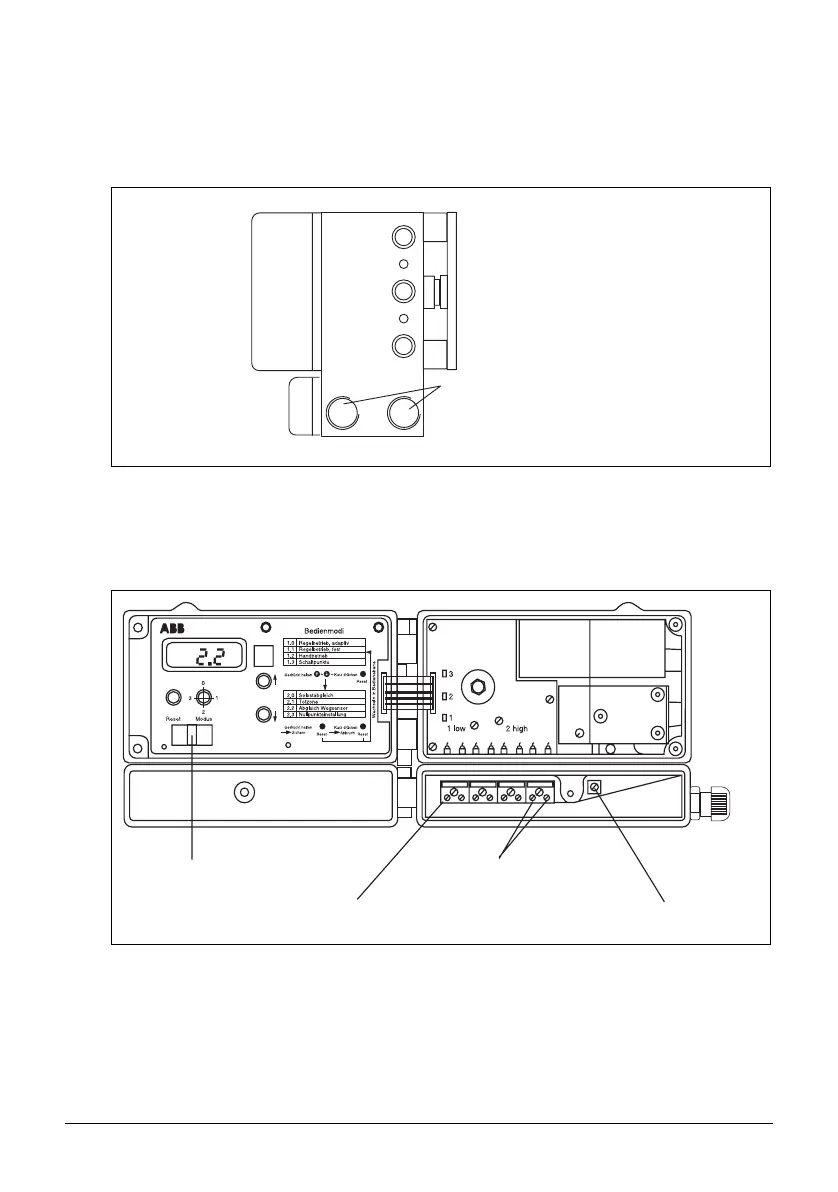

Fig. 18 Cable entries
Connector for
LKS adapter
Terminal block,
8-pole
2-mm jacks
for FSK modem
Grounding terminal
Fig. 19 Terminals
