Electrical connections
42/18-84-EN TZIDC, TZIDC-110, TZIDC-120 25

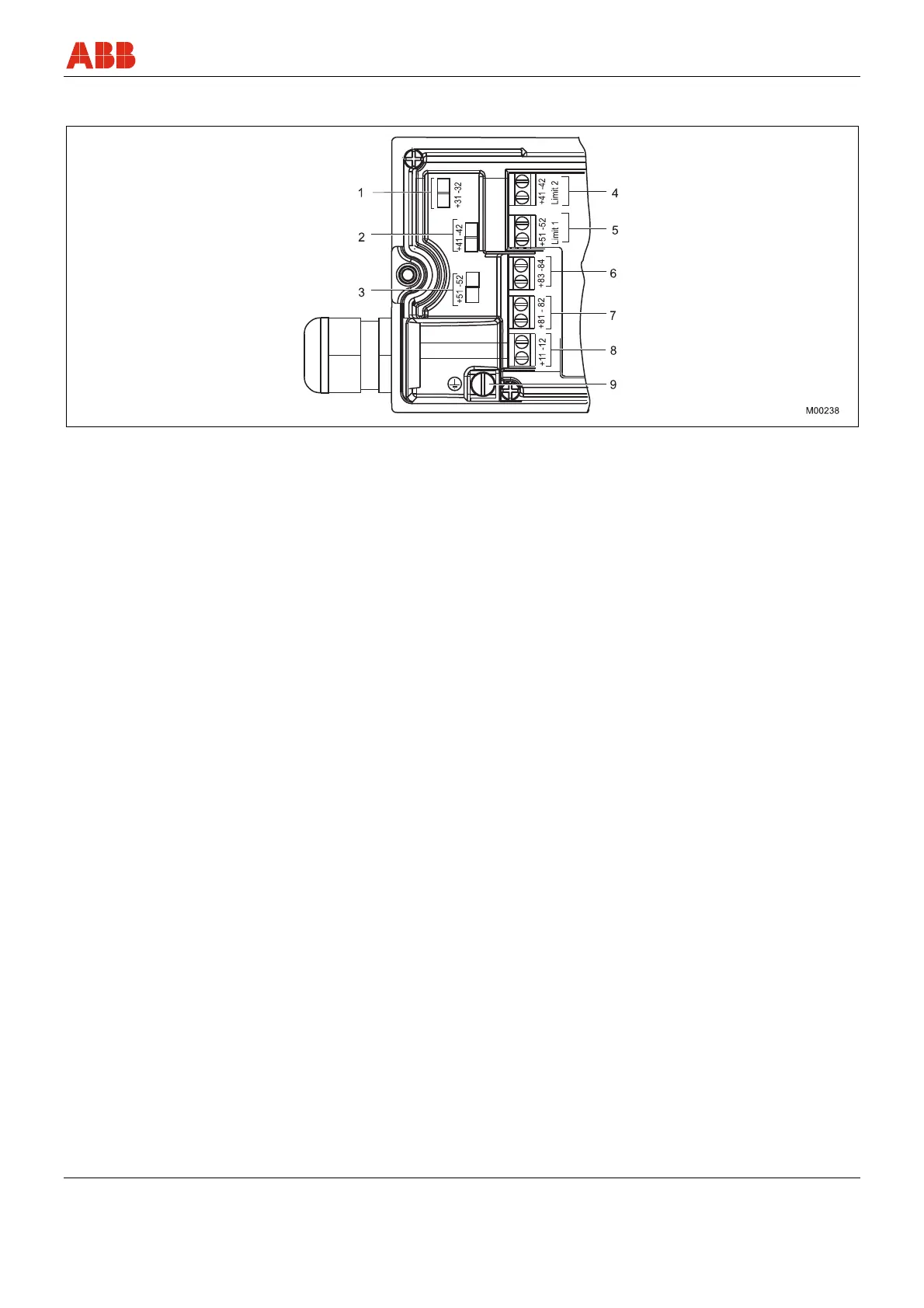

5.1 Screw terminal assignments
Fig. 16
1 Module for analog position feedback
1)
2 Module for digital feedback
1)
or service switch of
emergency shutdown module
3 Module for digital position feedback
1)
or terminals of
the shutdown module
4 Installation kit for digital position feedback, either
proximity switches or 24 V microswitches
5 Same as 4
6 Digital output DO
1)
7 Digital input DI
1)
8 Signal 4 ... 20 mA / Bus connector
9 Grounding screw
1) TZIDC only
