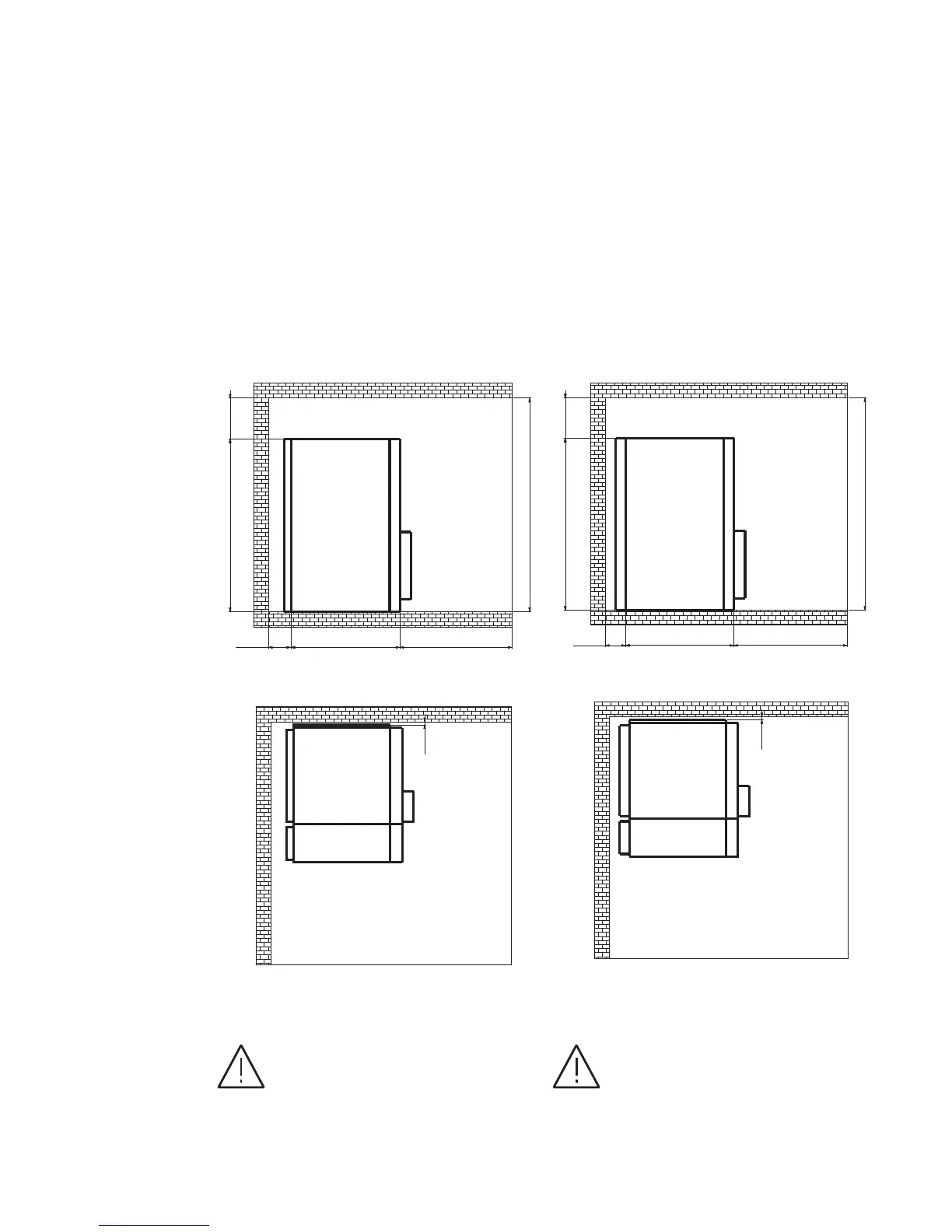

Figure 27. Minimum distances from the walls of the installation room,
solution IAC A-FL 12.5 kA 1s with filters installed on each individual unit
Figure 28. Minimum distances from the walls of the installation room,
solution IAC A-FLR 16 kA 1s with filters installed on each unit
ATTENTION
IAC A-FL version – Do not access the rear part of
the switchgear while this is under service
conditions. Compliance with the installation
distances is mandatory
ATTENTION
IAC A-FLR version – No access limitations to the
Swg Room. Installation distances to be respected
Room layout
IAC A-FL 12.5 kA filters IAC A-FLR 16 kA against a wall
