XIO USER MANUAL | 2106424MNAB | 101

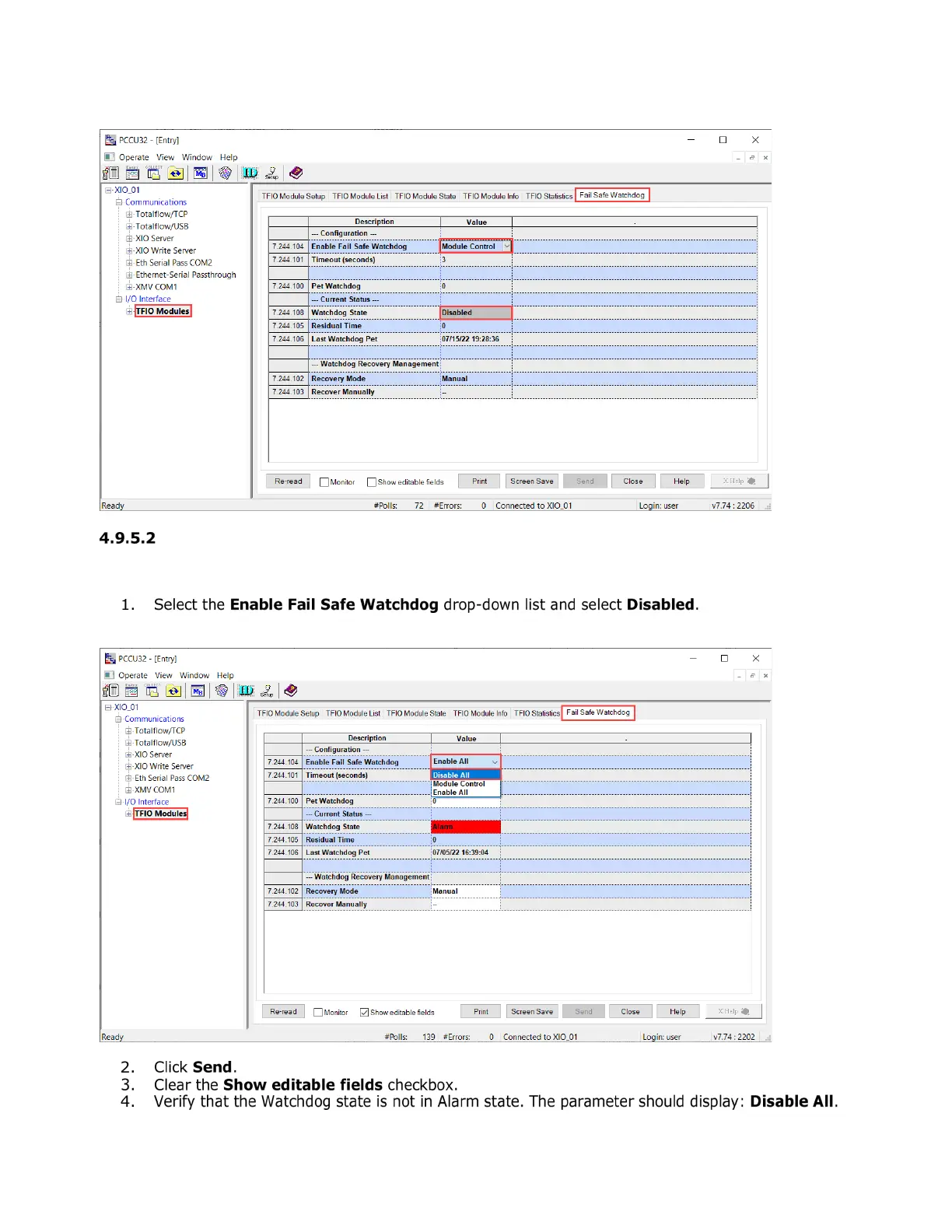

Figure 4-93: Clear Watchdog State from Alarm to Disabled (Module Control mode)
Disable the Fail Safe Watchdog
If you do not wish to enable the Fail Safe Watchdog function, disable it for all outputs on the modules.
To disable the watchdog and clear the alarm state:
Figure 4-94: Disable Fail Safe Watchdog on XIO TFIO modules
