44 | XIO USER MANUAL | 2106424MNAB
The Show editable fields option is available at the bottom of PCCU entry
screens. When you select this option, user
-configurable fields display white. Please note that when
this option is selected, some fields that display function statuses may not show color. If you wish to
show
colors, then clear this option and always remember to click Re-read to refresh the screen.
Proceed to configure the device in section 4.5.
4.5 Configure basic XIO parameters
This section covers basic setup and configuration of the XIO after the local connection is established. This
procedure assumes that PCCU communication setup is already configured for the appropriate port type:
USB or Ethernet.
You must change the XIO factory default Station ID at first time installation.
Unique Station IDs differentiate every XIO and their advertised services on a network. I
n multi-XIO
installations, ensure all assigned IDs are unique before connecting the XIOs to the same network.
Station ID updates after the remote controller and the XIO have established connection and are
operational causes communication failure and servic
e disruption.
To configure the XIO:

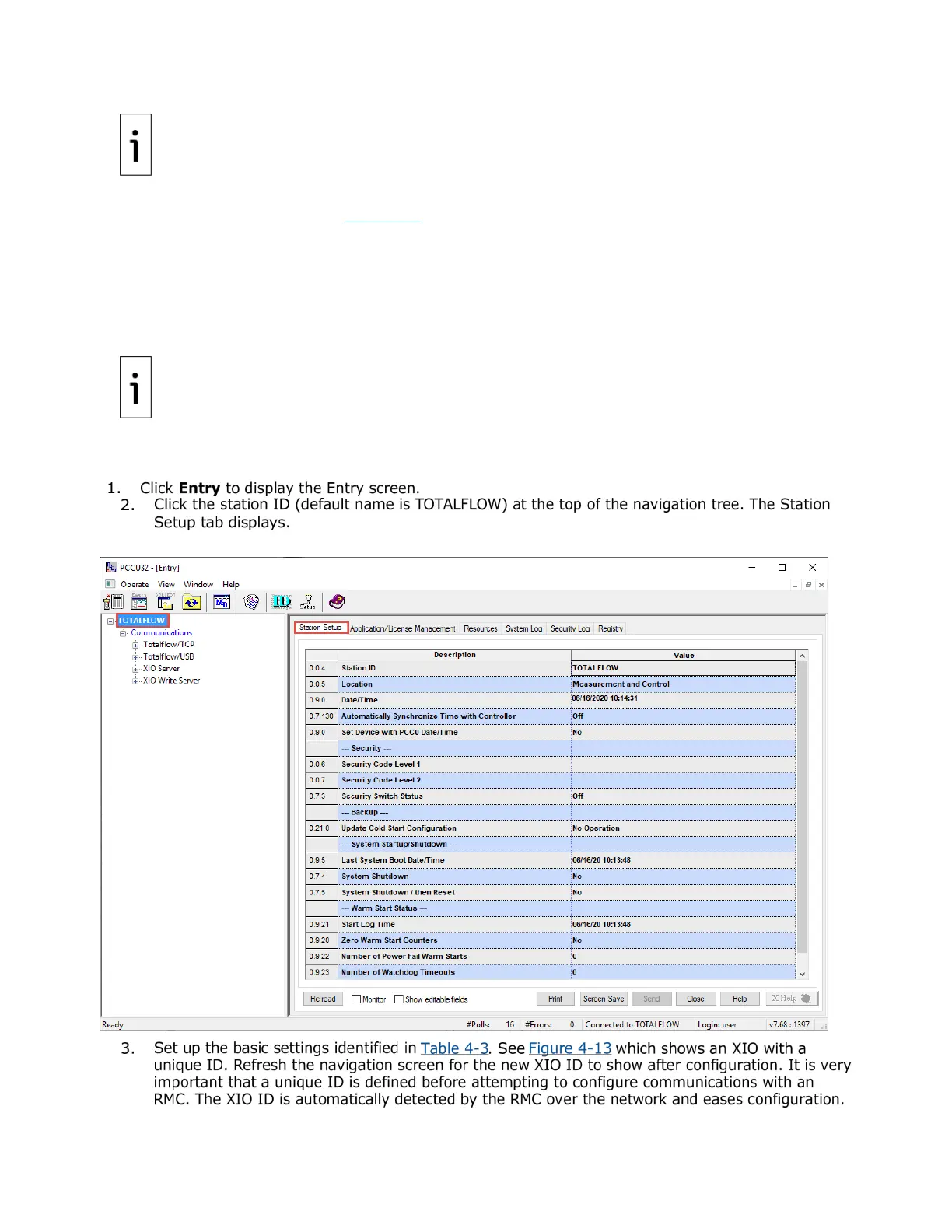

Figure 4-12: XIO Station Setup default screen
To Next Page
