176 | XIO USER MANUAL | 2106424MNAB

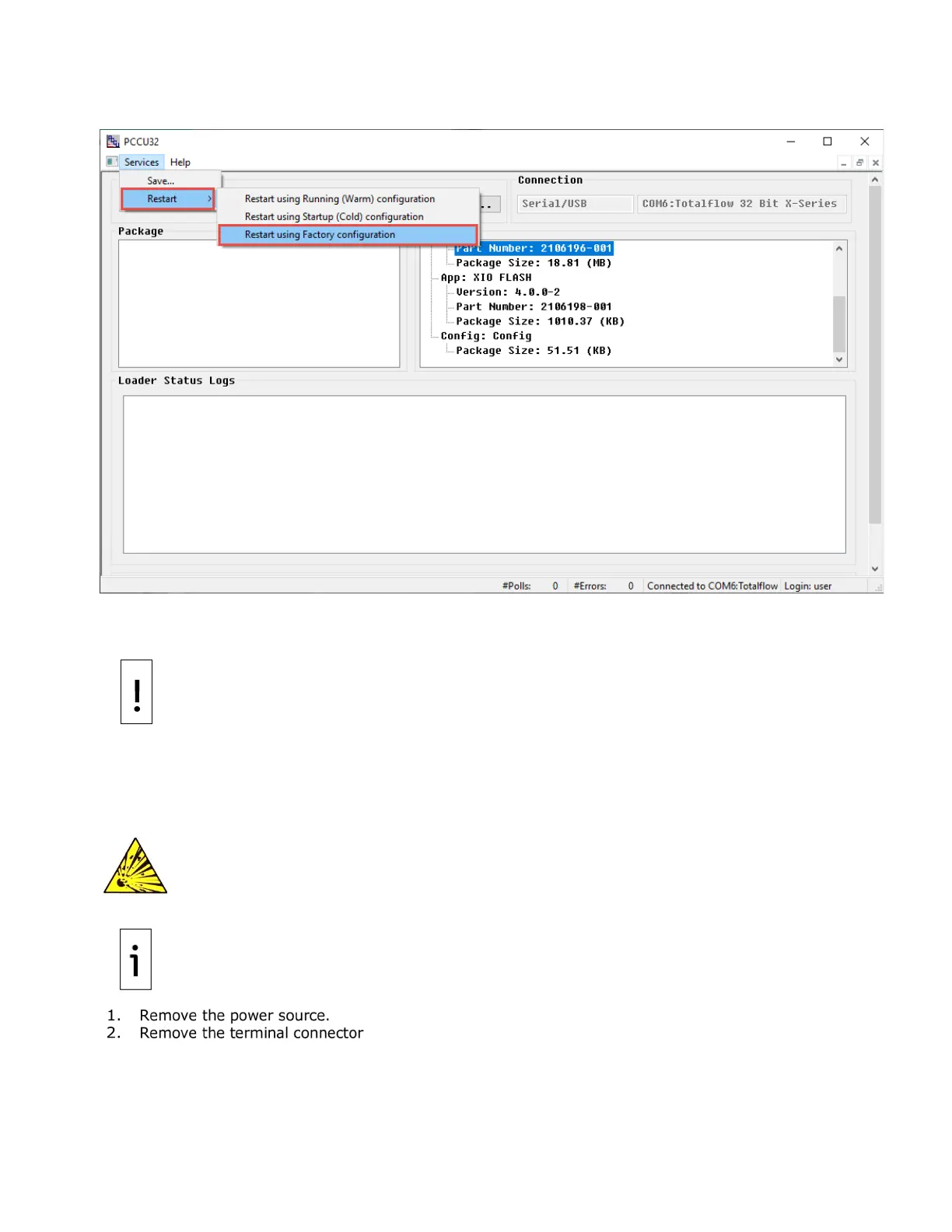

Figure 8-35: Factory restart using the device loader
8.6 Remove and restore power
– Equipment damage. Remove the external power connections before removing all other
cables, boards, and field connections.
Connection or disconnection of cables and wires on the
electronic board while power is
connected can damage the electronic components.
8.6.1 Remove power from the device
It might be necessary to remove power from a device for maintenance. This procedure describes the
removal of the power port terminal connectors from the XIO. You do not need to remove individual wires.
– Serious damage to health / risk to life. Explosion Hazard: Do not connect or
disconnect connectors or their terminations while energized
unless the area is known to be non-
: Remove the power connector by inserting a small, slotted screwdriver between
the connector and the housing.
