126 | XIO USER MANUAL | 2106424MNAB

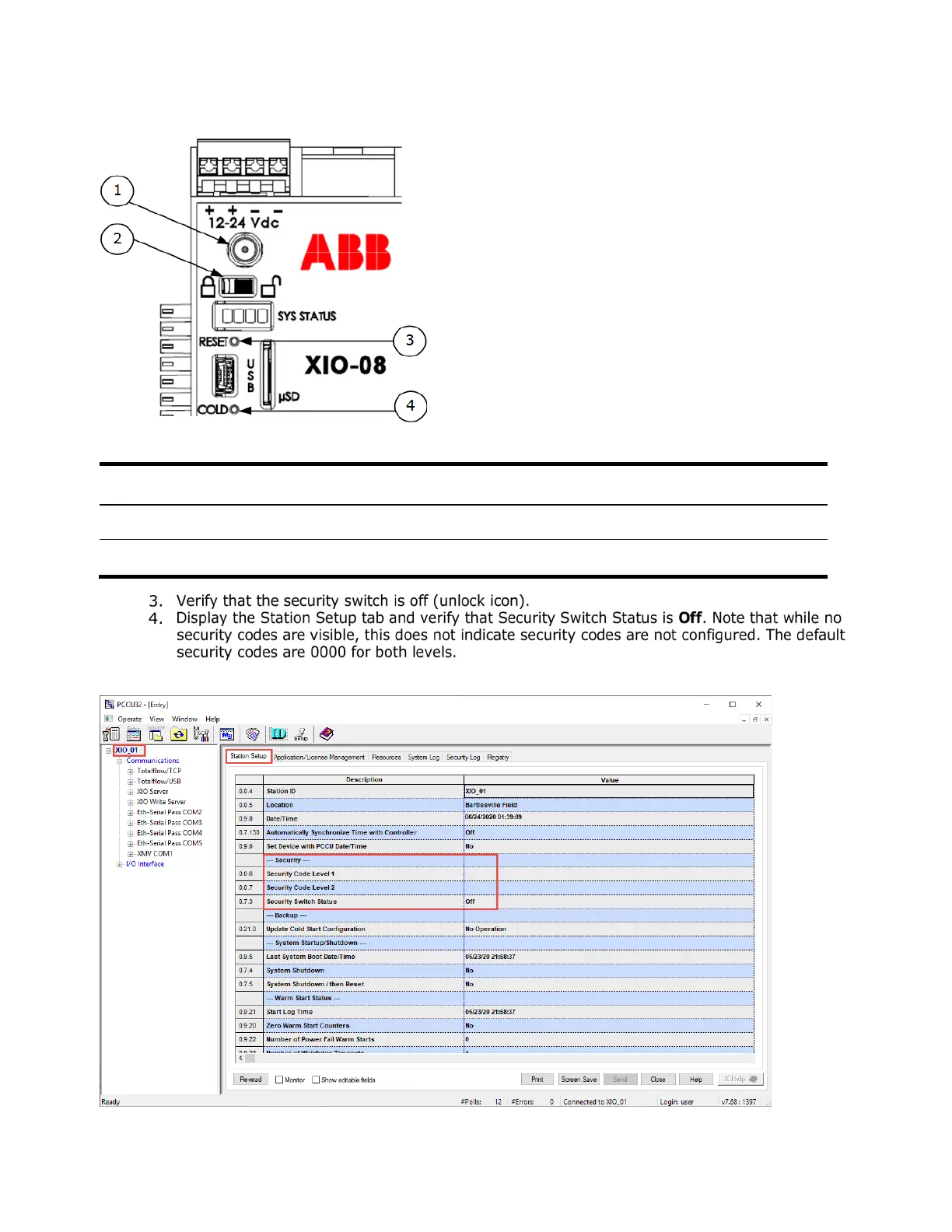

Figure 7-2: XIO security switch

Legend: XIO security switch

Description

Antenna socket

Reset button

Security switch

Cold button

Figure 7-3: Station Setup tab – Security switch status
