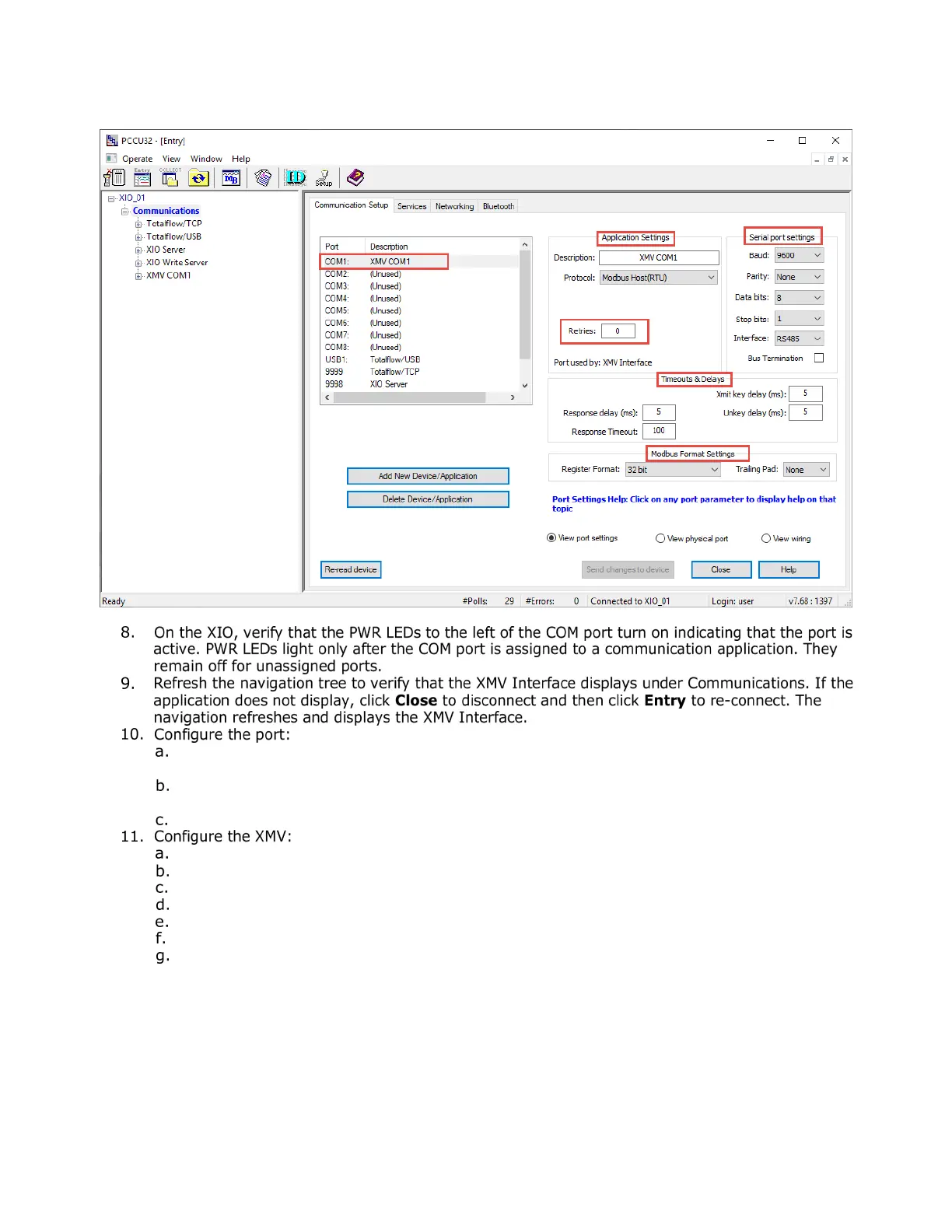

Figure 4-47: XMV Interface for XIO COM1 – default communication and format settings
Expand the XMV Interface instance, then select Communications. The Setup tab displays
with the port parameters for communication with the peripheral.
Verify the configuration parameters. The Setup screen reflects the default parameter values
from the Communication Setup tab and additional parameters.
Configure parameters as required.
On the communication tree, select XMV1, then select the Setup tab.
If the Scroll Displays field, under the XMV Displays section is enabled, change to Disabled.
Click Send. This activates parameter fields for configuration.
Configure the required parameters.
Select Enable in the Scan drop-down list.
Click Send.
Verify that the Set Status displays OK.
