Abit AB9 Pro - Wake-Up Header

Hardware Setup
AB9 Pro, AB9 2-5

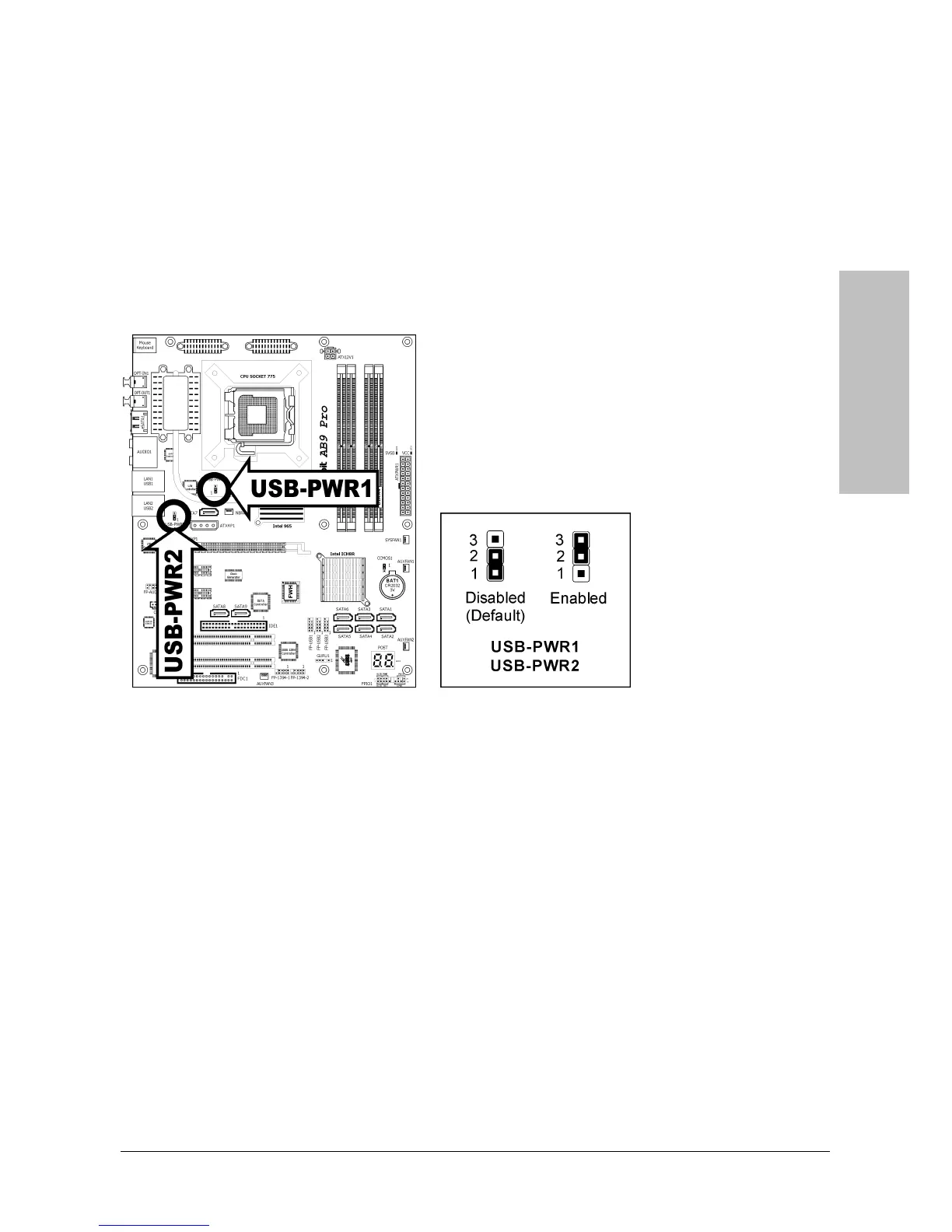

2.3.2 Wake-up Header
These headers use a jumper cap to enable/disable the wake-up function.
• USB-PWR1:
Pin 1-2 shorted (Default): Disable wake-up function support at USB1 port.
Pin 2-3 shorted: Enable wake-up function support at USB1 port.
• USB-PWR2:
Pin 1-2 shorted (Default): Disable wake-up function support at USB2 port.
Pin 2-3 shorted: Enable wake-up function support at USB2 port
