Hardware Setup
AB9 Pro, AB9 2-19

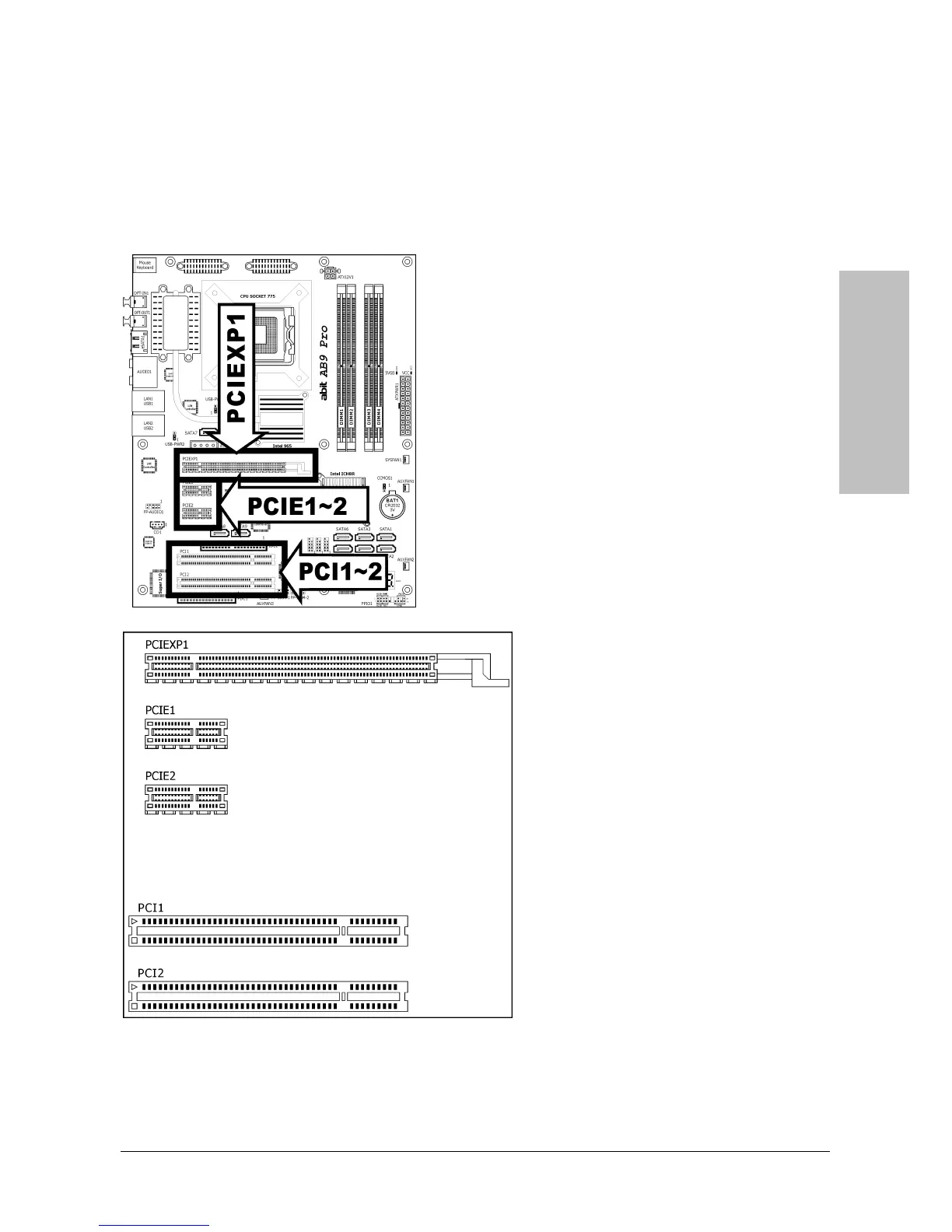

2.6.7 PCI and PCI Express X16, X1 Slots
Install PCI Express X16 graphics card into slot “PCIEXP1”.
Install PCI Express X1 cards into slots “PCIE1” and/or “PCIE2”.
Install PCI cards into slots “PCI1” and/or “PCI2”.
