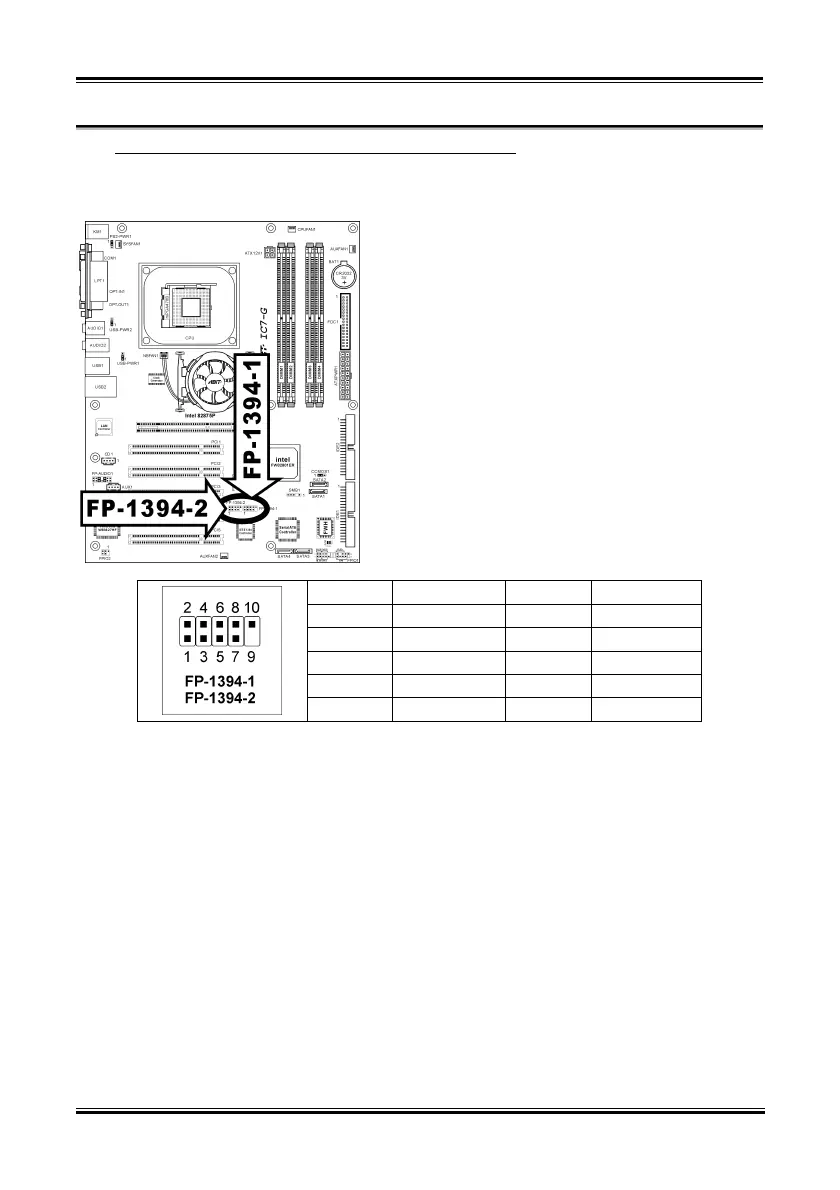

Abit IC7-G - Additional IEEE1394 Port Header [FP-1394-1, FP-1394-2]

2-12 Chapter 2
(8). Additional IEEE1394 Port Header [FP-1394-1, FP-1394-2]
These headers each provide one additional IEEE1394 port connection through an extension cable and
bracket.
Pin Pin Assignment Pin Pin Assignment
1 TPA0 + 2 TPA0 -
3 GND 4 GND
5 TPB0 + 6 TPB0 -
7 +12V 8 +12V
9 NC 10 GND
IC7-G
