Abit KV7 - Front Panel Audio Connection Header

Hardware Setup 2-11

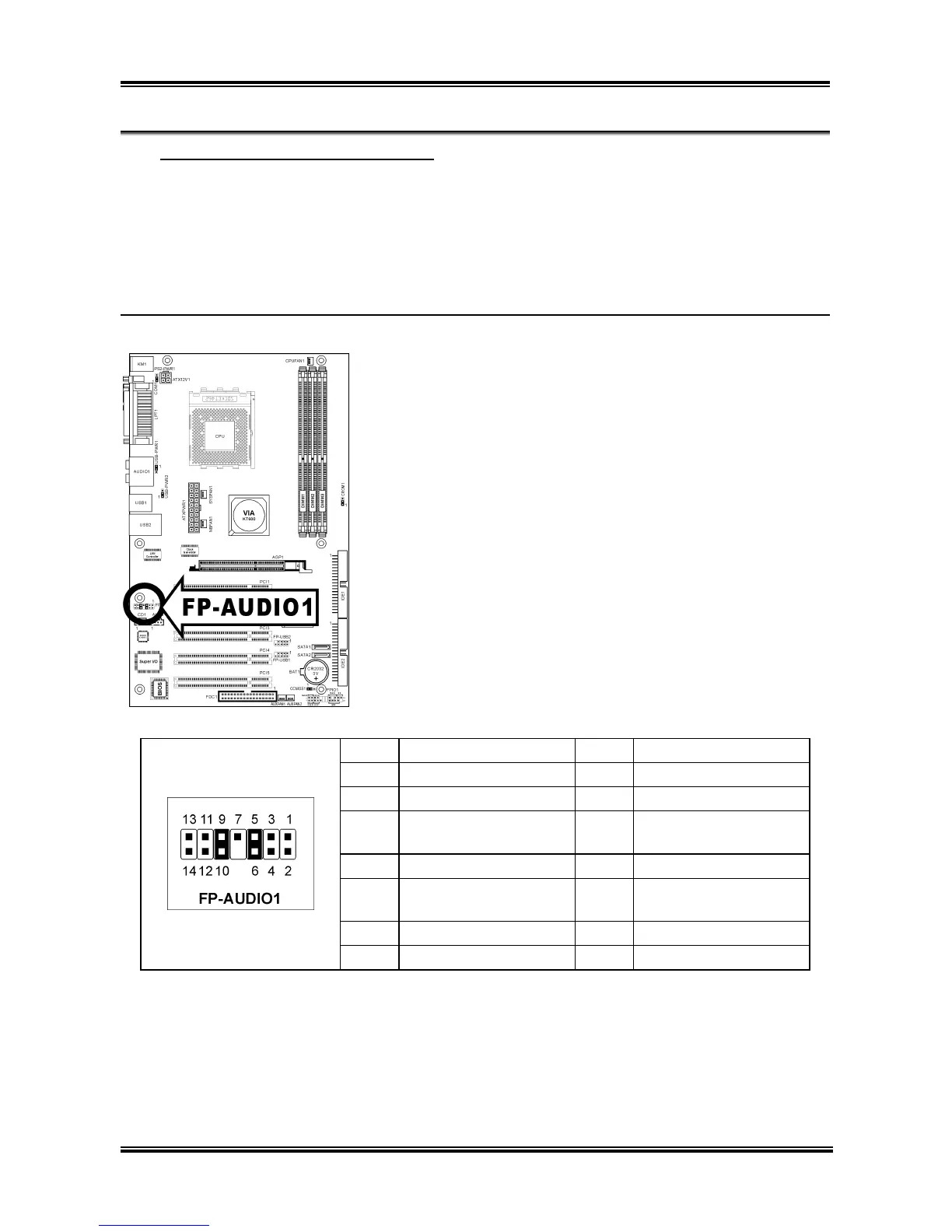

(8). Front Panel Audio Connection Header
This header provides the connection to audio connector at front panel.
• To use the audio connector at front panel, remove all the jumpers on this header, and then
connect to front panel by the extenson cable provided with the chassis.
• To use the audio connector at rear panel, disconnect the extension cable, attach the jumpers back
at pin 5-6, and pin 9-10 (default setting).
KV7:
Pin Pin Assignment Pin Pin Assignment
1 Audio Mic. 2 Ground
3 Audio Mic. Bias 4 VCC
5
Speaker Out Right
Channel
6
Speaker Out Right
Channel Return
7 X 8 NC
9
Speaker Out Left
Channel
10
Speaker Out Left
Channel Return
11 Ground 12 S/PDIF In
13 VCC 14 S/PDIF Out
