3-14 Chapter 3

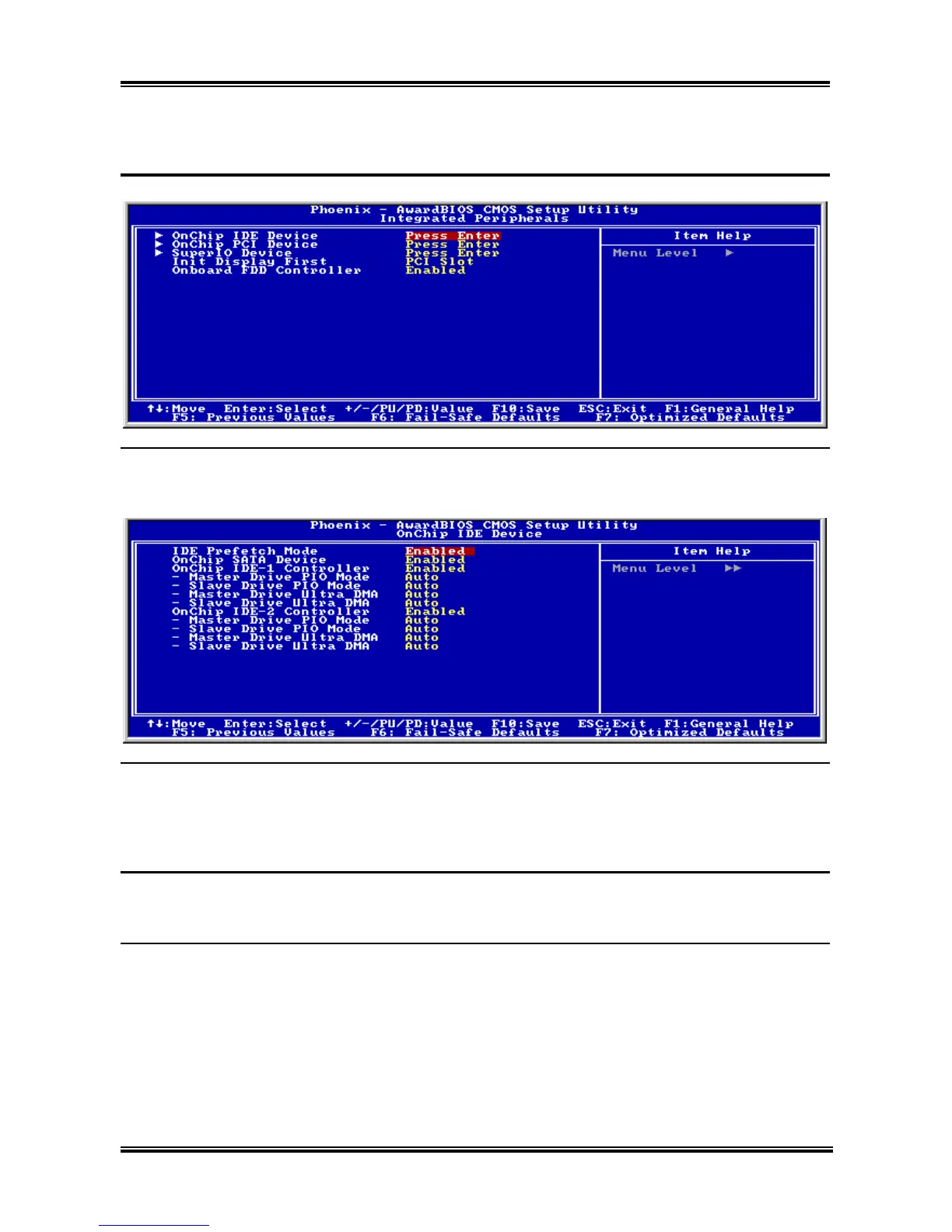

3-5. Integrated Peripherals
OnChip IDE Device:
Click <Enter> key to enter its submenu:
IDE Prefetch Mode:
Two options are available: Disabled or Enabled. The default setting is Enabled. The onboard IDE drive
interfaces supports IDE prefetching for faster drive accesses. If you install a primary and/or secondary
add-in IDE interface, set this field to Disabled if the interface does not support prefetching.
OnChip SATA Device:
This option enables or disables the OnChip SATA controller.
OnChip IDE-1 Controller:
This item allows you to enable or disable the primary and secondary IDE controller. Select [Disabled] if
you want to add a different hard drive controller.
Master/Slave Drive PIO Mode
The PIO (Programmed Input/Output) mode allows the BIOS to tell the controller what it wants and then
let the controller and the CPU perform the complete task, rather than having the BIOS issue a series of
commands to affect a transfer to or from the disk drive.
KV7 Series
